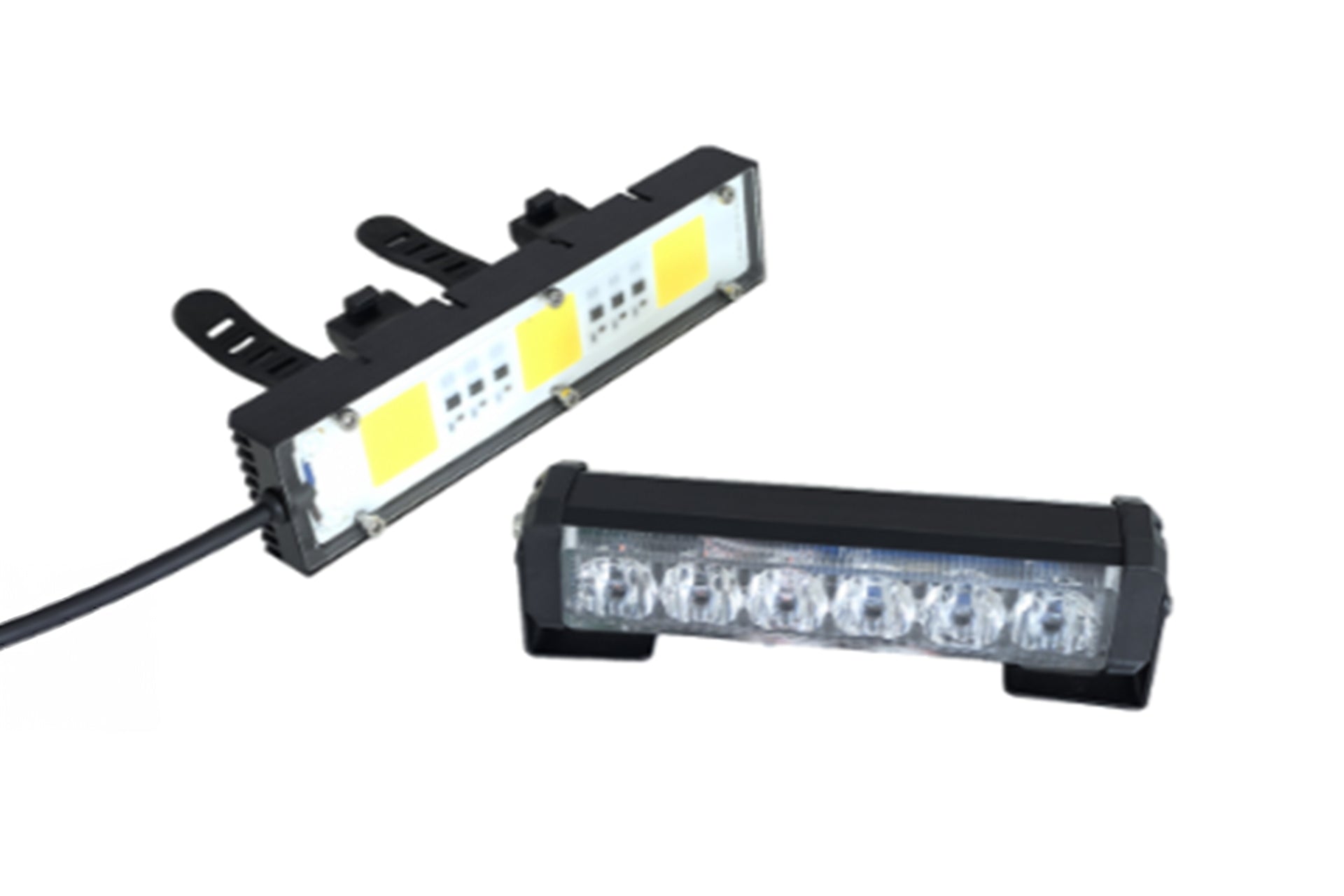

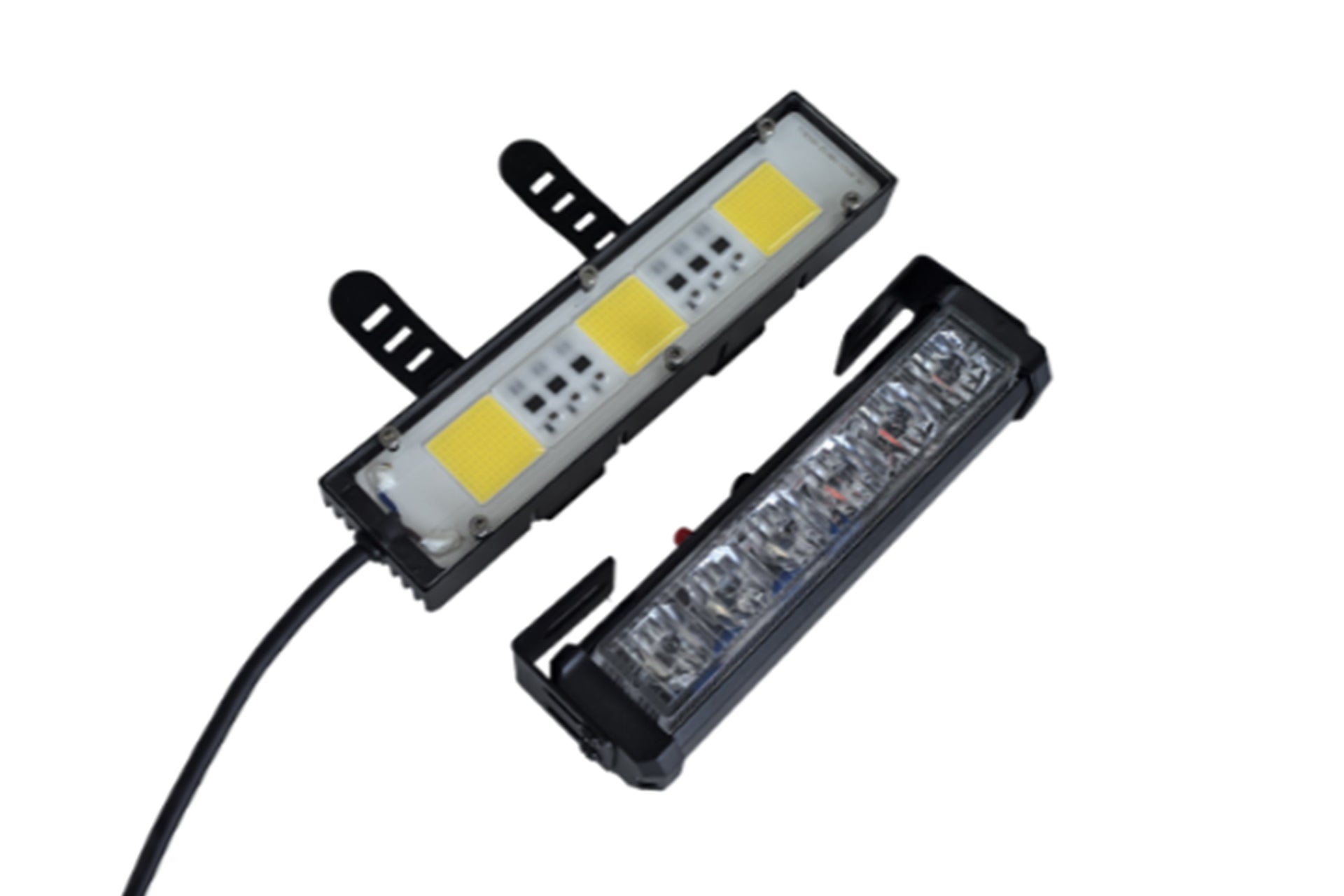

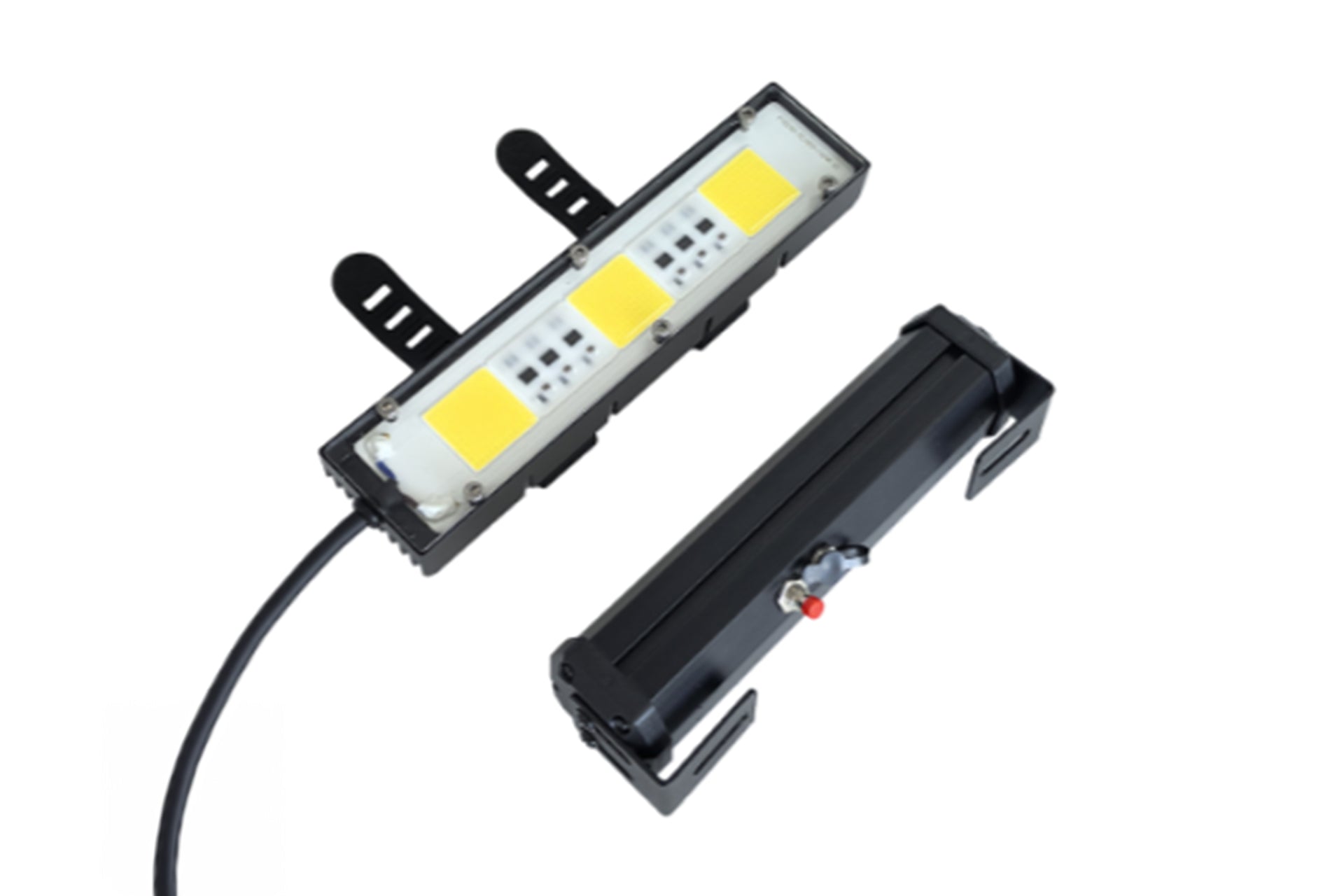

AF-L1000 UAV Night Rescue Lighting
1. Introduction
The AF-L1000 is a high-performance lighting lamp designed for UAV night rescue operations. It provides 20,000 lumens brightness, integrated red/blue strobe lights, and lightweight construction, making it ideal for tethered UAVs and emergency scenarios.
2. Key Features
- Power Supply Compatibility: Supports 45-52V DC input, suitable for multiple UAV systems.
- High Brightness: Produces 20,000 lumens of illumination for wide-range aerial lighting.
- Red/Blue Strobe: Built-in strobe lights for marking, alert, and rescue operations.
- Lightweight & Low Power: Weighs only 420g and consumes 150W for efficient UAV operation.
- Easy Installation: Equipped with M4 heatsink bracket, allowing parallel installation and rapid deployment.
- Plug & Play Operation: Immediate activation when connected to power, no additional configuration required.
3. Technical Parameters
| Item | Specification | Remarks |
|---|---|---|
| Model | AF-L1000 | UAV Night Rescue Lighting |
| Weight | 420 g | Lightweight for UAV mounting |
| Dimensions | 190mm × 98mm × 42mm | Length × Width × Height |
| Power | 150W | Low-power consumption |
| Input Voltage | 45-52V DC | Compatible with tethered UAV systems |
| Current | 3-3.2A | |
| Operating Mode | Plug & Play | Immediate activation |
| LED Type | COB | |
| Luminous Flux | 20,000 lm | |
| Strobe Light | Red/Blue | Emergency and marking |

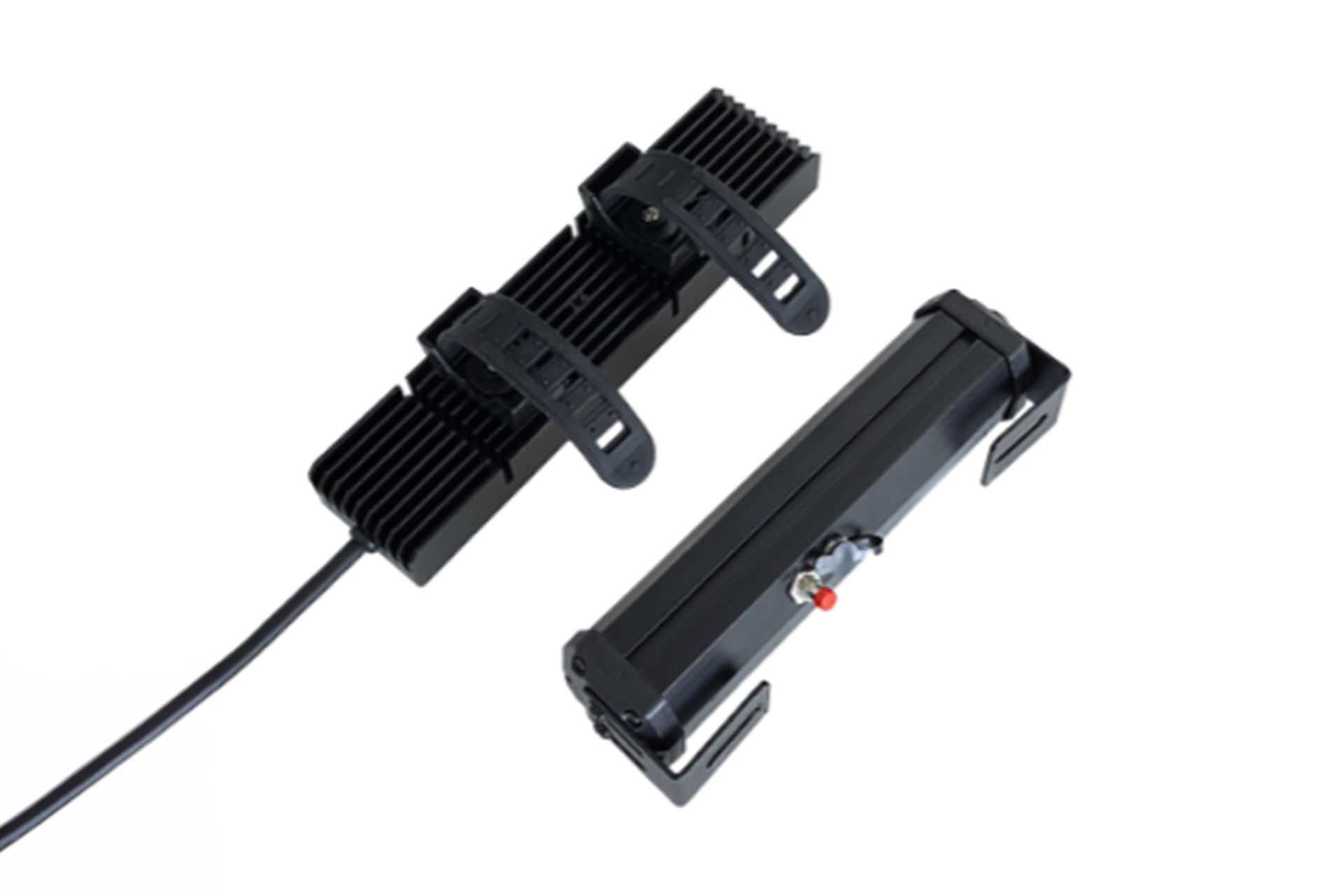

| Mounting Interface | M4 Heatsink Bracket | Supports parallel installation |
4. Operation Instructions
- Power On: Connect to power, and the AF-L1000 lights up immediately.
- Strobe Function: Red/blue strobe lights provide marking and alert capability for night rescue operations.
- Installation: Use the M4 heatsink bracket for mounting. Multiple units can be installed in parallel to extend coverage.
5. FAQ
- What is the input voltage of AF-L1000?
- The AF-L1000 supports 45-52V DC input, compatible with tethered UAV systems.
- Which UAVs are compatible with AF-L1000?
- It is mainly designed for tethered UAVs for night rescue and emergency operations.
- What is the weight of the AF-L1000?
- The lamp weighs only 420 grams, making it easy to install on UAVs.
- How do I install the AF-L1000?
- Use the M4 heatsink bracket. Multiple lamps can be mounted in parallel to extend lighting coverage.
