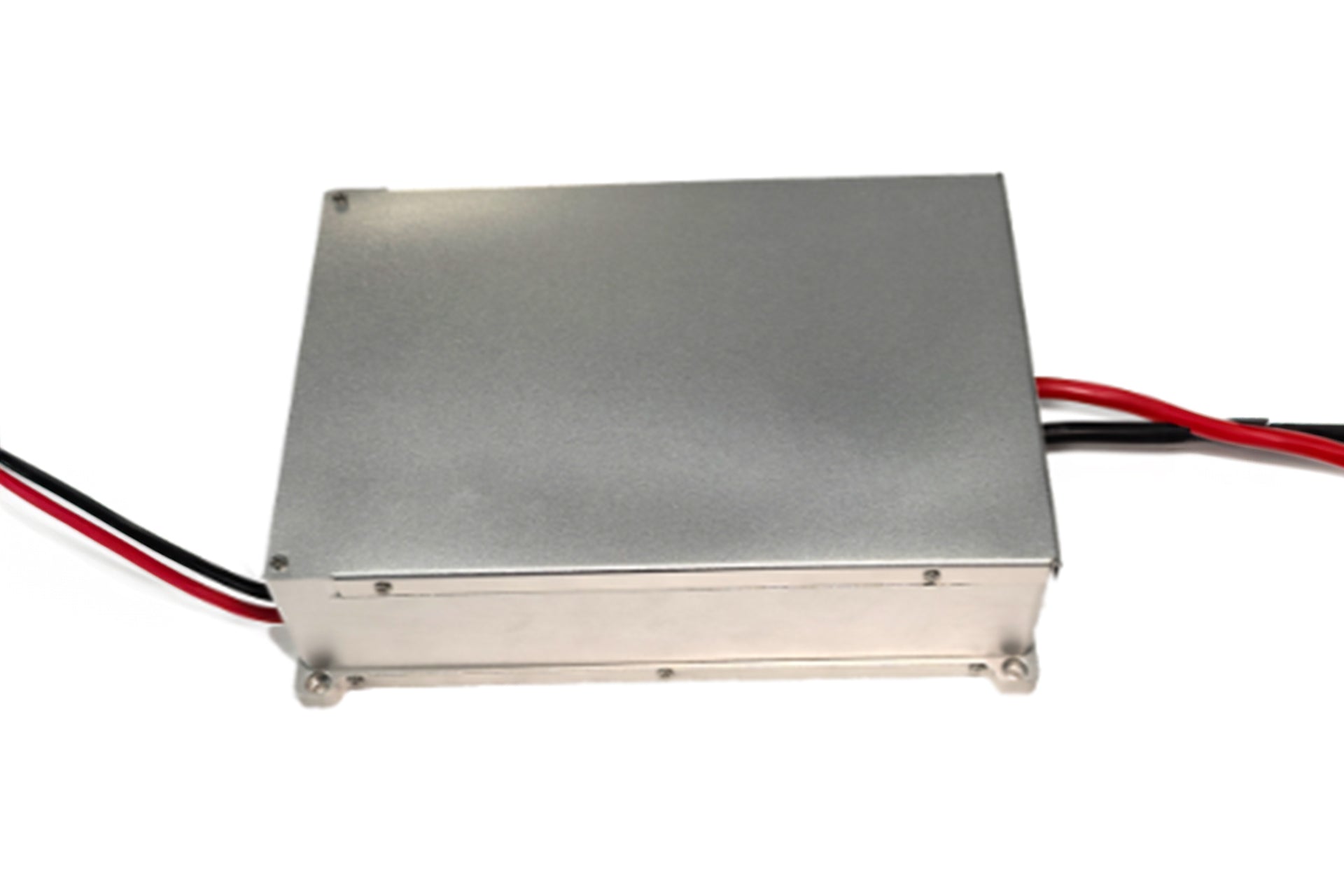

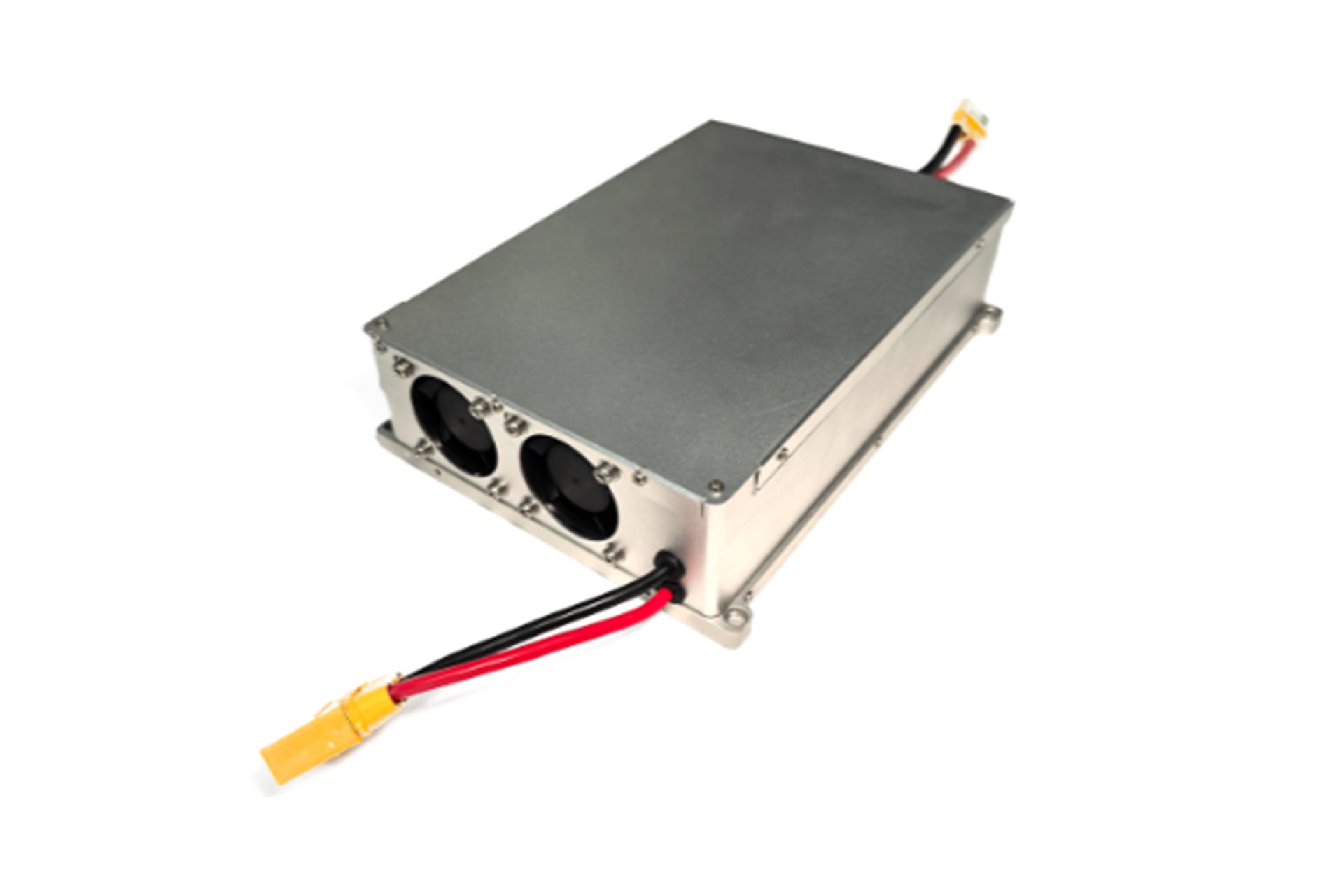

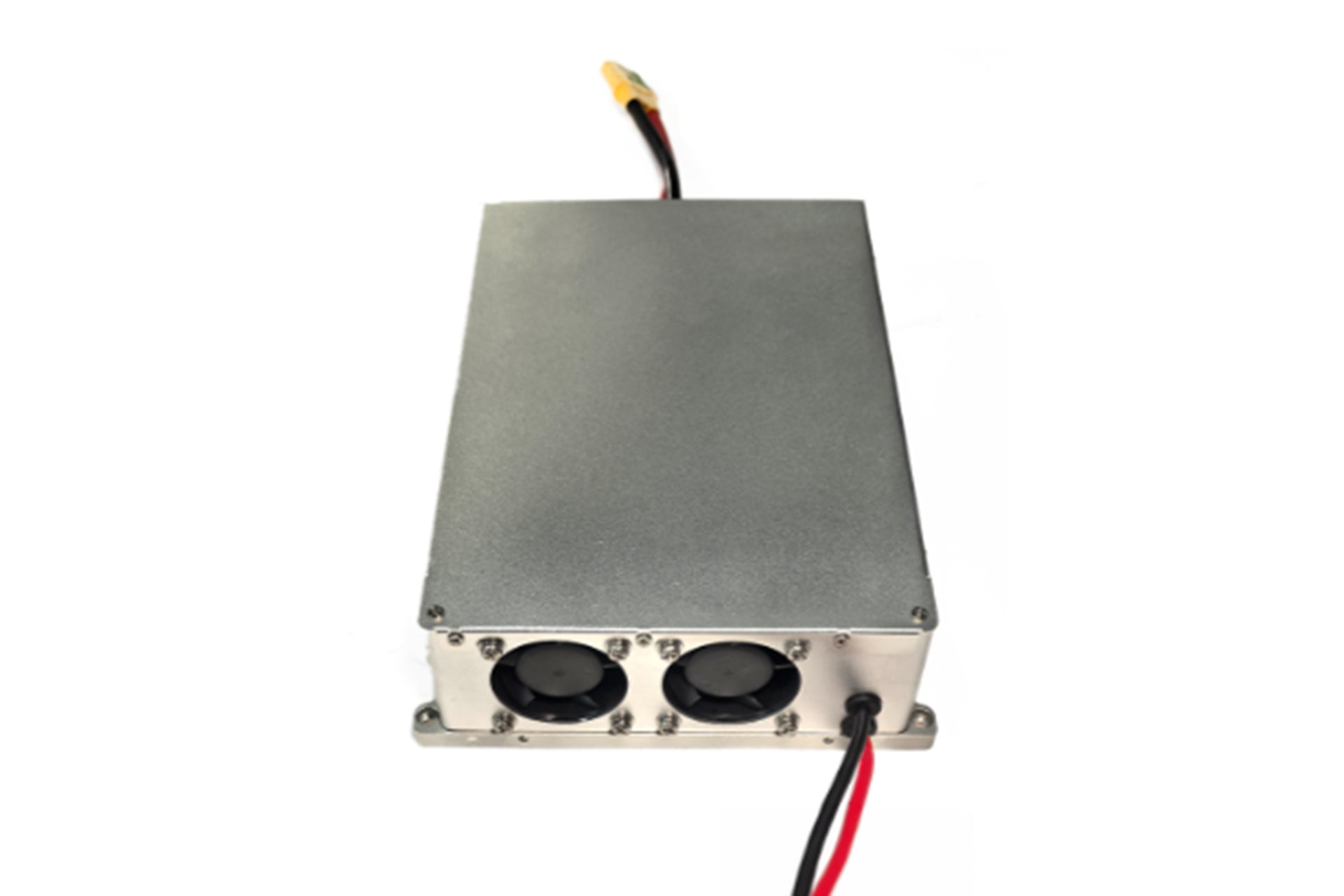

AF-400S48-5K Power Battery
Details

Overview

  1. The power supply features small size, low noise, and water resistance;
  2. It has a long service life, fast dynamic response, and high efficiency;
  3. Seamless switching with the battery, without any voltage drop;
  4. The power supply adopts a highly reliable modular design;
  5. Widely used as a power supply for tethered UAVs and a power supply for H-controlled DC motors;

Functional Description

This document is the specification for the power supply CD390D4000-4815. The input range is 360-410Vdc, and the output is 44Vdc-51.2Vdc/70A, 44Vdc-51.2Vdc/2A, 15V/1.2A; the rated power is 3200W, and the transient power is 5000W; the power supply is equipped with output overcurrent protection, output short-circuit protection, output overvoltage protection, and overtemperature protection functions.

Operating Environment

Item Minimum Value Typical Value Maximum Value Unit Remarks/Conditions
Operating Temperature -40 - +55 Forced Air Cooling
Storage Temperature -55 25 +105
Relative Humidity 5 - 95 % No Condensation
Storage Humidity 5 - 95 % No Condensation
Atmospheric Pressure 54 - 106 kPa
Altitude - - 5000 m
Protection Level IP55

Basic Input Characteristics

Item Minimum Value Typical Value Maximum Value Unit Remarks/Conditions
Input Voltage Range 360 390 410 Vdc Normal Full-Load Operation at 280VDC-410VDC
Maximum Limit Input Voltage 420 450 Vdc The power supply will not be damaged under this condition
Maximum Input Current - - 16 A Vin=260Vdc, Output Rated Load
Input Inrush Current - - 70 A Vin=410Vdc, Output Full Load
Power-On Startup 360 390 410 V Startup with Half Load of Rated Power or Lower

Basic Output Characteristics

Item Minimum Value Typical Value Maximum Value Unit Remarks/Conditions
OUT1 Output Voltage Range 44 48 52.2 Vdc
OUT2 Output Voltage Range 14.7 15 15.3 Vdc
OUT3 Output Voltage Range 44 48 52.2 Vdc
OUT2 Load Regulation ±1 %
OUT1 Load Regulation - - ±15 %
OUT3 Load Regulation - - ±15 %
Efficiency 95 97.5 98 % Input: 390-410Vdc, Output Full Load
Output Ripple and Noise - 110 280 mVp-p 20MHz Bandwidth Limitation
OUT1 Output Current - - 80 A
OUT3 Output Current - - 3 A
OUT2 Output Current - 1.2 1.5 A Within Normal Operating Range
OUT1 Output Overvoltage Protection 56 V
Output Voltage Overshoot Amplitude - - ±5 %
Transient Response - Overshoot Amplitude - - ±5 % Ta=25℃, 50%-75%-50% Load Step Change, di/dt=0.1A/µs
Transient Response - Recovery Time - - 200 µs
Temperature Coefficient - - ±0.02 %/℃

Protection Characteristics

Item Minimum Value Typical Value Maximum Value Unit Remarks/Conditions
Input Undervoltage Protection 200 226 250 V Self-Recoverable
Input Overvoltage Protection 420 436 450 V
Output Overcurrent Protection 150 A Hiccup Mode, Self-Recoverable
Output Short-Circuit Protection Yes Hiccup Mode, Self-Recoverable
Overtemperature Protection Function Yes Self-Recoverable
Power Supply Parallel Operation Parallel Current Sharing, Redundancy Function

Other Specifications

Item Requirement Remarks
Three-Prevention Design PCB Coated with Three-Prevention Paint
Heat Dissipation Forced Air Cooling
MTBF ≥100K H
Overall Weight ≤1.7kg
Power Supply Indicator 3 Green LEDs Stay On During Operation, Off Otherwise

Safety Characteristics

Item Level Standard (or Test Condition)
Insulation Withstand Voltage - Input to Output 2500 Vac No Breakdown, No Flashover; Test Condition: 5mA/min, Rise Rate 500V/s
Insulation Withstand Voltage - Input to Earth 1500 Vac
Insulation Withstand Voltage - Output to Earth 500 Vdc
Insulation Resistance - Input to Output ≥50 Test Voltage: 500Vdc Under Normal Atmospheric Pressure, Relative Humidity 90%
Insulation Resistance - Input to Cabinet ≥50
Insulation Resistance - Output to Cabinet ≥50

EMC Characteristics

Item Level (Standard) Remarks (Index Requirement)
Surge IEC/EN61000-4-5 Criterion See Note 1) A, Input Differential Mode: ±2kV, Common Mode: ±4kV
EFT IEC61000-4-4 LEVEL 4 Line-to-Line ±3KV, Line-to-Earth ±4KV; Criterion See Note B; Both Input and Output Need to Meet the Requirement
ESD GB/T 17626.2-2006 Contact Discharge: ±6KV, Air Discharge: ±8KV; Criterion See Note B
Conducted Emission (CE) EN55022 With EMC Filter, Class A
Radiated Emission (RE) EN55022 With EMC Filter, Class A

Structure and installation dimensions

User Instructions

Please make sure to read the Warnings and Cautions section before using the product. Improper operation may cause damage to the power supply or accidents.
