Application Scenarios

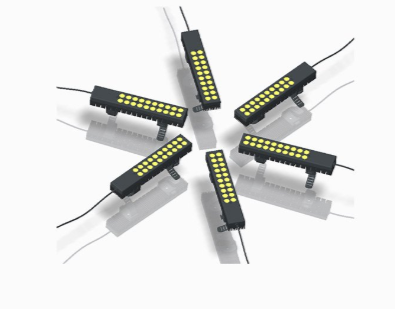

This lighting lamp is mainly used for nighttime lighting of unmanned aerial vehicles (UAVs), especially for continuous lighting of tethered UAVs.
Product Advantages
- Wide input voltage range of 20~65Vdc.
- It stays on continuously when powered on, with automatic temperature control detection to prevent lamp bead burnout.
- Lightweight, high luminous flux, and low power consumption.

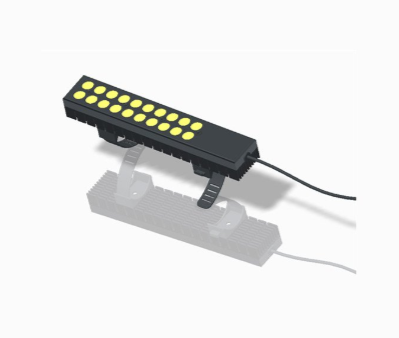

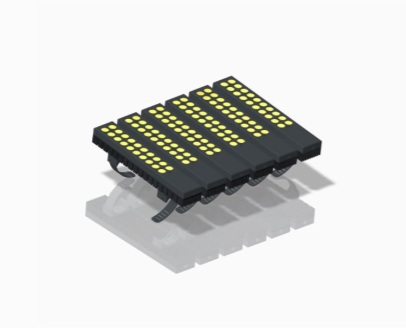

- The heat sink is equipped with an M4 base, allowing unlimited parallel connection of additional lamps.
Notes
- Customers can independently design the automatic switch for the device; the use of a relay is recommended (the product does not include relays or other accessories).
- If connecting to DJI-series intelligent batteries, disconnect the main lamp wire connector first when turning off the lamp. This prevents failure to shut down the intelligent battery and potential battery damage, for which the user shall bear full responsibility.
| Serial Number | Item | Parameter | Remarks |
|---|---|---|---|
| 1 | Model | AF-L100 | |
| 2 | Weight | 200g | Excluding straps and wires |
| 3 | Dimension | 200mm35mm25mm | LengthWidthHeight |
| 4 | Power | 80W | Sufficient heat dissipation; full-load power is 80W |
| 5 | Input Power Supply | 20~65Vdc | |
| 6 | Current | 1.3~4A | |
| 7 | Automatic Temperature Protection Threshold | 60℃ | Power is reduced at 60~79℃; LED lamp turns off when temperature exceeds 85℃ |
| 8 | Operating Mode | Lights up immediately after power-on | Optional control wire is available |
| 9 | LED Lamp Bead | CREE | |
| 10 | Luminous Flux | 10000lm | Calculated value; not actually tested |
| 11 | Binding Arm Diameter |
