AF-G2-J60M Mooring Winch | High-Performance UAV Accessory for Lightning Protection and Blade Inspection

Regular price $1,765.00

AF-G2-J60M

  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • JCB
  • Maestro
  • Mastercard
  • PayPal
  • Union Pay
  • Visa
Specifications
AF-G2-J60M Mooring Winch | High-Performance UAV Accessory for Lightning Protection and Blade Inspection
Details

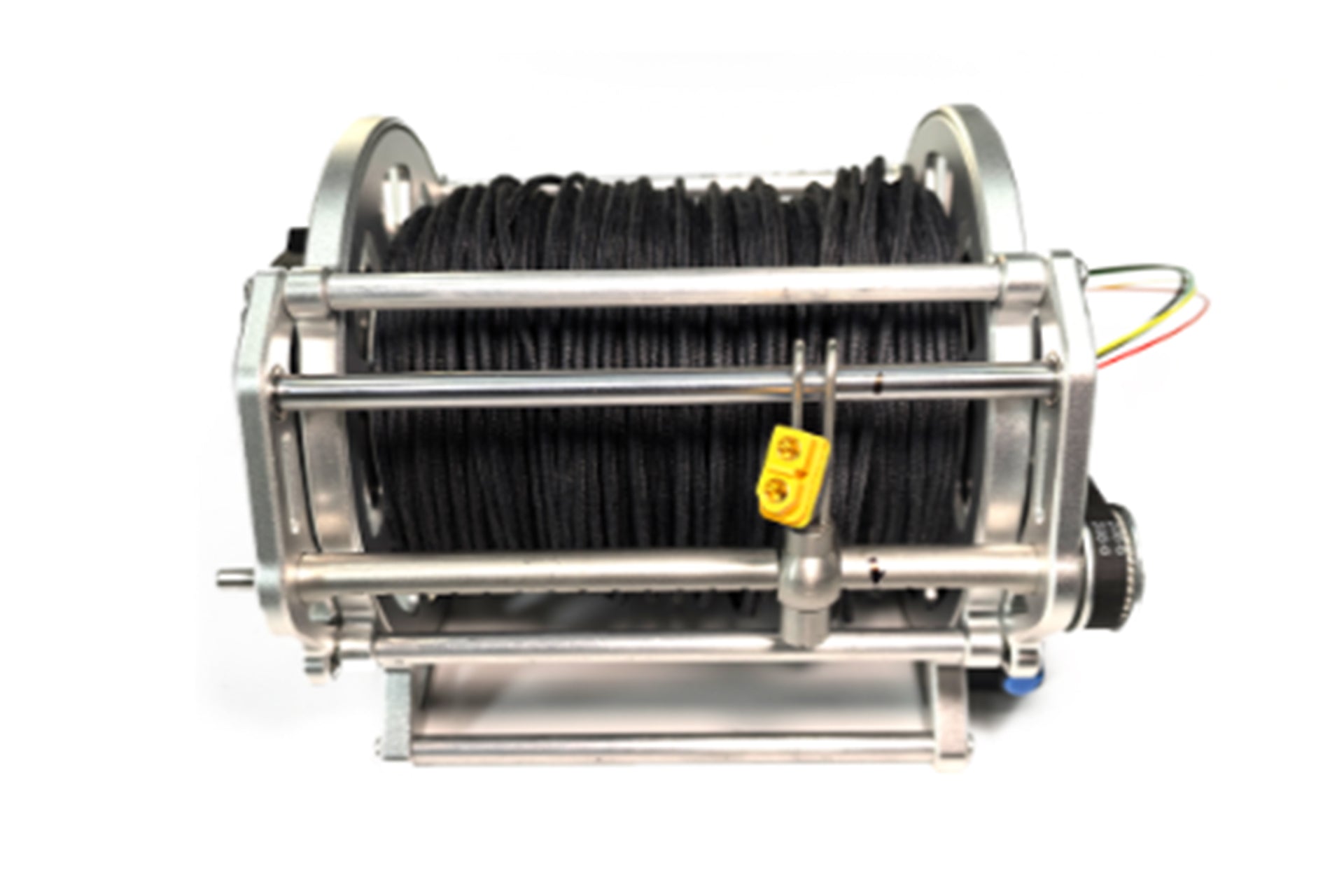

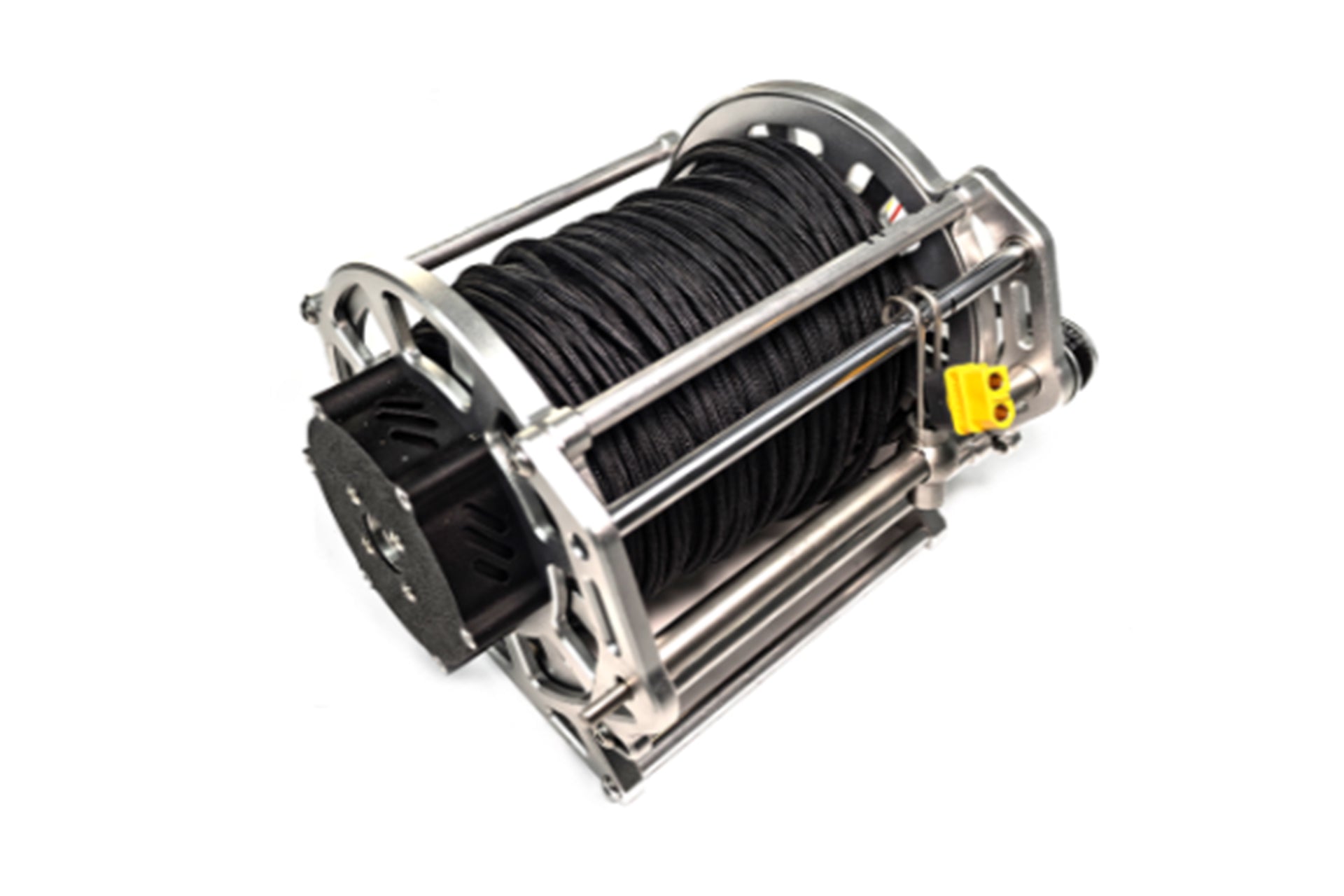

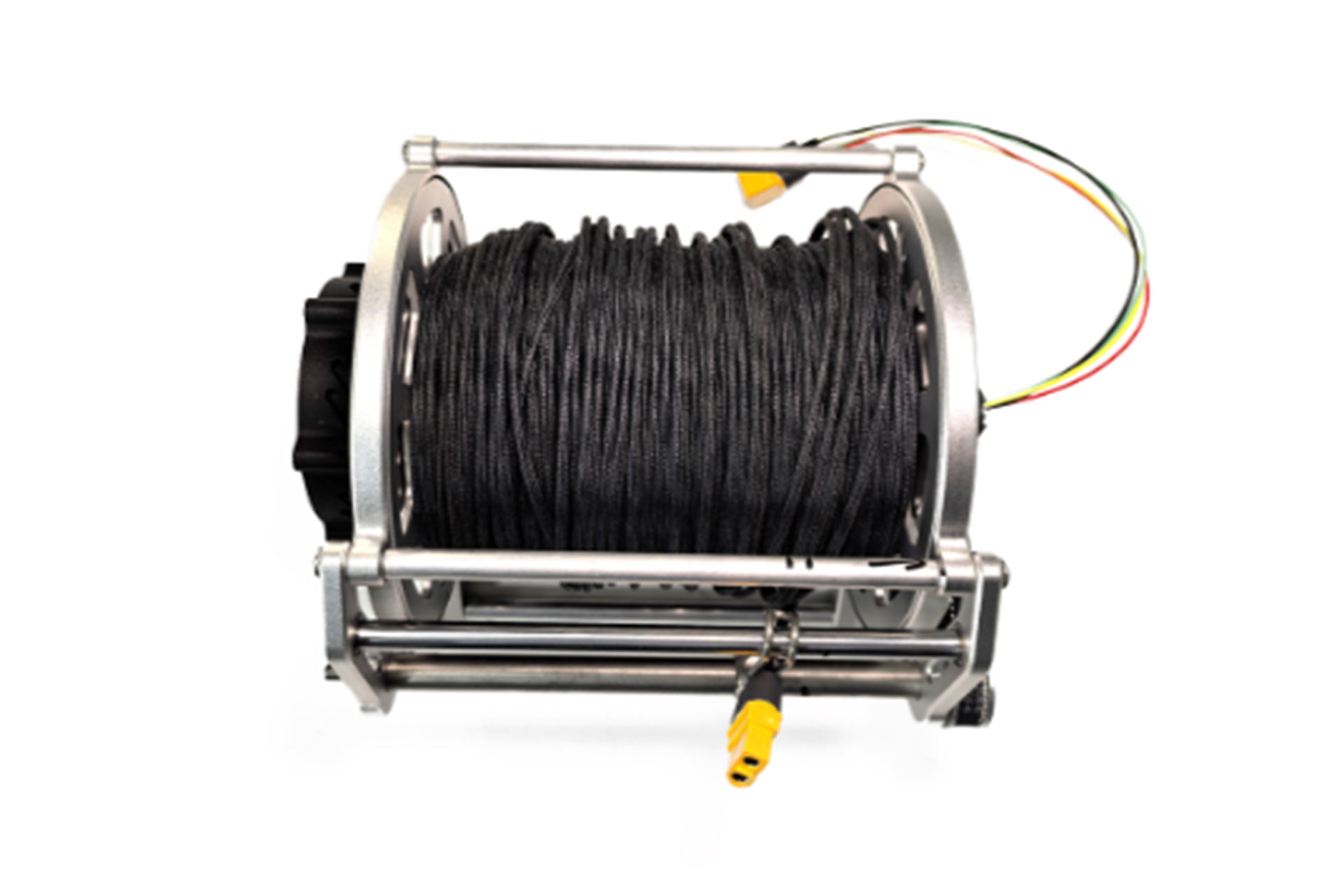

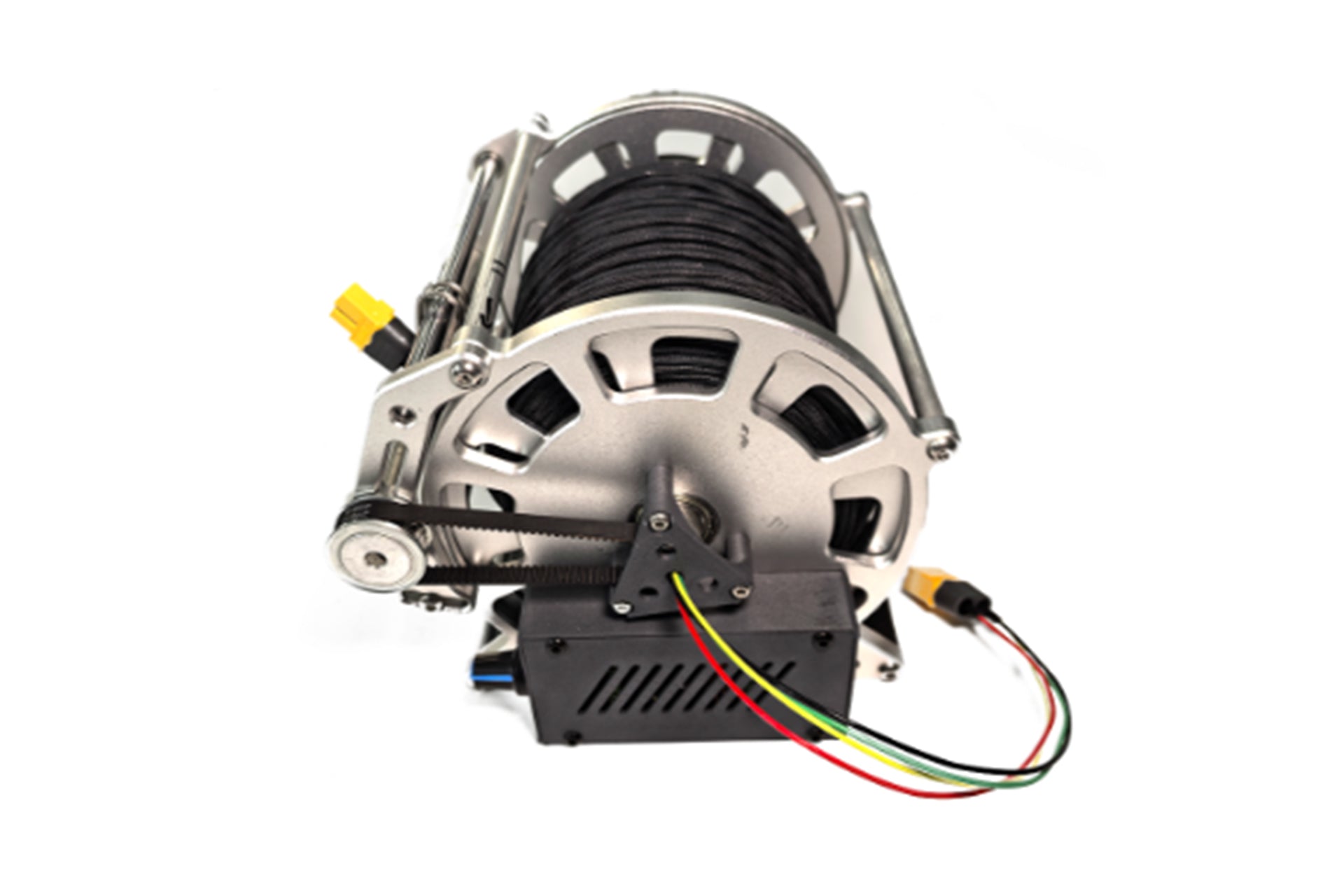

AF-G2-J60M Mooring Winch | High-Performance UAV Accessory

Product Overview:

The AF-G2-J60M Mooring Winch is designed for professional UAV applications such as wind turbine blade inspection and lightning protection. Compatible with heavy-duty drones like DJI M350 RTK, this winch provides a reliable solution for testing blade conductivity and measuring resistance.

Key Features:

  • Automatic retractable winch for precise cable control
  • Compatible with DJI M350 RTK and DJI M300 RTK drones
  • Customizable torque up to 660N
  • Compact and durable design suitable for field operations
  • High reliability in harsh environments

Specifications:

Item Parameter Notes
Model AF-J70 Default 70-meter cable
Weight 2020g ±5g Including 70-meter cable
Dimensions 210×190×170mm Length×Width×Height
Input Power 24V DC
Current 2-3A Customizable with in-series optical fiber
Working Mode Ready once powered on
Torque Adjustable via knob Maximum 660N

Copper Mesh Accessory:

  • Model: AF-TW
  • Weight: 520g ±5g
  • Dimensions: 320×320×53mm, concave copper mesh with damping
  • Maximum retractable length: 70mm
  • Fixing Method: 4 M3×10 screws

Applications:

  • Wind turbine lightning protection
  • Blade conductivity testing
  • Resistance measurement for preventive maintenance

Related Links:

1. Project Background

As the size of wind turbines continues to increase, the probability of being struck by lightning also grows. Lightning strikes may damage the wind turbine's control system, electrical equipment, blades, and generator. It is estimated that lightning strikes account for 80% of wind turbine insurance claims and 60% of total blade losses. On average, each wind turbine suffers blade damage caused by lightning strikes once every 8.4 years. Calculated based on a 20-year service life of a wind turbine, the total number of blade damages caused by lightning strikes ranges from 2 to 3 times.

2. Solution

A DJI M350 RTK (or other UAVs can also be used) equipped with a retractable contact copper mesh flies to the area below the blade tip and makes contact with it. An automatic retractable winch is used, with one end connected to the ground detection instrument and the other end connected to the copper mesh. This setup is used to test whether the blade tip is conducting and to measure the resistance value.

3. Required Equipment

  1. It is recommended to use DJI M350 RTK / DJI M300 RTK
  2. Retractable contact copper mesh
  3. Automatic wire-releasing and wire-retracting winch
  4. Detection instrument

4. Equipment Specifications

Serial No. Item Parameter Remarks
Detection Winch
1 Model AF-J70 Default 70-meter cable
2 Weight 2020g±5g (Including the weight of the 70-meter cable)
3 Dimensions 210*190*170mm Length*Width*Height
5 Input Power Supply 24Vdc
6 Current 2-3A Customizable, with in-series optical fiber
8 Working Mode Ready for use once powered on
9 Torque Adjustable via knob Maximum 660N

2

Copper Mesh
10 Model AF-TW
11 Weight 520g±5g
12 Dimensions 320*320*53mm The top is a concave copper mesh with a diameter of 320mm; built-in damping, maximum retractable length of 70mm
12 Connection Method External interface Can be directly connected to cables
13 Fixing Method 4 M3*10 screws Connected to D
