AF-20 UAV High-Brightness Searchlight
1. Introduction

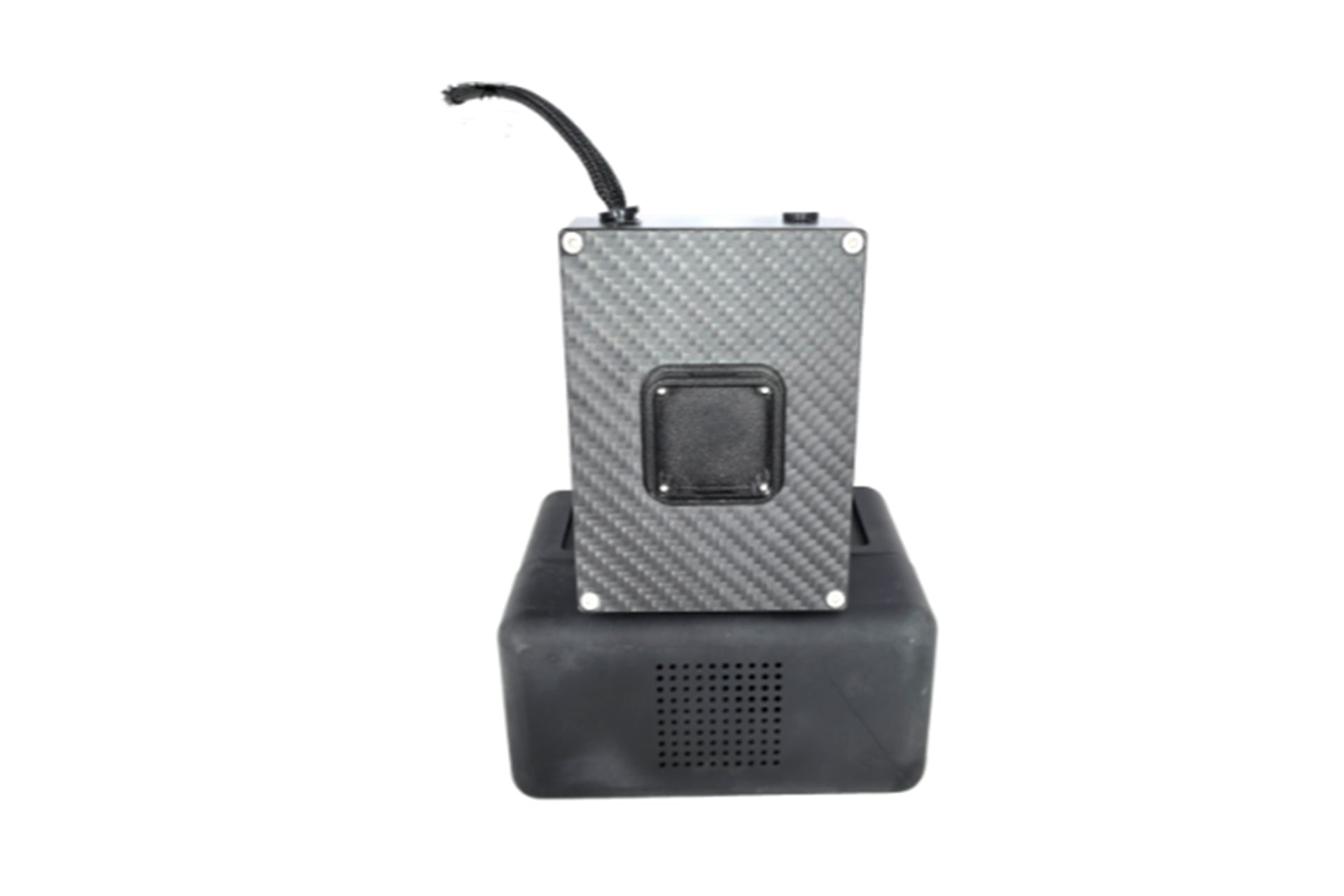

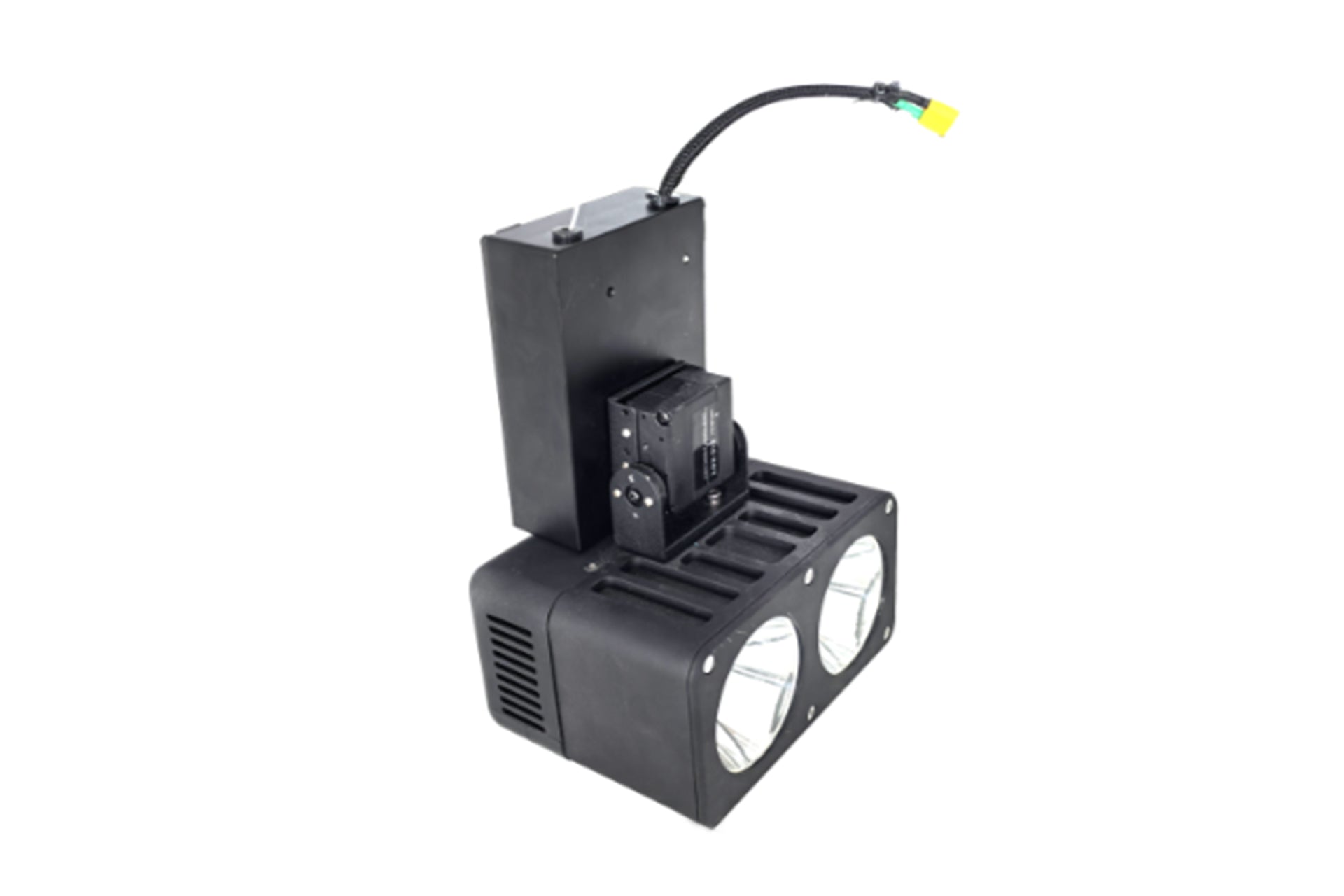

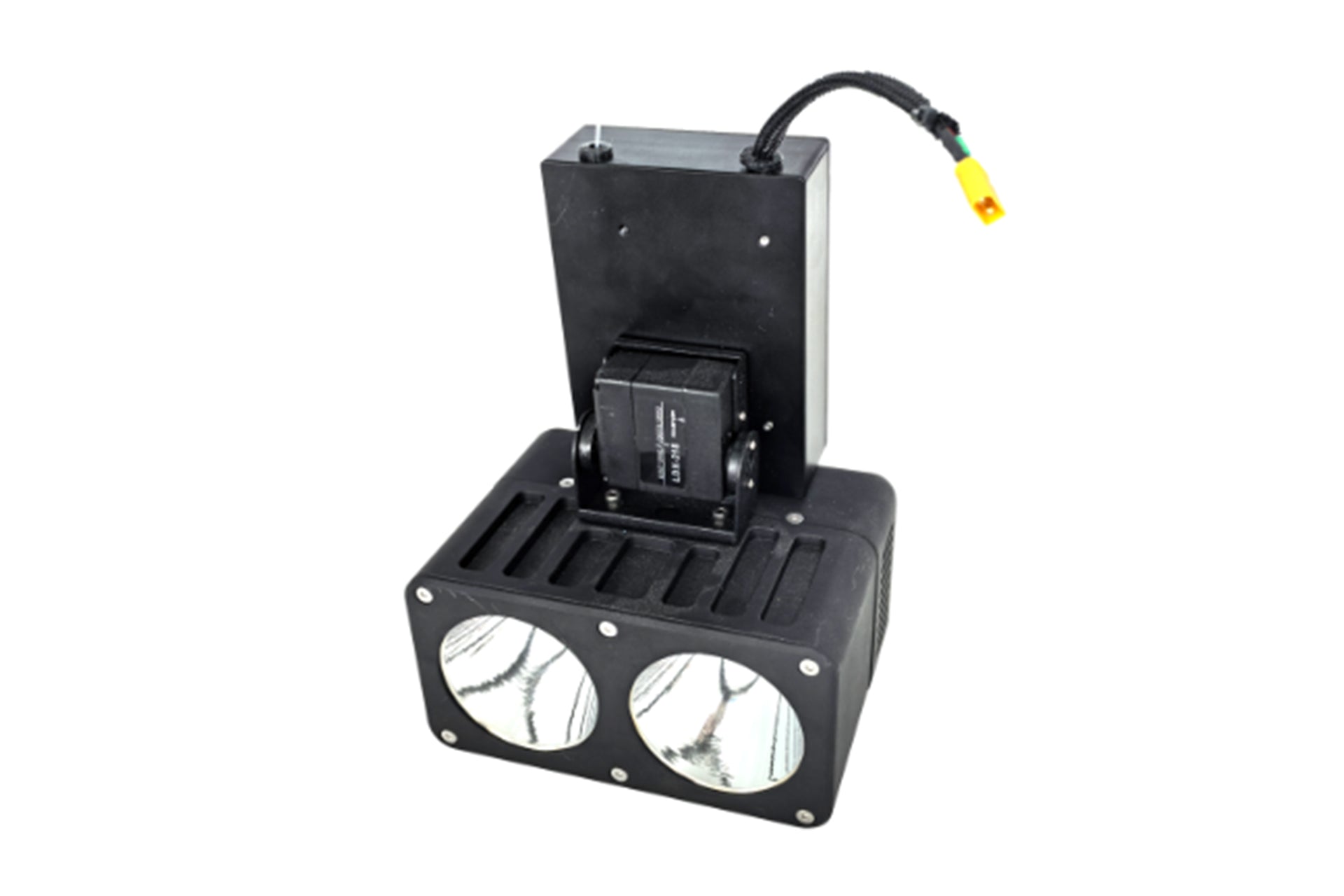

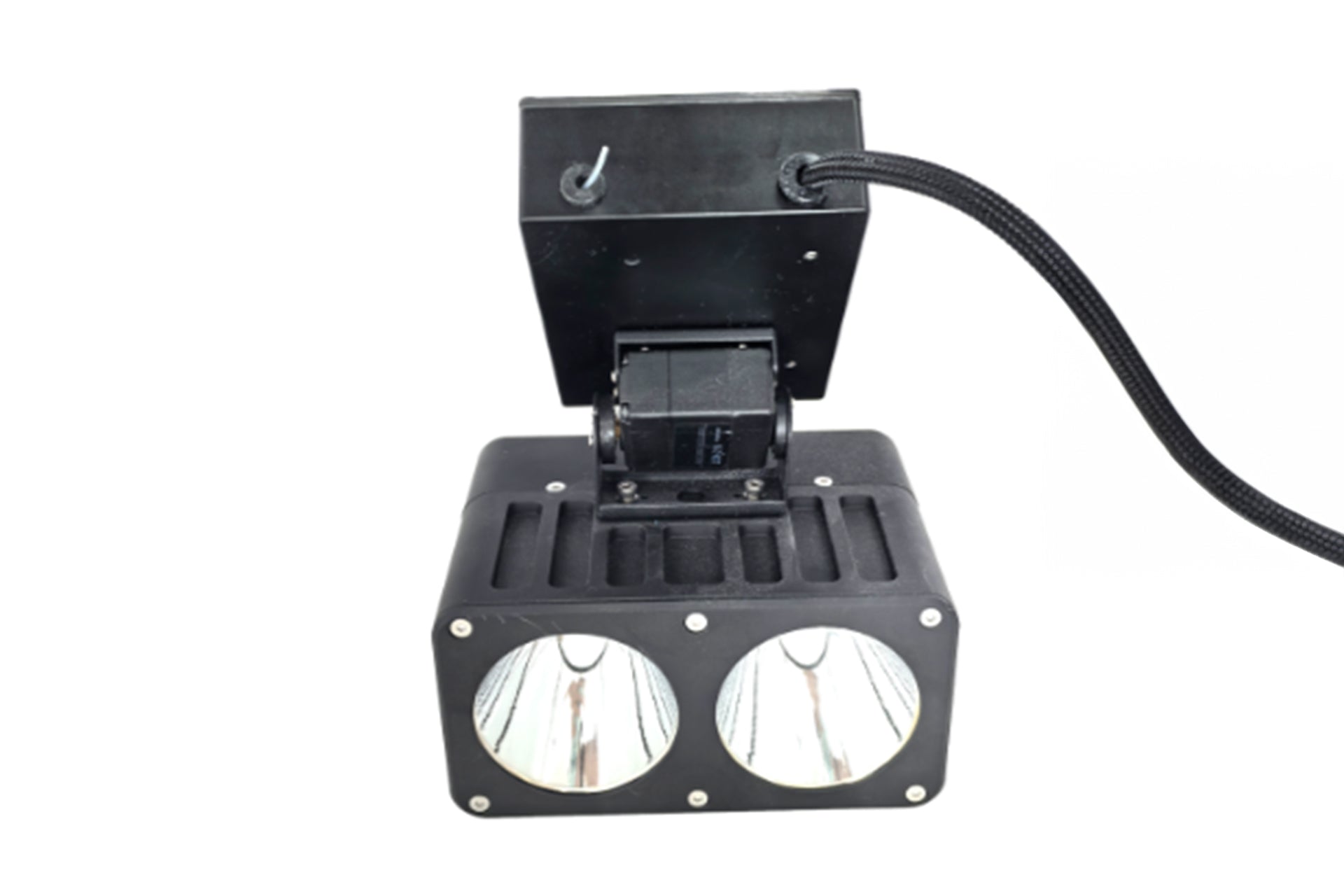

The AF-20 is a high-brightness lighting lamp specially designed for UAV (Unmanned Aerial Vehicle) onboard applications. It features adjustable angle, high brightness, and compact size, making it particularly suitable for tethered UAVs.
2. Function Introduction
- Power Supply Compatibility: Supports 12S tethered power supply, adapting to multiple application scenarios with simplified operation.
- High Brightness: Equipped with high-brightness lamp beads delivering 30,000 lumens, enabling wide-range aerial lighting.
- Efficient Heat Dissipation: Integrated heat sink and high-airflow cooling fan ensure long-term stable operation.
- Flexible Control: Adjustable lighting angle and controllable lamp beads. Can be operated via optional remote controller or through PWM interface on the flight controller.
- Quick Disassembly: Quick-release interface allows one-click installation and removal from the UAV.
3. Technical Parameters
| Serial Number | Item | Parameter | Remarks |
|---|---|---|---|
| 1 | Model | AF-20 | UAV Searchlight |
| 2 | Weight | 1300g | |
| 3 | Dimension | 150mm x 150mm x 140mm | Length * Width * Height |
| 4 | Power | 200W | |
| 5 | Input Power Supply | 12S | |
| 6 | Current | 5A | |
| 7 | Operating Mode | Switch Control | Equipped with a switch handle |
| 8 | Luminous Flux | 30,000 lm | Calculated value |
| 9 | Fixing Method | Quick-Release Component |
4. Operation Instructions
Remote Controller Operation:
- Light Switch Control: Press the Channel 3 button on the independent remote controller to toggle the light on/off.
- Light Tilt Control: Use the up/down direction of the remote controller’s joystick to adjust the light tilt angle. The joystick angle is mapped directly to the light angle.
- Angle Locking: After adjusting the desired angle, press the "OK" button to lock. Fine-tune by toggling joystick up/down after locking.
5. FAQ
- What is the input voltage of the AF-20 searchlight?
- It supports a 12S tethered power supply.
- How bright is the AF-20 lighting?
- The lamp features 30,000 lumens of high-brightness output.
- Can the light angle be adjusted during flight?
- Yes, it can be adjusted via remote controller or PWM interface.
- How do I install the AF-20 on my UAV?
- The lamp has a quick-release interface for one-click installation.
