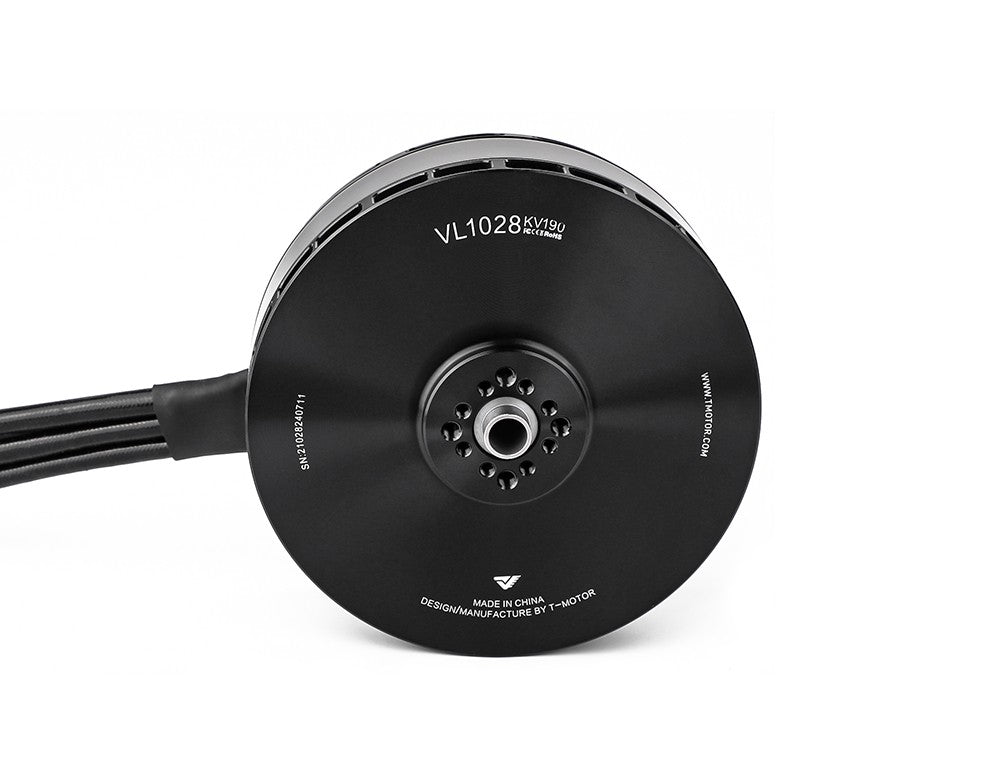

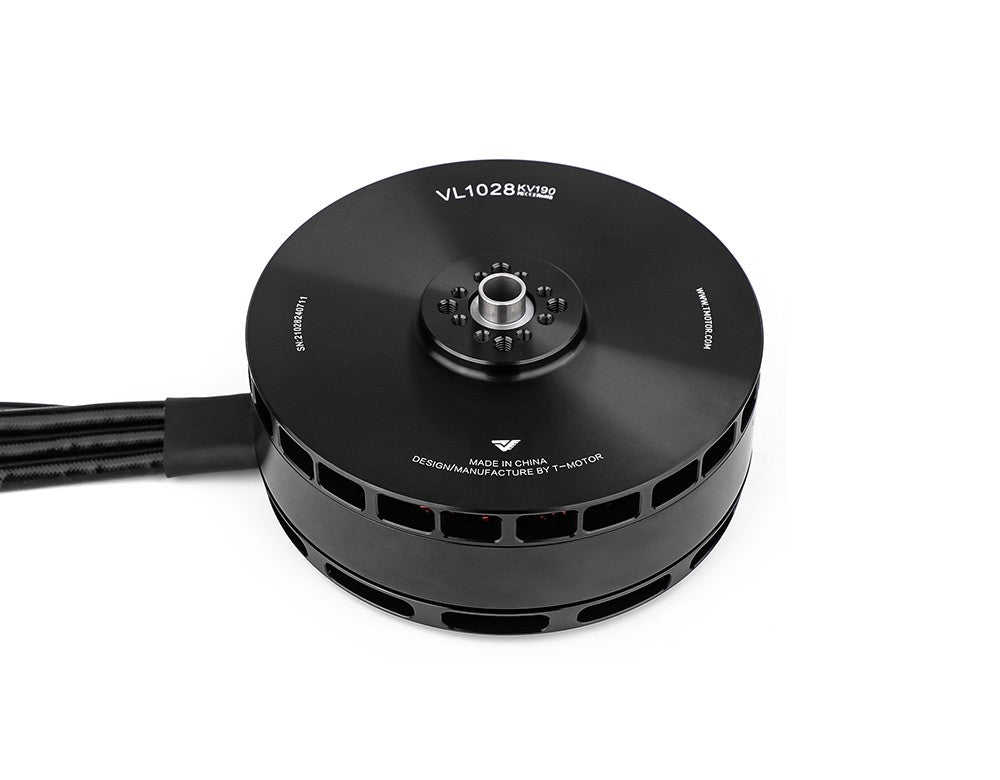

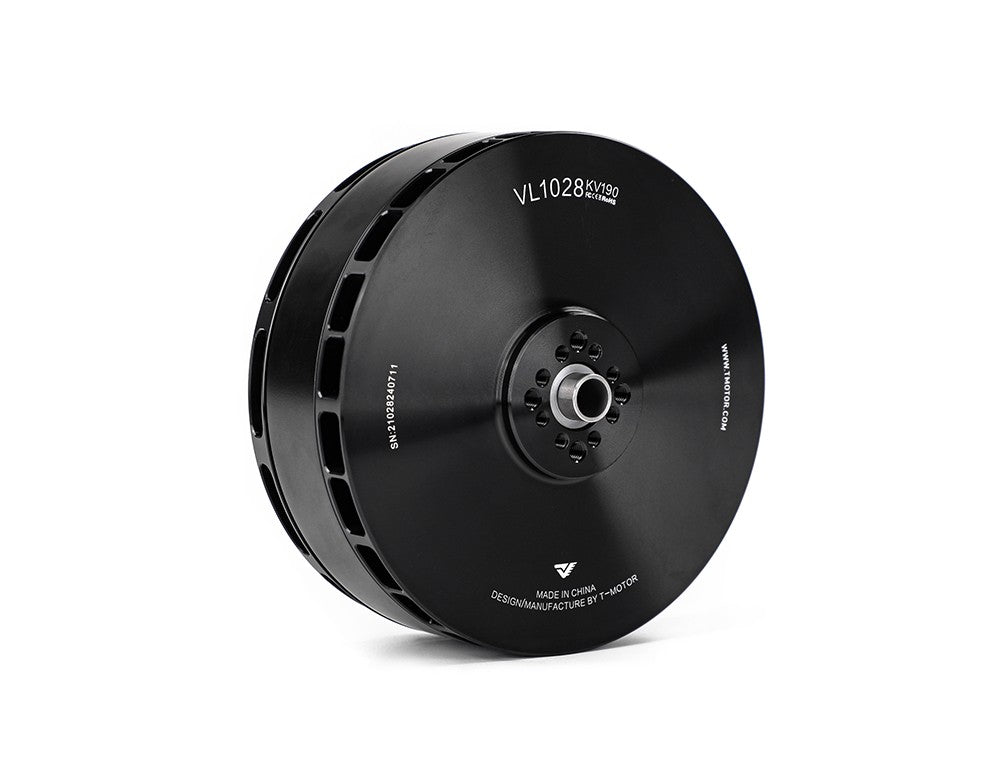

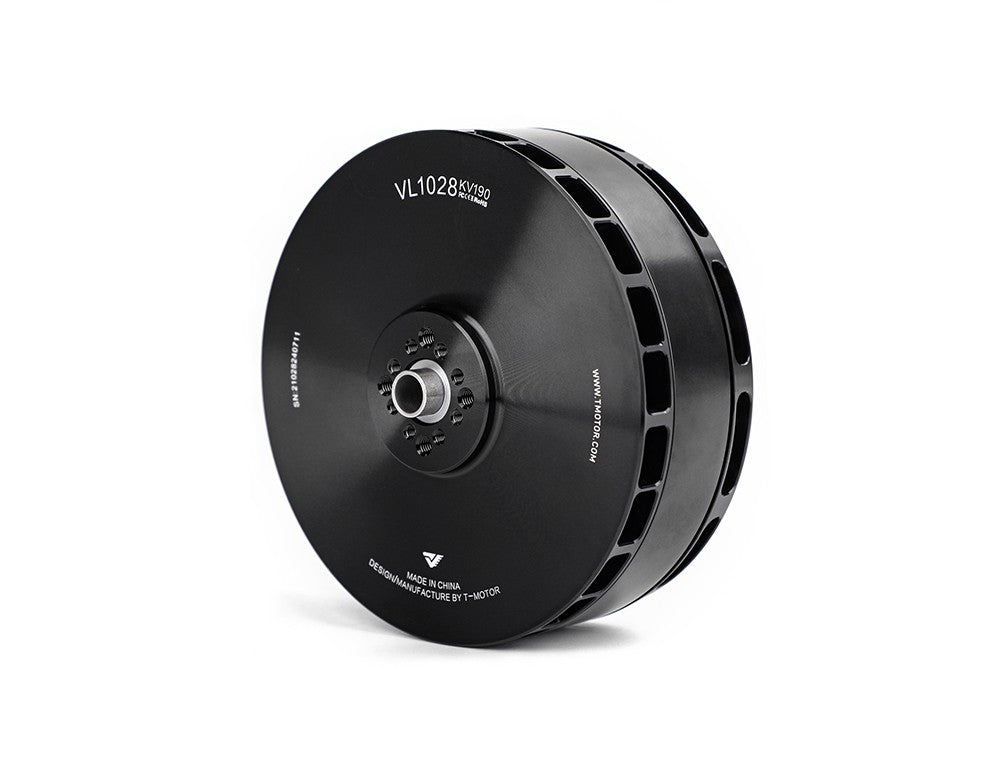

T MOTOR VL1028 KV190 VTOL UAV Motor for 28kg Max Thrust Drones

Regular price $409.00

TMVL1028-M

  • American Express
  • Apple Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa
Specifications
T MOTOR VL1028 KV190 VTOL UAV Motor for 28kg Max Thrust Drones
Details

Fast and economical
propeller locking

Fast (Lock the propeller in seconds)

The 360° custom angle propeller-locking can effectively avoid the turbulence caused by the rotation of the rotor and ensure that the aerodynamic layout of the fixed-wing aircraft is not affected, thereby improving flight safety

Economical (Adaptive propeller locking)

The ESC can automatically adjust the current to control the torque to lock the propeller as per the change of external force, reducing power consumption and heat to achieve energy saving

Specification
Model No. VL1028 Magnet Level 180℃
Motor Size Φ109.6*52.5mm Lead Cable Enameled wire 150mm
Stator 150°C high temperature
-resisting coatings
Copper Wire 220℃
Configuration 24N28P Coil Insulation Test 1000V/5s
Shaft Diameter IN: 12 OUT: 10 Rotor Dynamic Balance Standard ≤15mg
Bearing Imported 6901 IP IPX5
Centrifugal Cooling Design YES Package Size 190*140*80mm
Model No. VL1028 KV (RPM/V) 190
Rated Voltage (LiPo) 12S Idle Current (15V) 3.8A
Internal Resistance(25℃) 8mΩ Peak Current 180A
Continuous Power(180s) 3200W Ambient Temperature -30℃~55℃
Max. Thrust 25.6kg Motor Weight
(indl. Cable)
940g
Test Data
Type Throttle Voltage
(V)
Thrust
(g)
Torque
(N*m)
Current
(A)
RPM Power
(W)
Effciency
(g/W)
Operating
Temperature
(℃)
VL1028 KV190
+
V200A 14S
+
G29*9.5
40% 44.71 5565 1.82 14.61 2743 653 8.52 68
(Ambient
Temperature:
25)
42% 44.67 6080 1.98 16.62 2879 742 8.19
44% 44.64 6664 2.18 18.92 3011 844 7.89
46% 44.61 7279 2.37 21.37 3143 953 7.64
48% 44.59 7893 2.56 24.00 3273 1070 7.37
50% 44.57 8603 2.79 27.01 3398 1204 7.15
52% 44.54 9236 3.01 30.10 3526 1341 6.89
54% 44.51 9881 3.22 33.33 3649 1484 6.66
56% 44.47 10574 3.45 36.82 3768 1637 6.46
58% 44.42 11284 3.68 40.61 3885 1804 6.25
60% 44.36 12071 3.93 44.66 3999 1981 6.09
62% 44.30 12814 4.18 48.95 4107 2168 5.91
64% 44.25 13501 4.40 53.14 4217 2351 5.75
66% 44.18 14222 4.64 57.76 4324 2552 5.57
68% 44.11 14949 4.89 62.59 4430 2761 5.41
70% 44.04 15640 5.14 67.69 4532 2981 5.25
80% 43.74 19280 6.35 96.45 5021 4219 4.57
90% 43.88 22918 7.58 135.09 5466 5928 3.86
100% 43.31 24564 8.13 177.33 5638 7679 3.20
VL1028 KV190
+
V200A 14S
+
G29*9.5
40% 50.25 7075 2.31 18.25 3089 917 7.72 68
(Ambient
Temperature:
25)
42% 50.21 7766 2.54 20.91 3238 1050 7.39
44% 50.16 8472 2.77 23.76 3384 1192 7.11
46% 50.11 9199 3.01 26.89 3532 1348 6.82
48% 50.07 10007 3.27 30.21 3672 1512 6.62
50% 50.02 10786 3.53 33.84 3808 1693 6.37
52% 49.97 11579 3.79 37.76 3944 1887 6.13
54% 49.92 12431 4.07 41.97 4075 2095 5.93
56% 49.85 13296 4.35 46.38 4203 2312 5.75
58% 49.78 14139 4.63 51.02 4330 2540 5.56
60% 49.72 14996 4.91 55.88 4452 2778 5.40
62% 49.65 15826 5.20 60.98 4577 3028 5.23
64% 49.59 16622 5.47 66.30 4693 3288 5.05
66% 49.53 17552 5.77 72.19 4802 3575 4.91
68% 49.46 18445 6.07 78.32 4910 3874 4.76
70% 49.40 19313 6.36 84.64 5016 4181 4.62
80% 49.07 23351 7.74 120.83 5495 5929 3.94
90% 49.21 24306 8.11 152.31 5600 7495 3.24
100% 49.23 25609 8.54 158.17 5735 7787 3.28
