Core Overview
The UP600+ is an industrial-grade dual-channel intelligent charger designed for drones, models, professional photography, fire rescue, surveying, agricultural plant protection, and other fields. Its core design philosophy is "high power, high efficiency, easy operation", aiming to safely and quickly handle high-capacity lithium battery packs, and equipped with professional battery maintenance functions.
Core Technology Advantages
True Dual-Channel High-Power Output
The dual channels can simultaneously process two batteries of different models, capacities, and cell counts without interference, doubling charging efficiency.
Wide Battery Compatibility
Supports 2-6S Lithium Polymer batteries (LiPo) and High Voltage Lithium batteries (LiHV).
Equipped with a dedicated independent charging channel for 2-3S transmitter batteries (one at a time).
Comprehensive Safety Protection
Built-in multiple protections such as over-voltage, over-current, and over-temperature. Deep coordination between hardware and software ensures a stable and reliable charging process.
Usage Recommendations
- For regular use, it is recommended not to exceed the battery's rated charging rate (usually 1C-2C).
- Operate on a ventilated, dry, and fire-resistant surface, away from flammable and explosive materials. Do not leave during charging; always monitor the charger status.
- Please note that the 2-3S balance port on the side can only charge one small battery at a time. Do not insert two batteries simultaneously.
Product Specifications
| Item | Specifications |
|---|---|
| Model | UP600+ Dual-Channel Lithium Battery Intelligent Charger |
| Input Voltage | AC 110V or 220V (Auto-adaptive) |
| Charging Power | 1200W (600W x 2 channels) |
| Discharge Power | 80W (40W x 2 channels) |
| Battery Types | LiPo (Lithium Polymer Battery), LiHV (High Voltage Lithium Battery) |
| Supported Cell Count | Main Channels: 2-6S; Transmitter Channel: 2-3S |
| Charging Current Range | 5A, 10A, 15A, 20A, 25A (per channel) |
| Balance Current | 1.5A / cell (per channel) |
| Operating Modes | Balance Charging Mode, Storage (Maintenance) Mode, Discharge |
| Display | 3.2-inch High-Definition Color LCD, Chinese Interface |
| Dimensions | 268mm x 140mm x 127mm |
| Weight | Approx. 3.1 kg |
Frequently Asked Questions (FAQ)

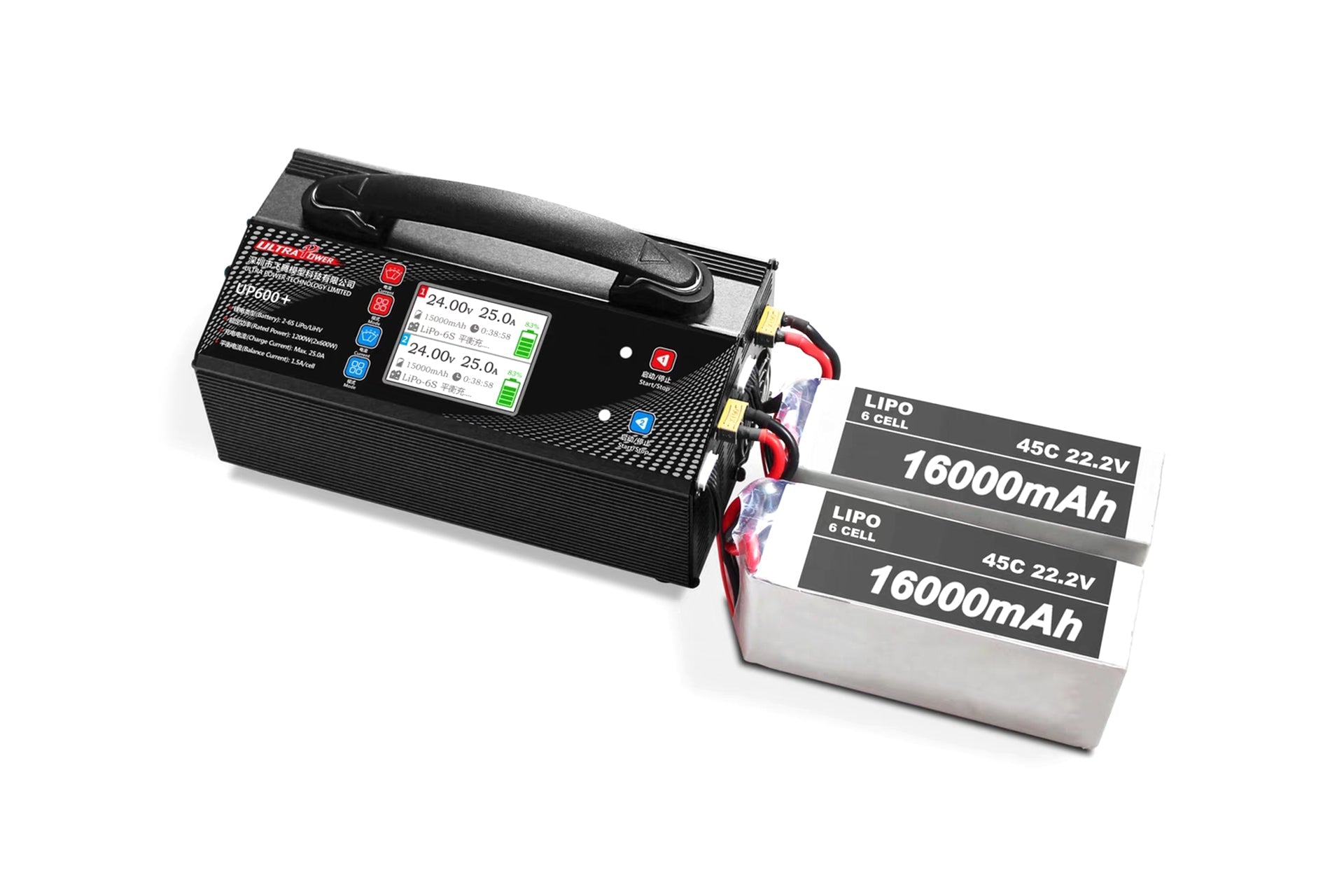

Q1: Can I charge two different batteries at the same time? For example, one 6S 5000mAh and one 4S 2200mAh?
A: Yes. The two channels of the UP600+ are completely independent. They can simultaneously and separately charge two batteries with different voltages and capacities using different currents and modes.
Q2: Is the maximum 25A current safe for charging my battery?
A: Whether the charging current is safe depends on the battery's own tolerance. Please check the "charging rate" (e.g., 1C, 2C) on the battery label. For example, a battery labeled "5000mAh 2C charge" has a maximum safe charging current of 5Ah * 2 = 10A. Using the UP600+'s high current is safe and efficient as long as it does not exceed the battery's allowed maximum charging current.
Q3: When should Storage Mode be used? How to use it?
A: Storage Mode should be used when you expect the battery to be idle for more than a week. This mode automatically charges/discharges the battery to the ideal storage voltage of about 3.85V per cell. Simply select "Storage Mode" in the menu, connect the battery, and start. The charger will automatically determine whether to charge or discharge.
| Item | Details |
|---|---|
| Input Voltage | AC 110V or 220V |
| Charging Power | 1200W (600W×2) |
| Discharge Power | 80W (40W×2) |
| Battery Type | LiPo/LiHV |
| Charging Current Range | 5A/10A/15A/20A/25A |
| Balancing Current | 1.5A/cell |
| Lithium Battery Cell Count | 2-6S (remote control battery: 2-3S) |
| Charging Modes | Balance charging mode / Storage mode |
| Dimensions | 268×140×127 mm |
| Weight | 3.1 KG |
Wider Compatibility, Extensive Application Across More Fields
Strong Performance, Scientific and Intelligent Balanced Battery Repair
