Battery Charger 1200W for Agricultural Drones | EV-PEAK U1+
EV-PEAK Agricultural Drone 6-14S Battery Charger 1200W 25A U1+
Details

EV-PEAK U1+ Smart Balance Fast Charger

Portable & Convenient

Compact design


High Power

25A max current / 1200W


Simple Operation

Button control / One‑press start


Enhanced Safety

Over‑current / over‑voltage / over‑temp protection

EV-PEAK U1+ is a 1200W / 25A smart balance fast charger designed for agricultural drones, inspection, aerial photography, firefighting, mapping, patrol, and plant protection. The large display makes it easy to read and addresses your charging needs effectively.

Portable · Compact design High power · 25A max current Simple operation · button control Multiple protection systems

Portable & Convenient: Compact design for easy transport, ideal for field operations.

High Power: Supports up to 25A super‑high battery current with 1200W charging power for rapid replenishment.

Simple Operation: One‑press start with automatic battery recognition – no complicated settings required.

Enhanced Safety: Built‑in over‑current, over‑voltage, and over‑temperature protection ensure safe charging for your drone and batteries.

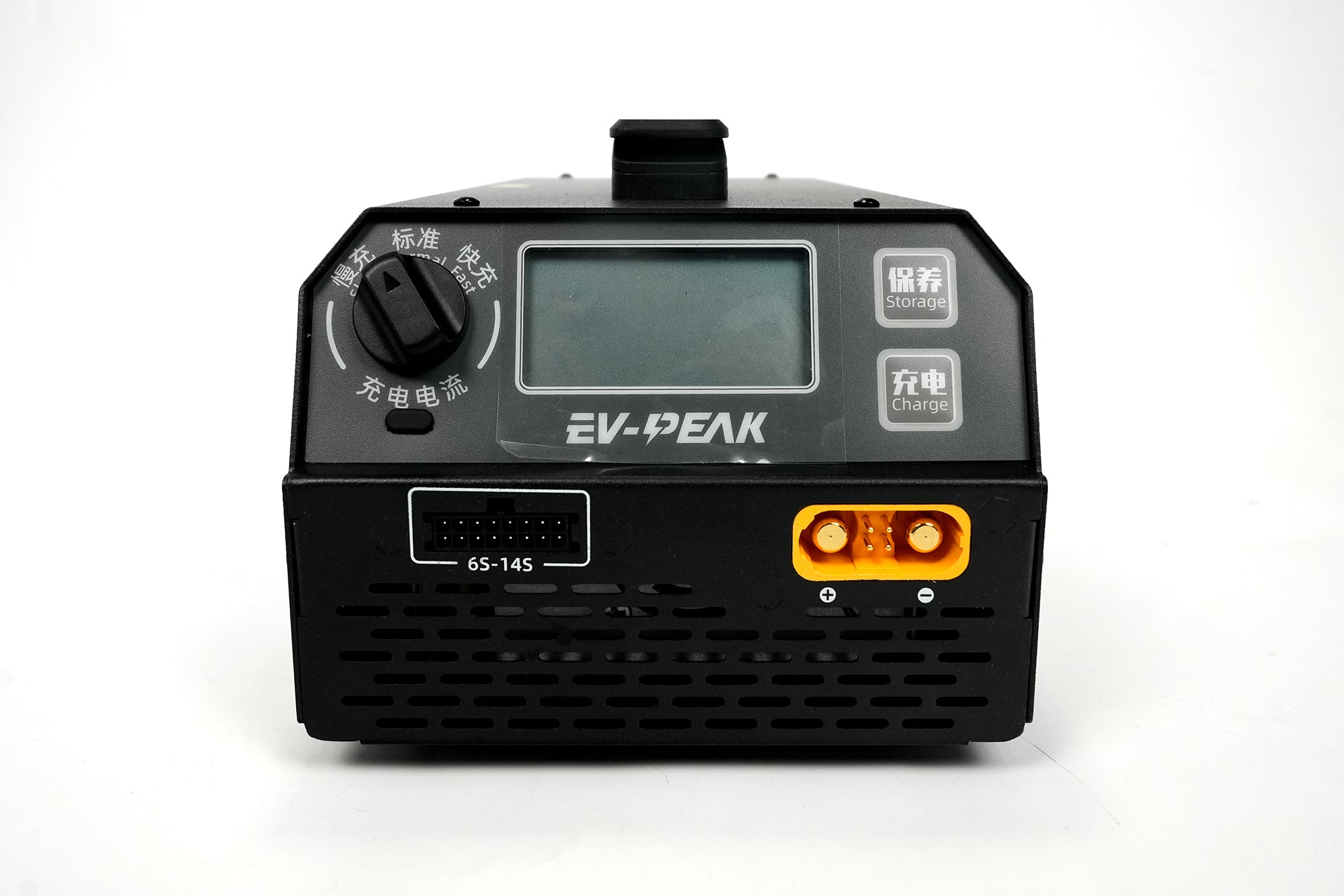

Intuitive Display: Large LCD screen shows real‑time charging current (AMP), battery capacity (CAPA), voltage (VOLT), charged capacity (mAh), and time, so you always know exactly what your battery needs.

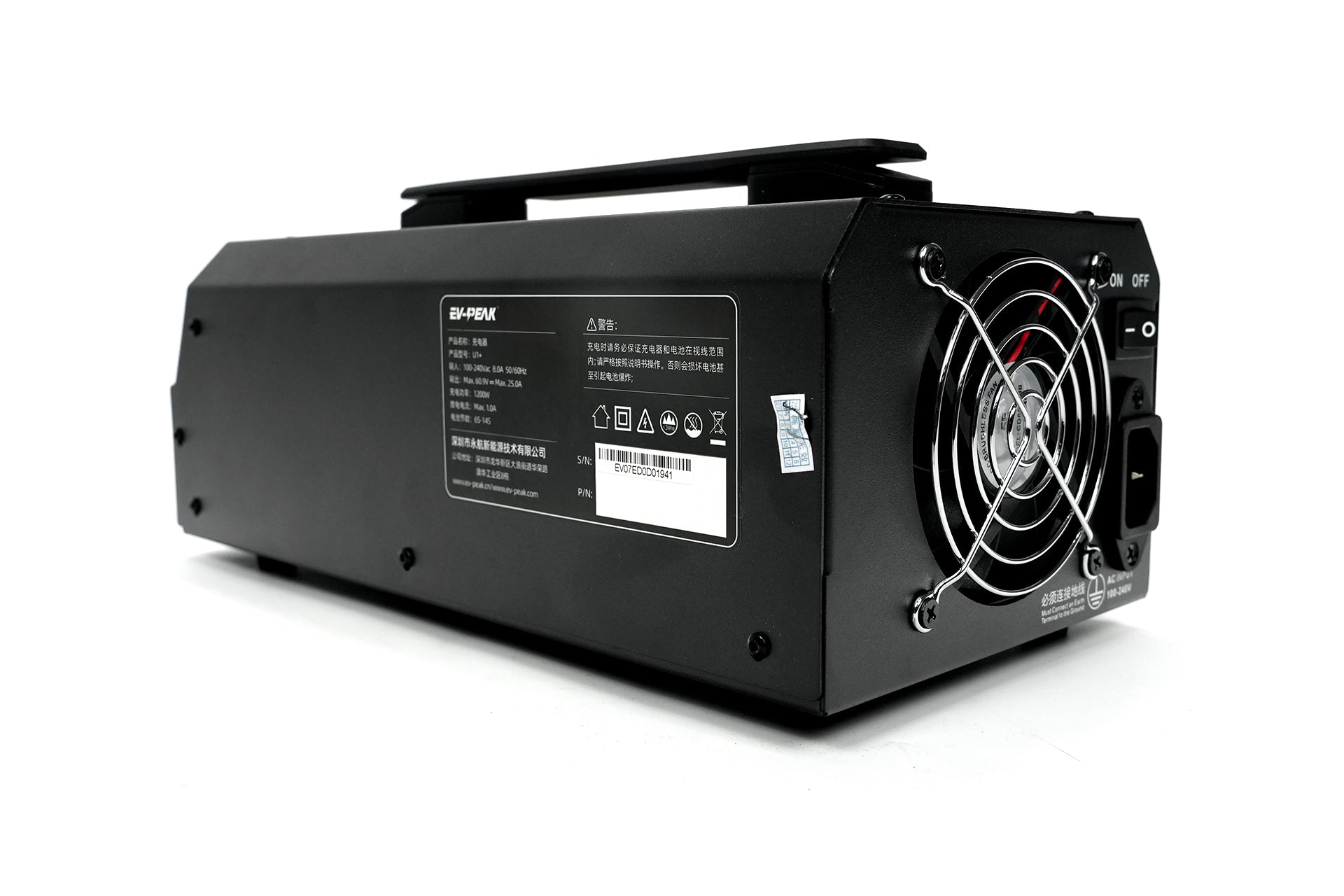

Powerful Heat Dissipation: High‑quality aluminum alloy housing with large aluminum heat sinks delivers fire‑resistant and efficient cooling, protecting your equipment.

Automatic Recognition: Supports multiple battery types (LiPo / LiHV / Smart Battery) and automatically reads battery information, compatible with 6‑14S battery packs.

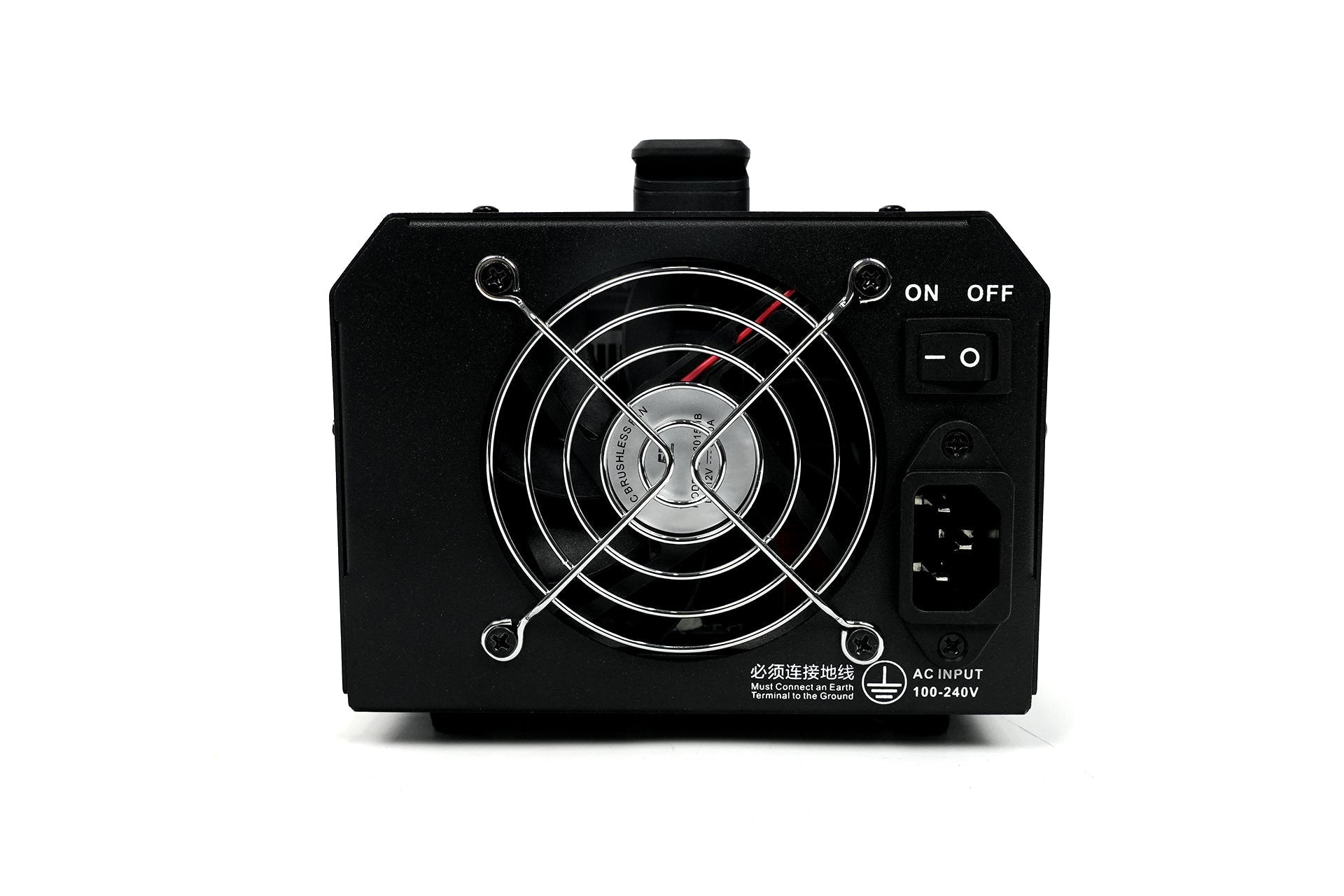

Ground connection required – AC input supports 100‑240V worldwide voltage. To ensure lightning and leakage protection, please always use a grounded outlet or generator.
Specifications
AC Input Voltage 100-240V
Charging Power Max. 1200W
Charging Current Max. 25A
Battery Types LiPo / LiHV / Smart Battery
Battery Cell Count 6-14S
Dimensions 287 × 145 × 139 mm
Weight 3.5 KG
Frequently Asked Questions
Q1: Which drone batteries does this charger support?
It supports LiPo, LiHV, and smart batteries with a cell count range of 6S to 14S, suitable for agricultural spraying, surveying, inspection, and other large‑scale UAVs.
Q2: Is the charging operation complicated?
Not at all. Simply press the charge button to start – the charger automatically identifies the battery and sets the correct parameters. The LCD screen clearly shows progress and remaining capacity.
Q3: Could high‑current charging damage the battery or pose safety risks?
No. The U1+ features over‑current, over‑voltage, and over‑temperature protection, combined with an aluminum housing and large heat sinks to maintain safe temperatures throughout the charging process.
Q4: What are the power connection requirements for outdoor operations?
AC input supports 100‑240V for worldwide use, but a grounded connection is mandatory for lightning and leakage protection. We recommend using a grounded socket or generator.
Q5: What key information does the display show, and how does it help with battery maintenance?
It shows real‑time charging current (AMP), battery capacity (CAPA), voltage (VOLT), charged capacity (mAh), and time. This data helps you assess battery health and perform timely storage or maintenance.
Q6: How effective is the heat dissipation? Will it overheat during long high‑power charging?
The large aluminum heat sinks and thermally conductive aluminum alloy housing ensure excellent heat dissipation. Even during extended 1200W full‑load operation, temperatures remain stable, protecting both charger and battery.
Q7: Does the package include charging cables or adapters?
The standard package includes the main unit, AC power cord, and user manual. Dedicated battery connecting cables or adapters are not included – they must be purchased separately based on your battery connector type.
Package Contents

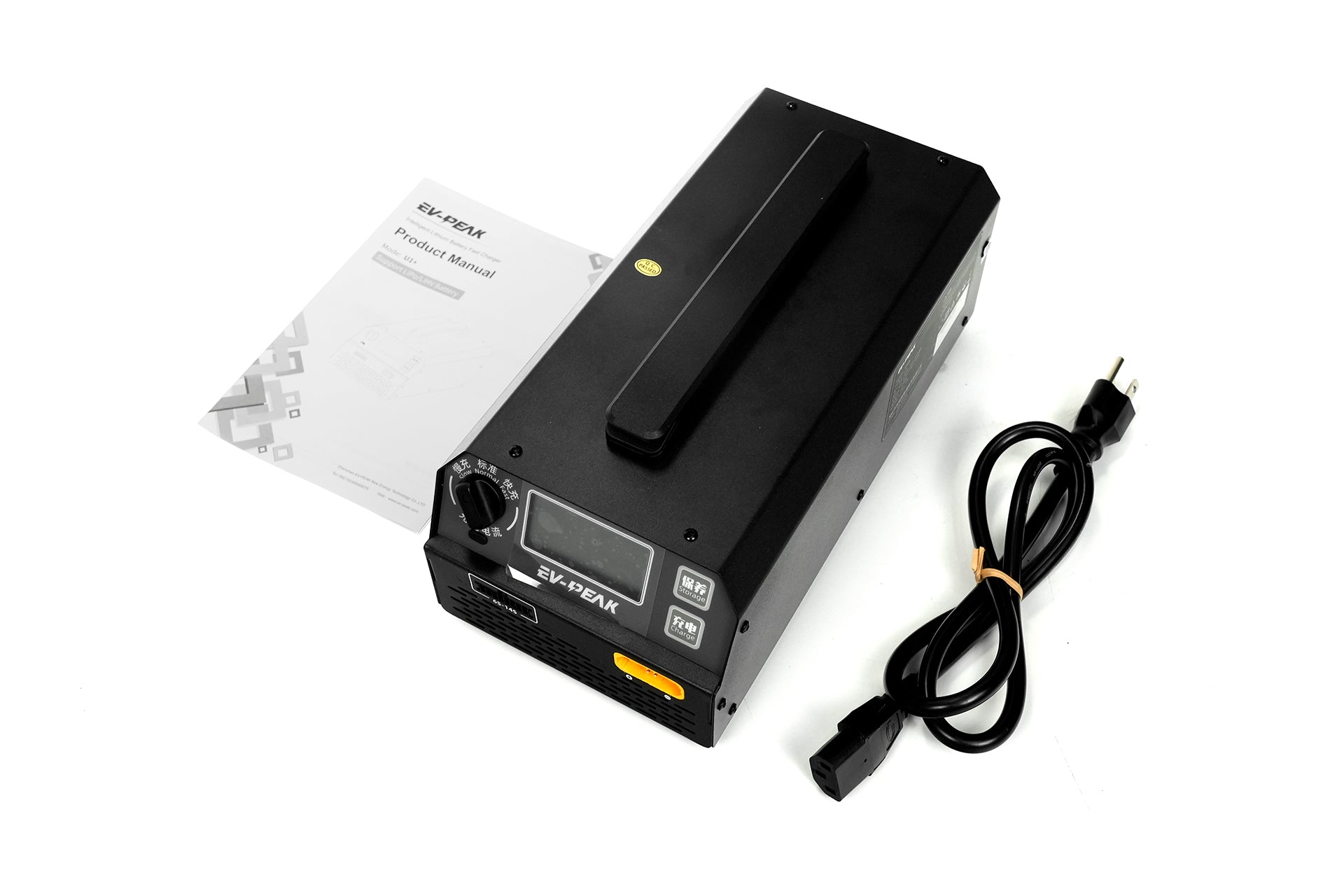

EV-PEAK U1+ Smart Charger × 1 AC Power Cord (100‑240V) × 1 User Manual × 1
Note: The power cord is standard for 100‑240V global voltage. Battery connection cables and adapters are not included – please purchase according to your battery interface.
