TMOTOR VL6013 VTOL composite wing power motor

Regular price $241.00

TMVL6013-M

  • American Express
  • Apple Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa
Specifications
copper wire motor - High-Performance TMOTOR VL6013 VTOL Composite Wing Motor

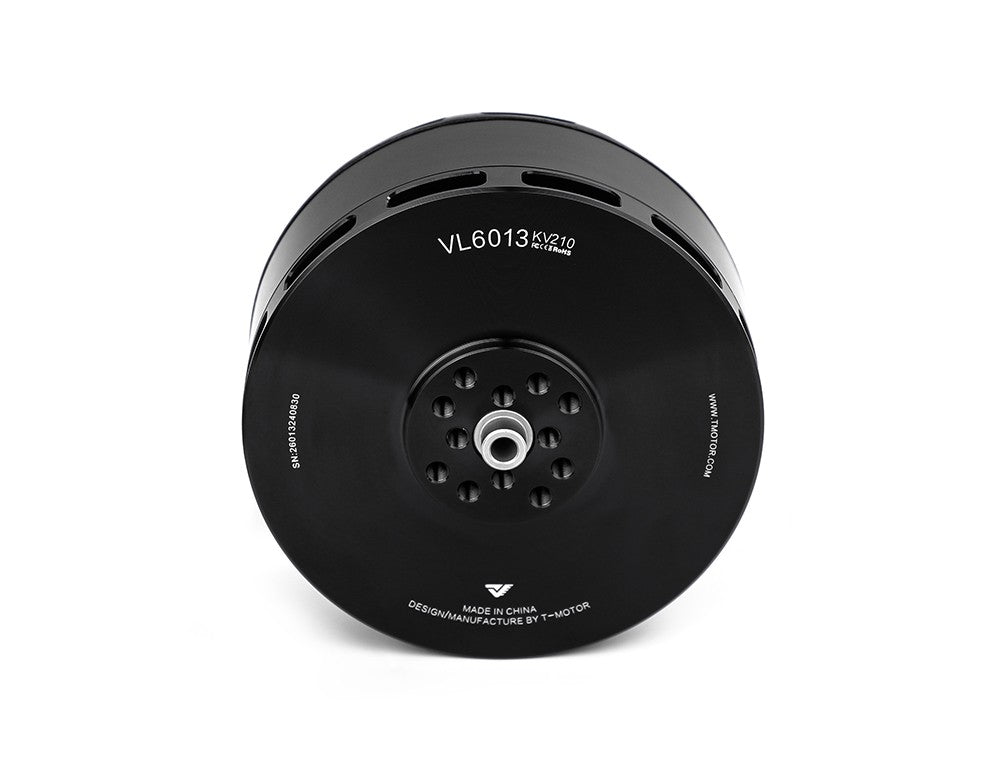

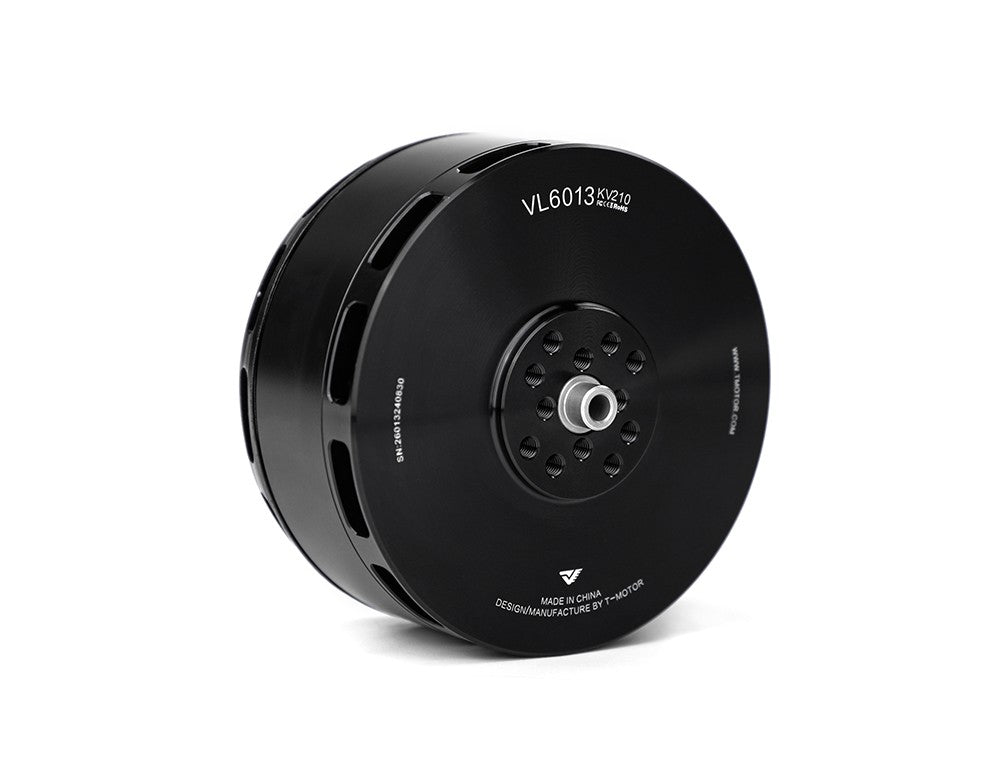

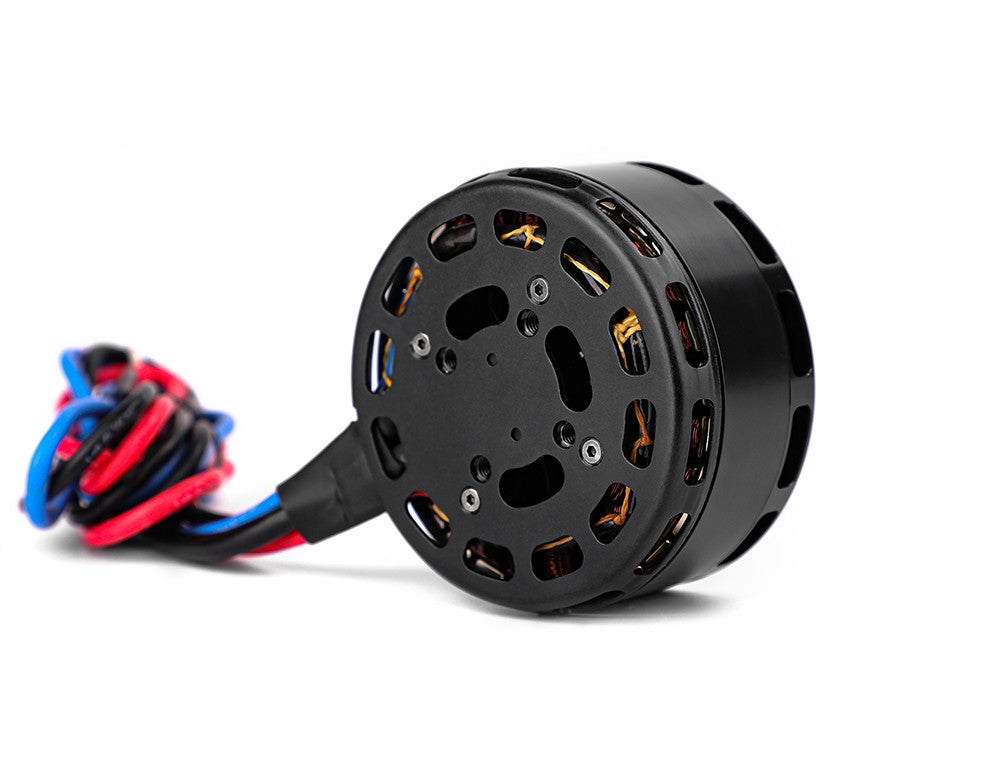

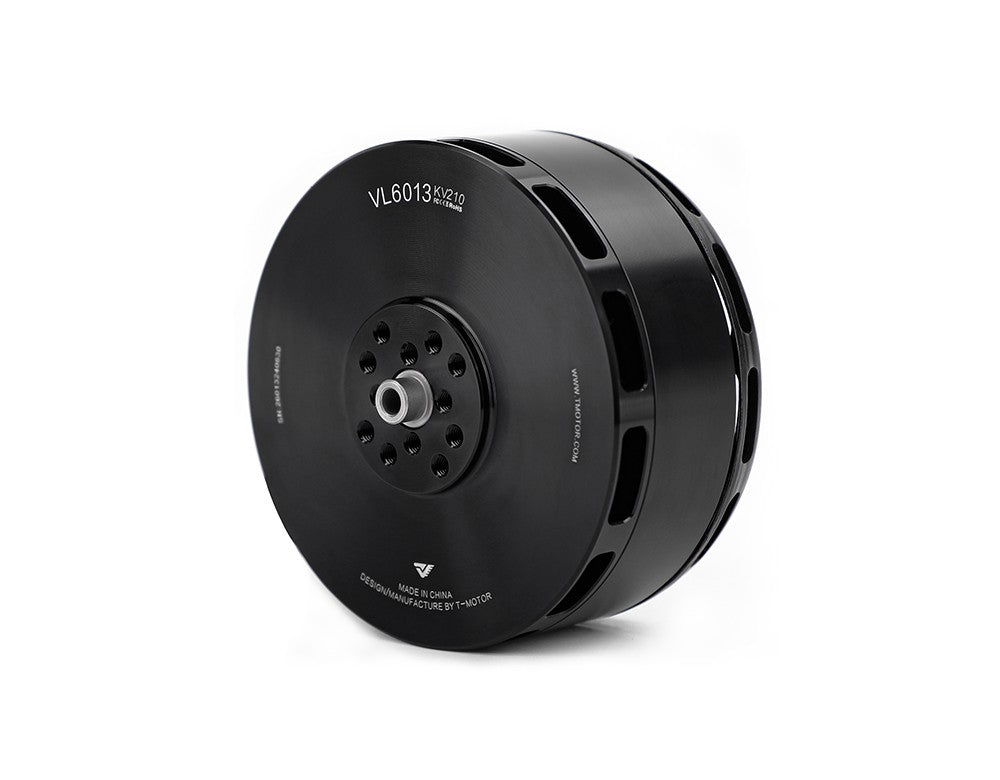

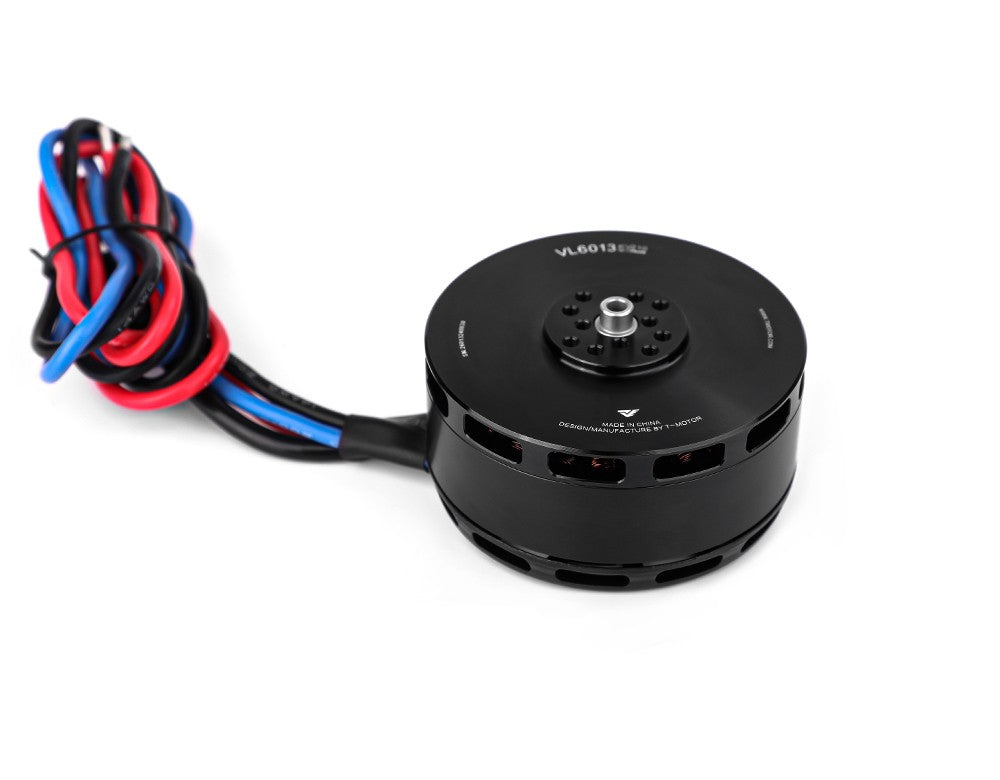

TMOTOR VL6013 VTOL composite wing power motor
Details
Specification
Model No. VL6013 Magnet Level 180℃
Motor Size Φ68.8*39.4mm Lead Cable Silicone wire14# 600mm
Stator 150°C high temperature
-resisting coatings
Copper Wire 220℃
Configuration 24N28P Coil Insulation Test 1000V/5s
Shaft Diameter IN: 6  OUT: 6 Rotor Dynamic BalanceStandard ≤10mg
Bearing Imported 626 IP IPX5
CentrifugalCooling Design YES Package Size 135*104*50mm
Model No. VL6013 KV (RPM/V) 210
Rated Voltage (LiPo) 12S Idle Current (15V) 1.5A
Internal Resistance(25℃) 50mΩ Peak Current 70A
Continuous Power(180s) 1300W Ambient Temperature -30℃~55℃
Max. Thrust 13.1kg Motor Weight(indl. Cable) 388g
Test Data
Type Throttle Voltage
(V)
Thrust
(g)
Torque
(N*m)
Current
(A)
RPM Power
(W)
Effciency
(g/W)
Operating
Temperature
(℃)
VL6013 KV210
+
V80A 14S
+
P22*6.6
40% 45.02 2384 0.60 5.76 3343 259 9.19 72
(Ambient
Temperature:
25)
42% 45.06 2649 0.67 6.66 3512 300 8.83
44% 45.08 2950 0.74 7.65 3676 345 8.56
46% 45.10 3228 0.80 8.67 3841 391 8.26
48% 45.12 3562 0.88 9.87 4001 445 8.00
50% 45.13 3841 0.95 11.06 4165 499 7.70
52% 45.15 4203 1.03 12.45 4332 562 7.47
54% 45.15 4551 1.12 13.92 4493 628 7.24
56% 45.15 4907 1.21 15.49 4648 699 7.02
58% 45.15 5250 1.29 17.14 4805 774 6.78
60% 45.15 5624 1.39 18.97 4961 857 6.57
62% 45.13 6022 1.48 20.96 5126 946 6.37
64% 45.12 6411 1.58 22.99 5274 1037 6.18
66% 45.12 6827 1.68 25.23 5423 1138 6.00
68% 45.11 7241 1.78 27.58 5574 1244 5.82
70% 45.09 7670 1.89 30.18 5730 1361 5.63
80% 44.97 9973 2.47 45.95 6468 2066 4.83
90% 44.62 12189 3.04 77.83 7113 3473 3.51
100% 44.56 12517 3.13 77.35 7195 3447 3.63
VL6013 KV210
+
V80A 14S
+
P22*6.6
40% 50.82 3099 0.76 7.28 3748 370 8.38 72
(Ambient
Temperature:
25)
42% 50.86 3431 0.84 8.39 3933 427 8.04
44% 50.89 3810 0.93 9.68 4119 493 7.74
46% 50.91 4174 1.02 10.98 4300 559 7.46
48% 50.93 4547 1.11 12.42 4485 633 7.19
50% 50.96 4939 1.20 14.00 4663 713 6.93
52% 50.97 5363 1.31 15.79 4846 805 6.66
54% 50.99 5805 1.42 17.65 5016 900 6.45
56% 51.00 6233 1.52 19.61 5189 1000 6.23
58% 51.00 6680 1.64 21.76 5360 1110 6.02
60% 51.01 7163 1.75 24.08 5537 1228 5.83
62% 51.01 7661 1.88 26.66 5711 1360 5.63
64% 51.01 8139 1.99 29.28 5873 1493 5.45
66% 50.99 8622 2.12 32.10 6041 1637 5.27
68% 50.98 9179 2.25 35.38 6208 1803 5.10
70% 50.97 9690 2.38 38.66 6371 1970 4.92
80% 50.70 12526 3.12 61.65 7175 3125 4.01
90% 50.71 12759 3.18 69.88 7224 3543 3.60
100% 50.63 13084 3.27 69.90 7311 3539 3.70
