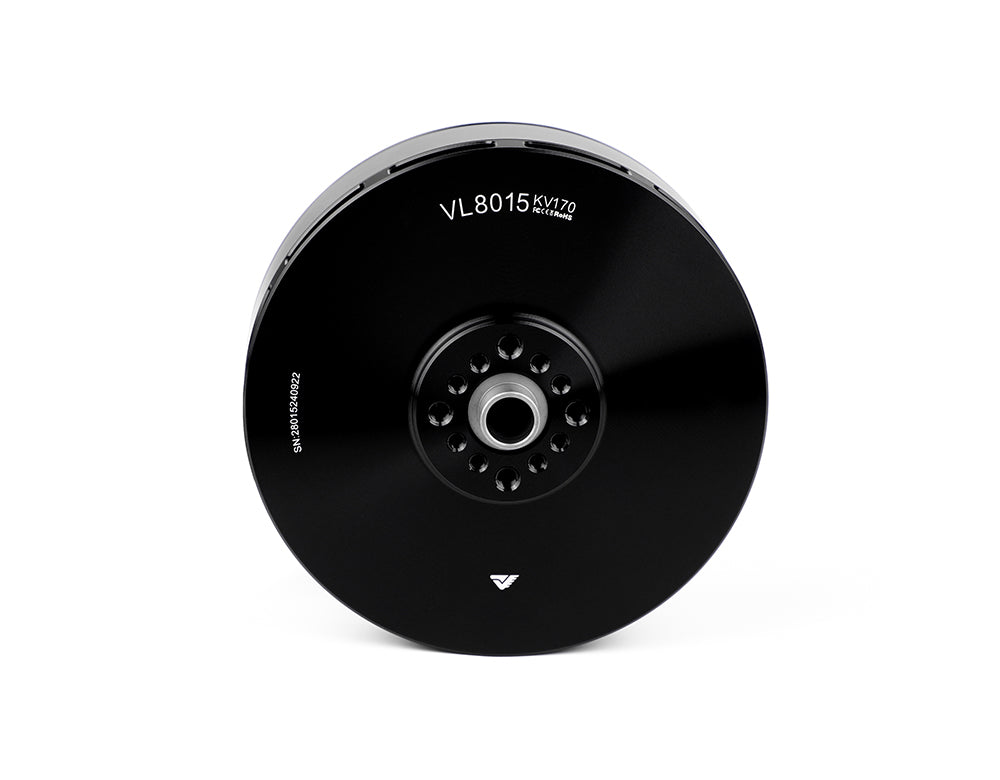

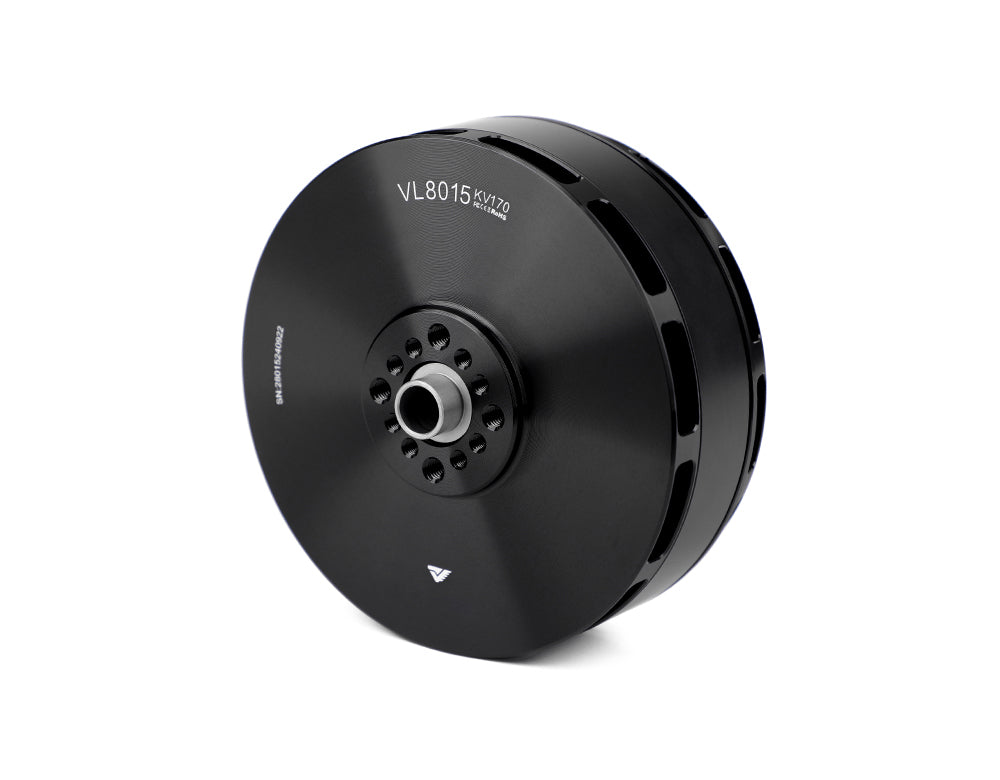

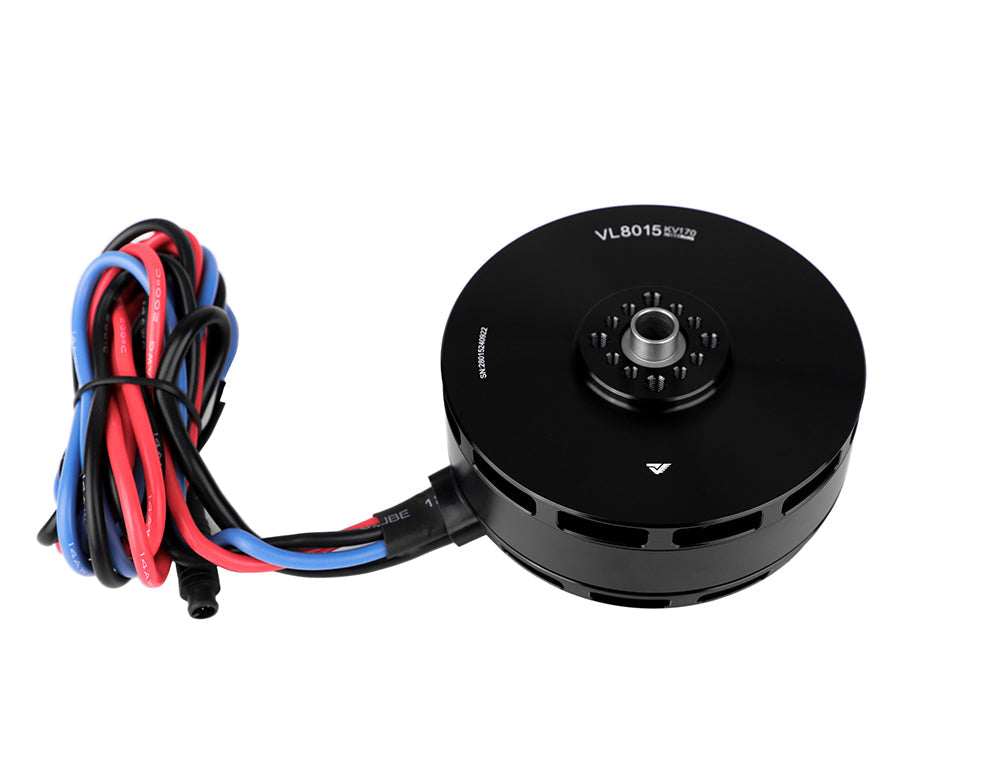

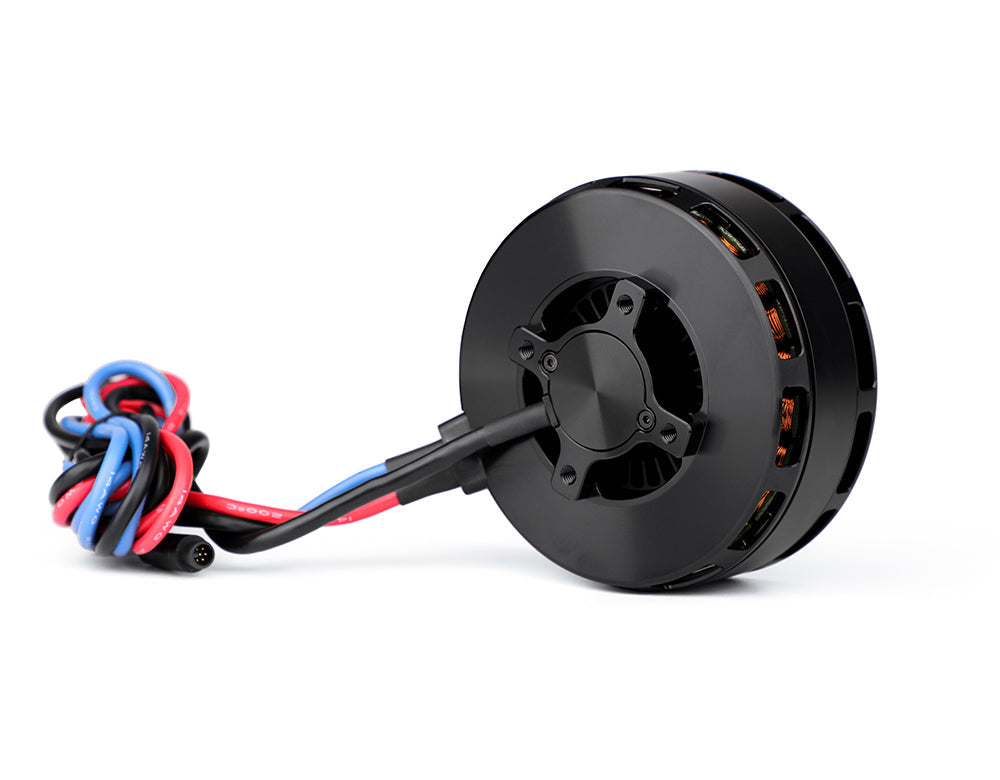

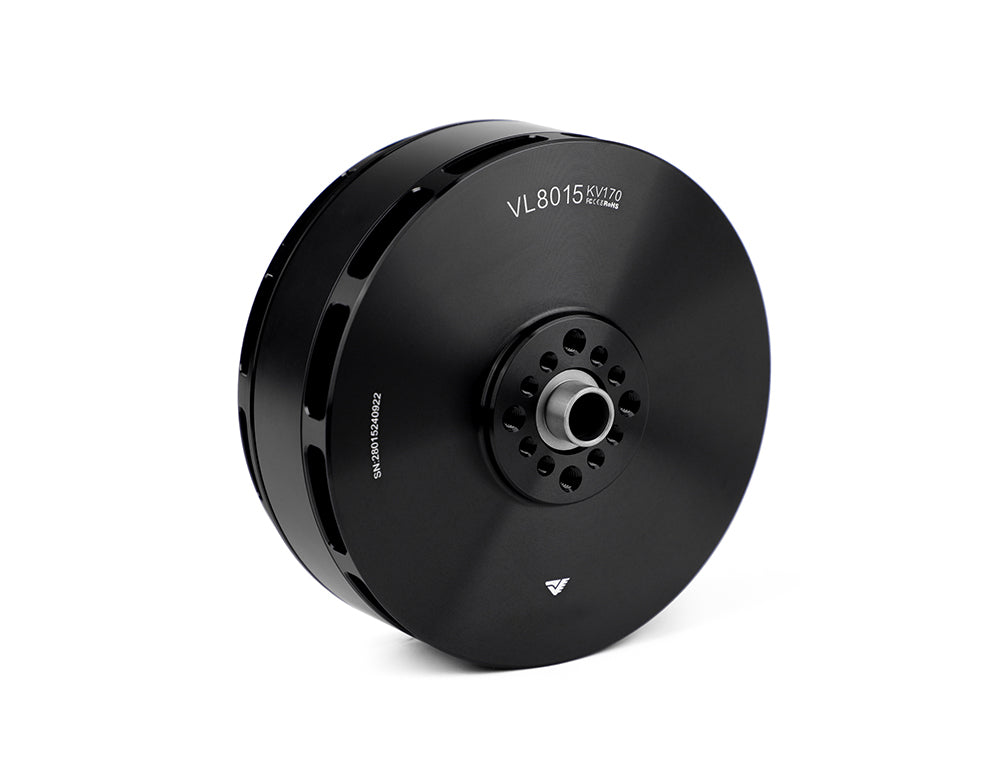

T MOTOR VL8015 KV170 VTOL UAV Motor for25kg MTOW Drone

Regular price $269.00

TMVL8015-M

  • American Express
  • Apple Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa
Specifications
T MOTOR VL8015 KV170 VTOL UAV Motor for25kg MTOW Drone
Details

Fast and economical
propeller locking

Fast (Lock the propeller in seconds)

The 360° custom angle propeller-locking can effectively avoid the turbulence caused by the rotation of the rotor and ensure that the aerodynamic layout of the fixed-wing aircraft is not affected, thereby improving flight safety

Economical (Adaptive propeller locking)

The ESC can automatically adjust the current to control the torque to lock the propeller as per the change of external force, reducing power consumption and heat to achieve energy saving

Specification
Model No. VL8015 Magnet Level 180℃
Motor Size Φ88.8*42mm Lead Cable Silicone wire14# 1000mm
Stator 150°C high temperature
-resisting coatings
Copper Wire 220℃
Configuration 24N28P Coil Insulation Test 1000V/5s
Shaft Diameter IN: 12 OUT: 10 Rotor Dynamic BalanceStandard ≤10mg
Bearing Imported 6901 IP IPX5
CentrifugalCooling Design YES Package Size 150*120*57mm
Model No. VL8015 KV (RPM/V) 170
Rated Voltage (LiPo) 12S Idle Current (15V) 1.9A
Internal Resistance(25℃) 43mΩ Peak Current 74A
Continuous Power(180s) 1200W Ambient Temperature -30℃~55℃
Max. Thrust 14.8g Motor Weight(indl. Cable) 610g
Test Data
Type Throttle Voltage
(V)
Thrust
(g)
Torque
(N*m)
Current
(A)
RPM Power
(W)
Effciency
(g/W)
Operating
Temperature
(℃)
VL8015 KV170
+
V80A 14S
+
G26*8.5
40% 44.59 2944 0.89 6.53 2450 291 10.11 63
(Ambient
Temperature:
25)
42% 44.60 3249 0.98 7.48 2575 334 9.74
44% 44.60 3558 1.07 8.50 2696 379 9.38
46% 44.60 3879 1.17 9.62 2817 429 9.04
48% 44.61 4216 1.26 10.85 2935 484 8.72
50% 44.61 4575 1.37 12.17 3052 543 8.43
52% 44.62 4962 1.47 13.62 3167 608 8.16
54% 44.62 5354 1.59 15.17 3278 677 7.91
56% 44.64 5726 1.70 16.77 3391 748 7.65
58% 44.64 6121 1.82 18.53 3503 827 7.40
60% 44.63 6509 1.93 20.32 3617 907 7.18
62% 44.62 6920 2.05 22.23 3726 992 6.98
64% 44.61 7329 2.17 24.26 3835 1082 6.77
66% 44.60 7762 2.29 26.47 3940 1180 6.58
68% 44.59 8178 2.42 28.73 4044 1281 6.38
70% 44.57 8615 2.55 31.20 4145 1391 6.20
80% 44.37 10932 3.23 45.81 4635 2032 5.38
90% 44.04 13323 3.95 65.64 5093 2891 4.61
100% 43.77 14233 4.23 84.17 5278 3684 3.86
VL8015 KV170
+
V80A 14S
+
G26*8.5
40% 50.33 3722 1.10 7.98 2742 402 9.26 63
(Ambient
Temperature:
25)
42% 50.34 4099 1.21 9.17 2876 462 8.88
44% 50.37 4499 1.33 10.48 3010 528 8.52
46% 50.39 4916 1.45 11.88 3141 599 8.21
48% 50.40 5364 1.58 13.44 3268 678 7.92
50% 50.41 5787 1.70 15.04 3398 758 7.63
52% 50.43 6228 1.83 16.80 3523 847 7.35
54% 50.43 6683 1.97 18.66 3648 941 7.10
56% 50.44 7173 2.11 20.71 3771 1045 6.87
58% 50.43 7646 2.25 22.78 3891 1149 6.65
60% 50.43 8136 2.39 25.08 4008 1265 6.43
62% 50.42 8616 2.53 27.45 4129 1384 6.23
64% 50.40 9103 2.68 29.97 4244 1511 6.03
66% 50.37 9613 2.83 32.66 4355 1645 5.84
68% 50.34 10111 2.98 35.47 4465 1785 5.66
70% 50.30 10607 3.13 38.42 4574 1933 5.49
80% 50.18 12159 3.59 48.39 4876 2428 5.01
90% 50.00 13673 4.04 60.23 5164 3012 4.54
100% 49.80 14842 4.40 73.75 5377 3673 4.04
