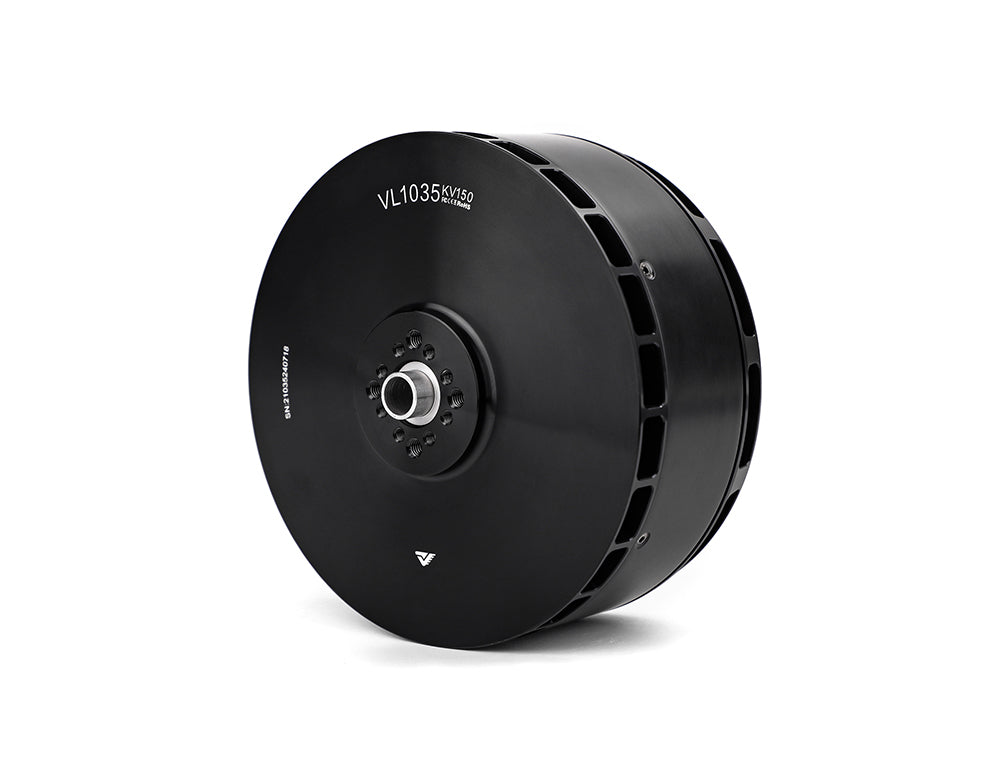

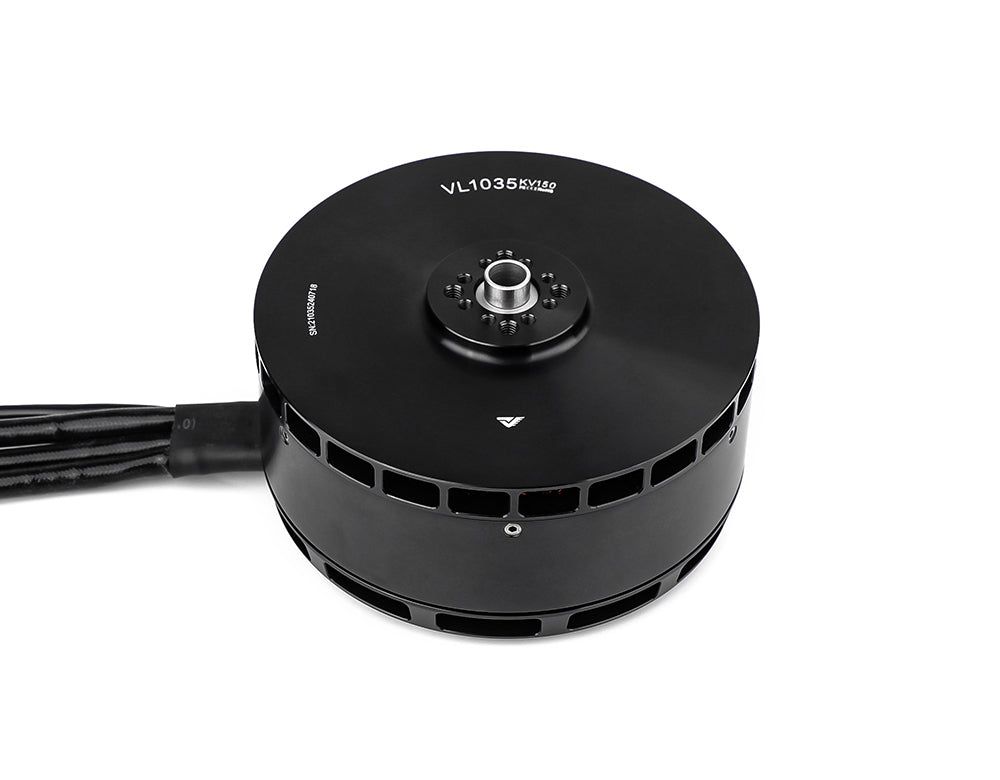

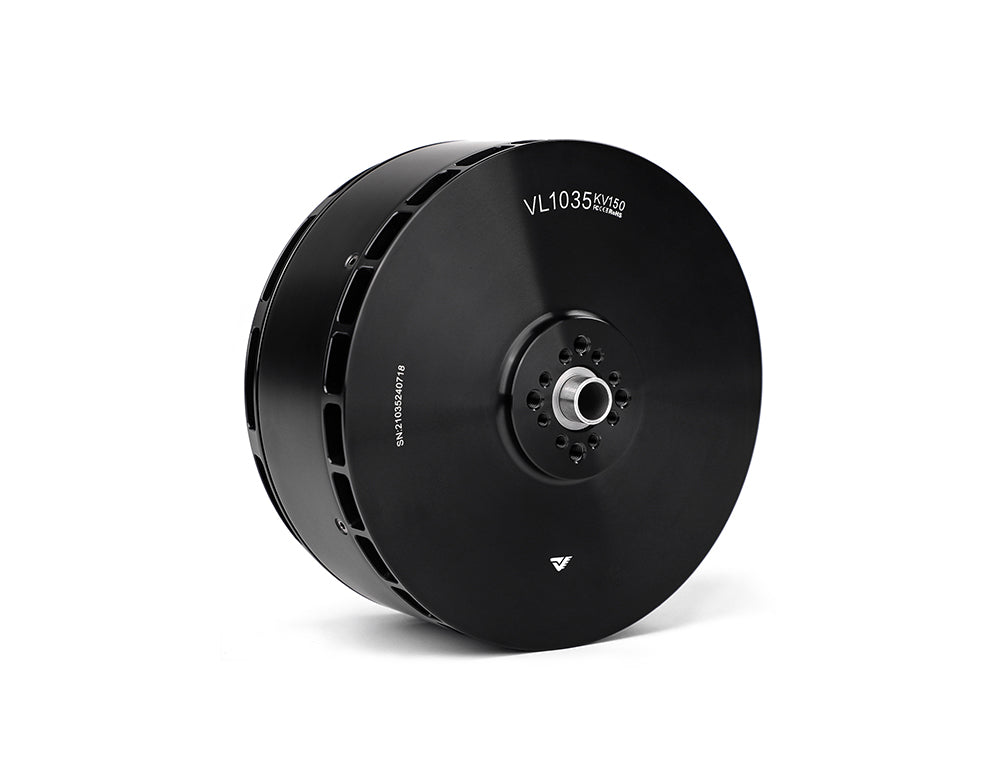

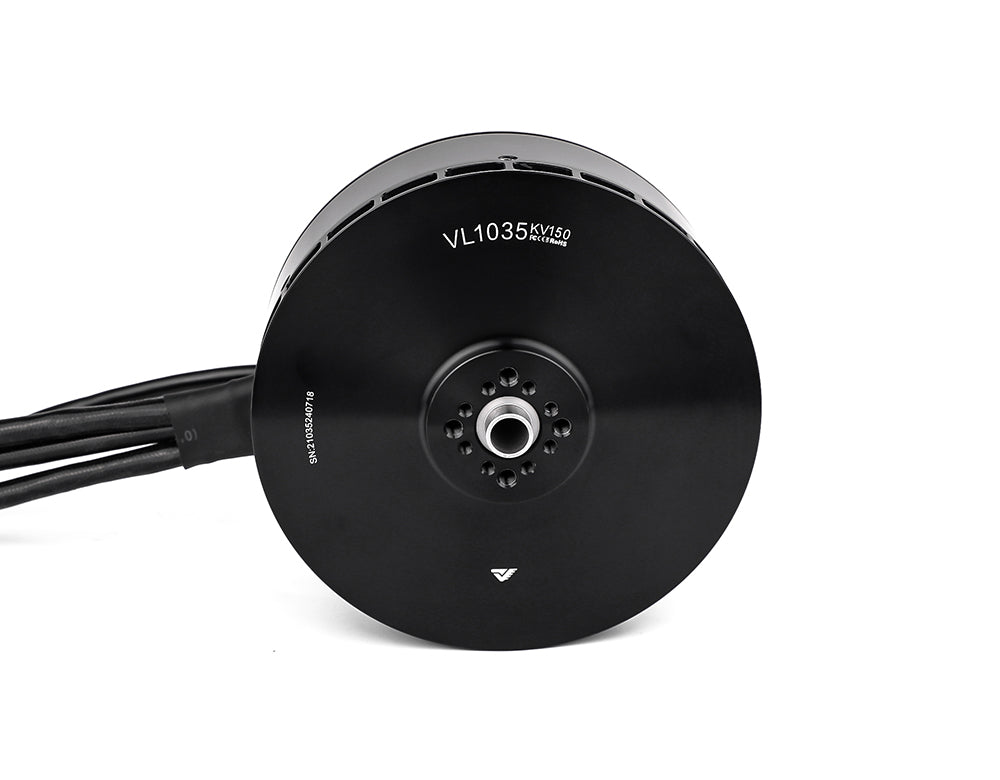

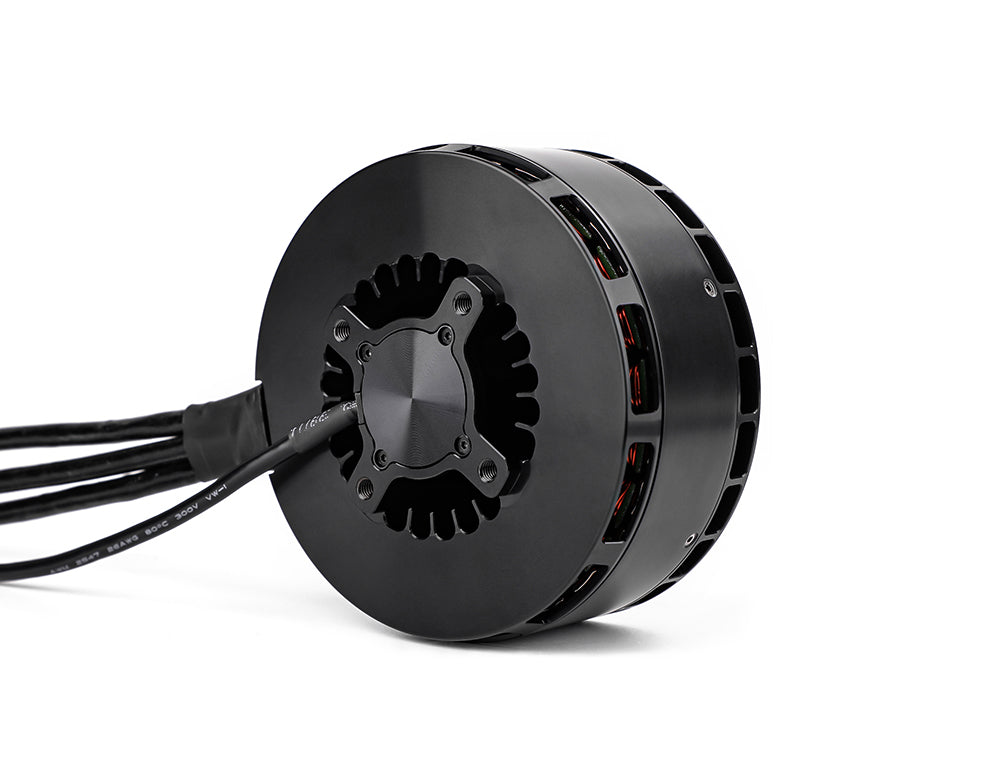

T motor VL1035 KV150 VTOL UAV Motor for35kg Heavy Lift Drones

Regular price $479.00

TMVL1035-150

  • American Express
  • Apple Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa
Specifications
T motor VL1035 KV150 VTOL UAV Motor for35kg Heavy Lift Drones
Details
Specification
Model No. VL1035 Magnet Level 180℃
Motor Size Φ109.6*61mm Lead Cable Enameled wire 150mm
Stator 150°C high temperature
-resisting coatings
Copper Wire 220℃
Configuration 24N28P Coil Insulation Test 1000V/5s
Shaft Diameter IN: 12 OUT: 10 Rotor Dynamic Balance Standard ≤15mg
Bearing Imported 6901 IP IPX5
CentrifugalCooling Design YES Package Size 190*140*80mm
Model No. VL1035 KV (RPM/V) 150
Rated Voltage (LiPo) 14S Idle Current (15V) 4.2A
Internal Resistance(25℃) 8mΩ Peak Current 182A
Continuous Power(180s) 4000W Ambient Temperature -30℃~55℃
Max. Thrust 36.1kg Motor Weight(indl. Cable) 1205g
Test Data
Type Throttle Voltage
(V)
Thrust
(g)
Torque
(N*m)
Current
(A)
RPM Power
(W)
Effciency
(g/W)
Operating
Temperature
(℃)
VL1035 KV150
+
V200A 14S
+
PL32*11
40% 50.43 6085 2.15 13.10 2350 661 9.21 97
(Ambient
Temperature:
25)
42% 50.39 6772 2.40 15.11 2470 761 8.89
44% 50.36 7424 2.63 17.18 2586 865 8.58
46% 50.32 8132 2.88 19.50 2700 981 8.29
48% 50.28 8851 3.13 21.97 2814 1104 8.01
50% 50.24 9663 3.41 24.74 2927 1243 7.78
52% 50.21 10433 3.68 27.64 3036 1388 7.52
54% 50.17 11261 3.97 30.76 3144 1543 7.30
56% 50.13 12047 4.25 34.02 3253 1705 7.06
58% 50.09 12793 4.52 37.33 3361 1870 6.84
60% 50.04 13708 4.84 41.14 3465 2058 6.66
62% 49.98 14553 5.15 45.04 3567 2251 6.47
64% 49.93 15449 5.47 49.24 3666 2459 6.28
66% 49.87 16358 5.81 53.68 3764 2677 6.11
68% 49.81 17242 6.13 58.25 3860 2901 5.94
70% 49.75 18136 6.45 62.96 3955 3132 5.79
80% 49.47 22687 8.10 90.19 4409 4462 5.08
90% 49.14 27481 9.90 125.48 4829 6166 4.46
100% 48.83 33017 11.96 181.74 5264 8874 3.72
VL1035 KV150
+
V200A 14S
+
PL32*11
40% 60.14 8863 3.11 18.47 2819 1111 7.98 97
(Ambient
Temperature:
25)
42% 60.10 9781 3.44 21.25 2954 1277 7.66
44% 60.07 10690 3.76 24.15 3091 1451 7.37
46% 60.01 11804 4.13 27.55 3222 1653 7.14
48% 59.96 12821 4.49 31.01 3352 1859 6.90
50% 59.90 13794 4.85 34.71 3480 2079 6.63
52% 59.84 14873 5.24 38.83 3605 2324 6.40
54% 59.78 15959 5.63 43.14 3728 2579 6.19
56% 59.73 17056 6.03 47.68 3848 2848 5.99
58% 59.66 18141 6.43 52.45 3966 3129 5.80
60% 59.58 19320 6.85 57.73 4080 3439 5.62
62% 59.51 20476 7.28 63.21 4192 3761 5.44
64% 59.43 21585 7.71 68.96 4300 4098 5.27
66% 59.35 22734 8.13 74.89 4408 4445 5.11
68% 59.28 23867 8.54 80.98 4518 4800 4.97
70% 59.19 25054 8.97 87.53 4621 5181 4.84
80% 58.60 30871 11.16 125.47 5097 7353 4.20
90% 58.67 34246 12.45 153.36 5350 8998 3.81
100% 58.58 36173 13.19 174.95 5490 10248 3.53
