Core Overview

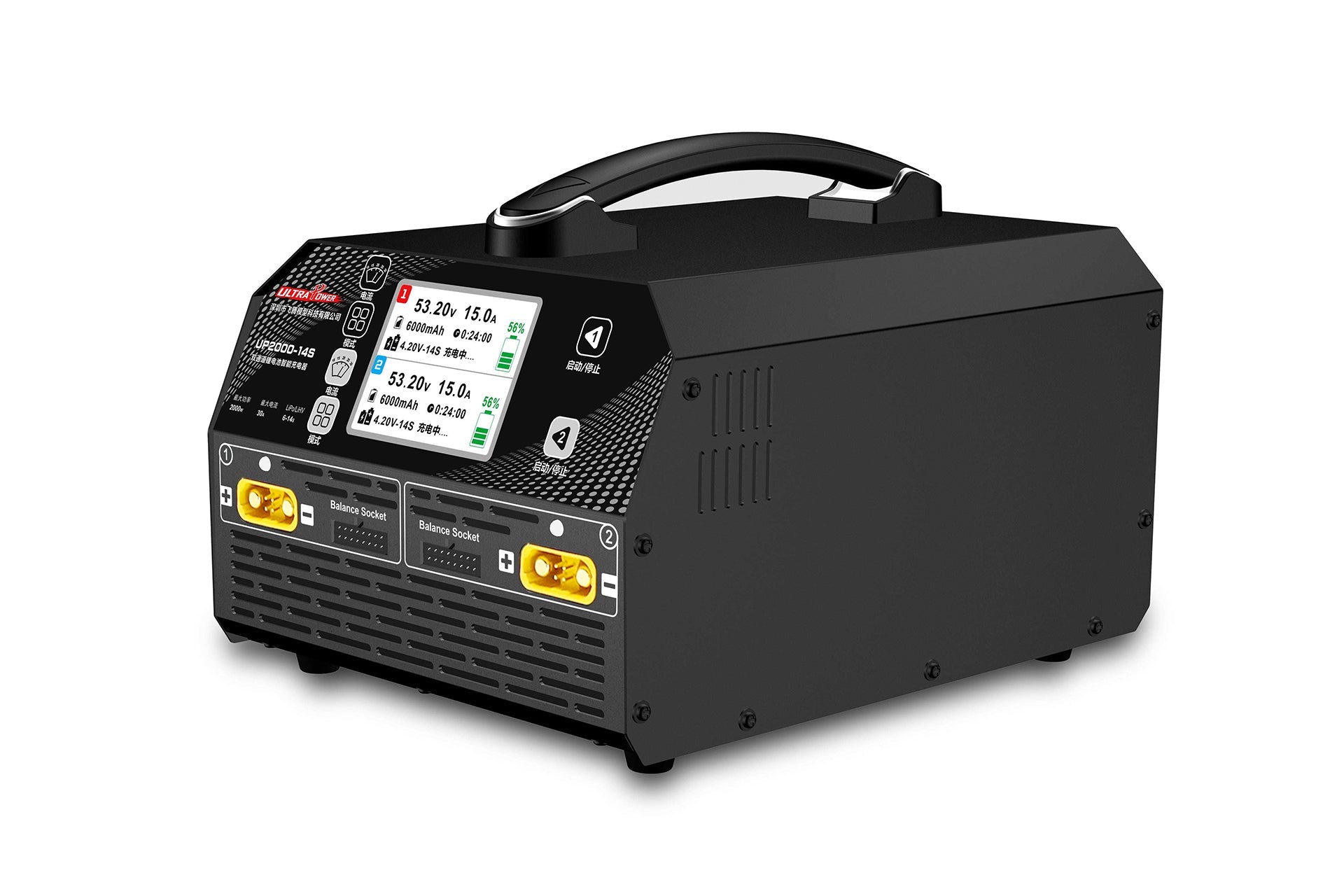

The UP2000-14S is a dual-channel, high-power, intelligent balance charger designed for professional users. Its core value lies in the integration of efficiency, safety, and multiple functions. It can simultaneously charge, maintain, and store two 6-14S lithium polymer batteries (LiPo), high-voltage lithium batteries (LiHV), or smart batteries. With a total power of 2000W, a maximum current of 30A, and a globally compatible 100-240V wide voltage input, it can meet the rapid recharging needs of high-power consumption equipment in fields such as photography, fire rescue, surveying, agricultural plant protection, etc. It is an ideal choice for professional users who pursue efficiency and battery health management.
Core Technology Advantages
Dual-Channel Independent Fast Charging
Supports dual-channel simultaneous operation (each channel 1000W at AC 220V), allowing independent management and display of the charging status of two batteries, doubling efficiency.
Fully Compatible Wide Voltage Support
Not only compatible with standard LiPo (4.20V/cell), but also fully supports high-voltage LiHV batteries (up to 4.50V/cell), and is compatible with smart batteries, adapting to future battery technologies.
Intelligent Battery Management System
Intelligent Storage Mode: Automatically charges or discharges the battery to the optimal storage voltage (approx. 3.85V/cell), solving long-term storage problems.
Parameter Memory Function: Automatically remembers the last battery type and charging settings, enabling "one-button start" for the same type of battery next time.
Multiple Safety Protection System
Integrates over-current protection, over-voltage protection, short circuit protection, over-temperature protection, and reverse polarity protection. Hardware and software work together to ensure absolute safety for equipment and personnel.
Usage Recommendations
- Always ensure the charger settings (LiPo/LiHV) exactly match the battery type. Incorrect settings may cause battery damage or danger.

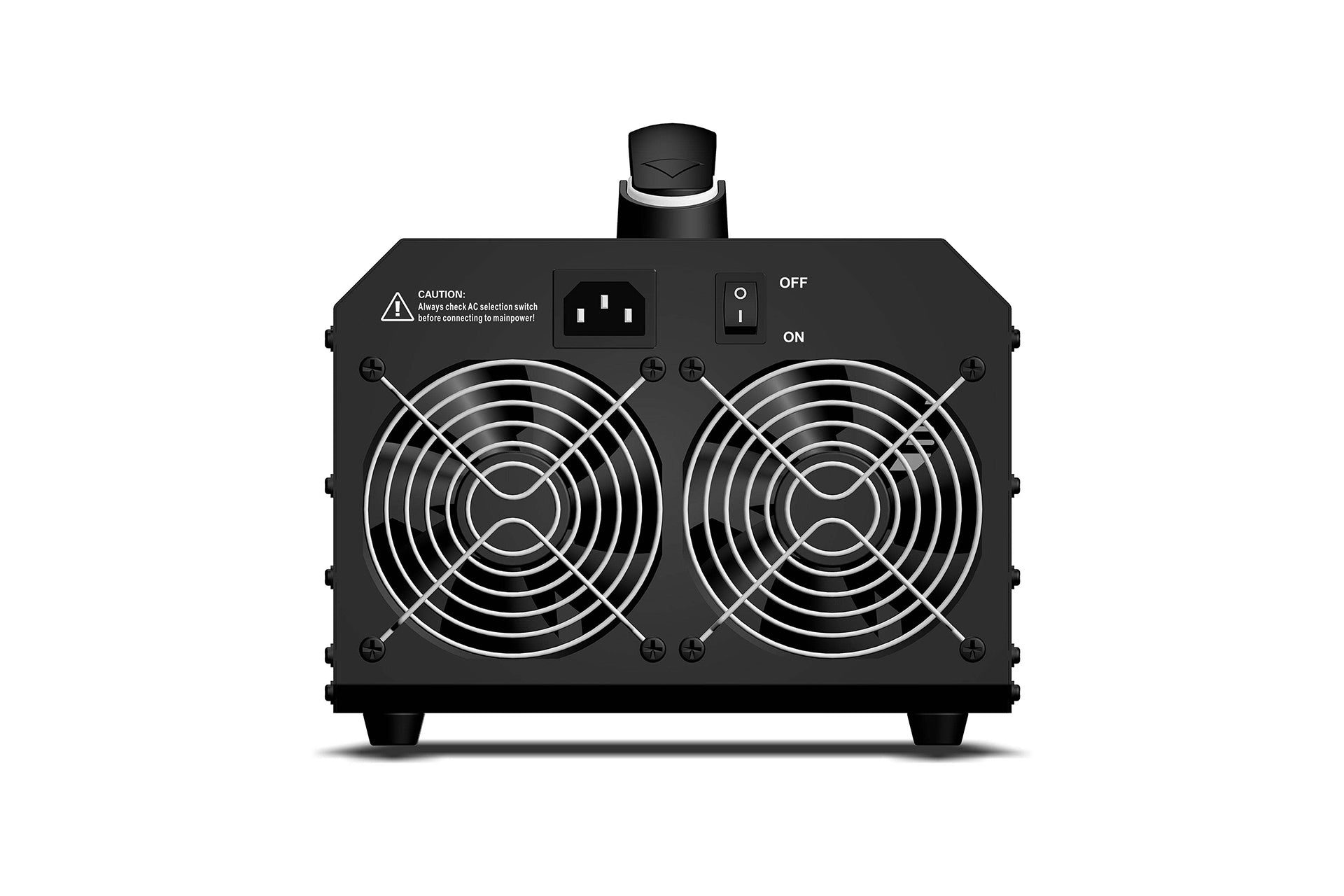

- Ensure good ventilation during charging; do not cover the ventilation holes.
- For batteries not used for extended periods, it is recommended to use "Storage Mode" to maintain the voltage at a safe storage level.
Product Specifications
| Item | Specifications |
|---|---|
| Input Voltage | AC 100-240V, 50/60Hz (Global) |
| Maximum Charging Power | AC 110V: Single Channel 1200W, Dual Channel 600Wx2 AC 220V: Single Channel 1500W, Dual Channel 1000Wx2 |
| Maximum Discharge Power | 70W |
| Supported Battery Types | LiPo / LiHV (Per cell voltage: 4.20V, 4.35V, 4.40V, 4.45V, 4.50V) / Smart Batteries |
| Supported Cell Count (S) | 6 – 14 (S) |
| Charging Current Selection | 5A, 10A, 15A, 20A, 25A, 30A (per channel independently adjustable) |
| Maximum Balance Current | 1.5A / cell |
| Operating Modes | Charge / Storage (Maintenance) / Charge Master (accessory sold separately) |

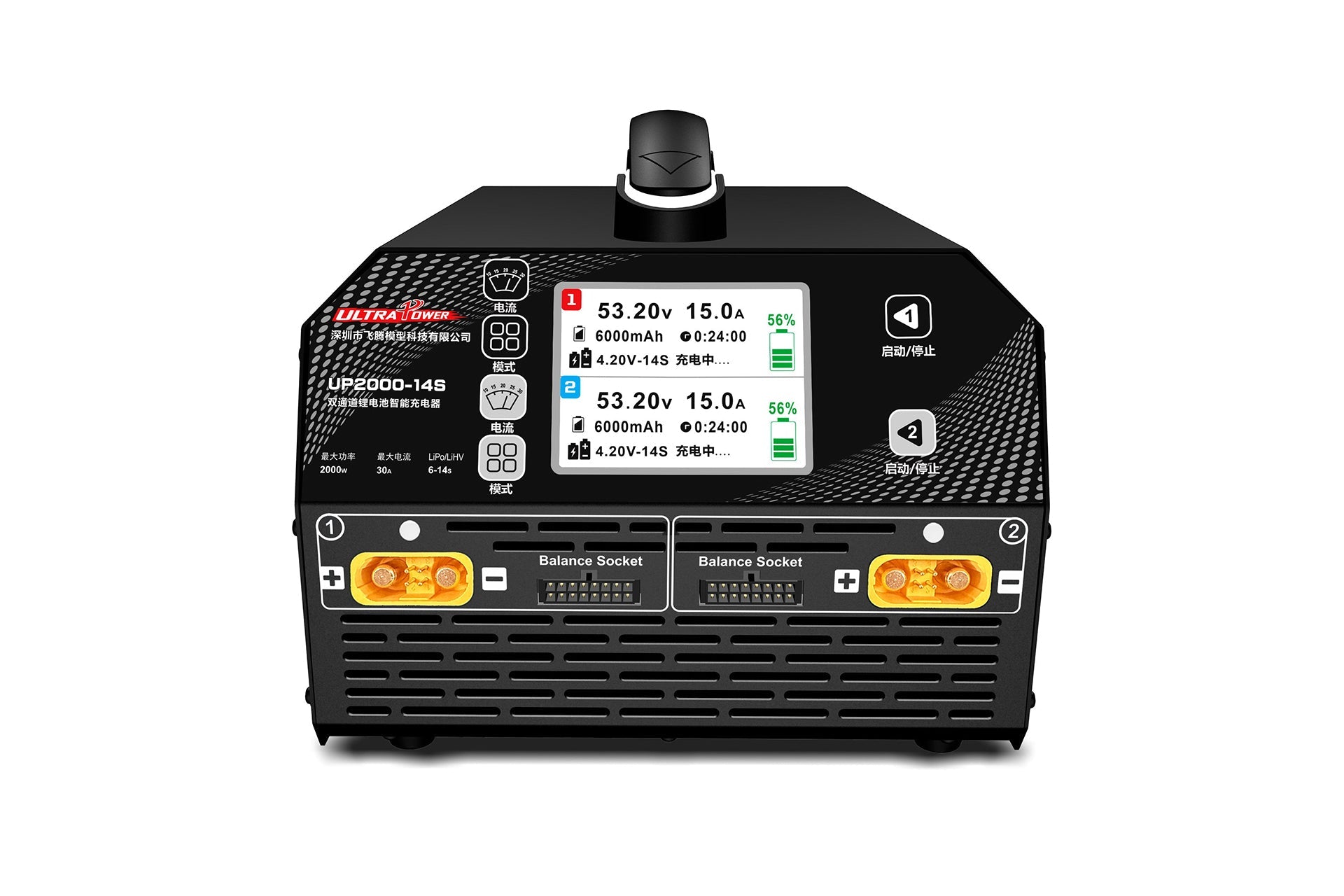

| Display | 3.2-inch Color LCD Screen |
| Dimensions (L x W x H) | 265 x 200 x 140 mm |
| Weight | Approx. 4.6 kg |
Frequently Asked Questions (FAQ)
Q1: How long does it take to charge a 6S 6000mAh battery?
A: Charging time depends on the selected current. Assuming the battery is completely discharged, using 1C (i.e., 6A) current, the theoretical time is about 1 hour. If using a higher current (e.g., 15A), the time will be shorter, but please prioritize following the battery manufacturer's recommended maximum charging rate.
Q2: Does it support older Nickel-Metal Hydride (NiMH) or Lead-Acid (Pb) batteries?
A: No. The UP2000-14S is an intelligent charger specifically designed for lithium-ion/polymer batteries (including high-voltage models) and is not suitable for other chemical system batteries.
Q3: The fan is noisy or the body gets quite hot during charging. Is this normal?
A: During high-power charging (e.g., >1000W), high-speed fan operation and a warm body are normal phenomena, indicating the cooling system is working effectively. Please ensure good ventilation. If abnormal high temperature or odor occurs, stop using immediately.
Q4: Can the two channels simultaneously charge two batteries with different voltages and capacities?
A: Yes. The two channels are completely independent. You can set different battery types (e.g., LiPo or LiHV), cell counts (6-14S), and charging currents for each channel separately.
| Specification | Parameter |
|---|---|
| Input Voltage | AC 100V - 240V |
| Charge Power | AC 110V: 1200W (Single Channel) / 600W × 2 (Dual Channels)
|
| Discharge Power | 70W (Max.) |
| Battery Type | LiPo 4.20V / LiHV 4.35V / LiHV 4.40V / LiHV 4.45V / LiHV 4.50V / Intelligent Battery |
| Charge Current | 5A / 10A / 15A / 20A / 25A / 30A |
| Balance Current | 1.5A / Cell (Max.) |
| Battery Cells Count | 6-14S |
| Charging Mode | Charge / Storage / ChargeHub |
| Dimensions | 265 × 200 × 140 mm |
| Weight | 4.6 KG |
