1. Disclaimer

Thank you for purchasing our company's product, the SCEPTER 15 Remote Controller. Be sure to read this document carefully before using the product to understand your legal rights, responsibilities, and safety instructions; otherwise, it may lead to property damage, safety accidents, and personal safety hazards.

Once this product is used, it is deemed that you have understood, acknowledged, and accepted all terms and content of this declaration. The user promises to be responsible for their own actions and all consequences arising therefrom. The user promises to use this product only for legitimate purposes and agrees to any relevant policies or guidelines that may be formulated by the company under these terms. The final right to interpret this document and all related documents belongs to the company.

Updates are subject to change without prior notice.

2. Product Usage Precautions

1. The input power for the SCEPTER 15 receiver supports 2S to 4S. Please strictly supply power to the module according to these power parameters.

2. Please ensure the antenna is installed before powering on to avoid circuit damage.

3. During use, please ensure that the antenna is not obstructed or bent, and keep it as far as possible from large metal structural parts to avoid affecting communication performance.

4. Do not disassemble or modify without authorization. If you encounter problems that cannot be solved during installation or use, please contact the company.

5. During installation, please ensure an appropriate distance is maintained between electronic devices to reduce electromagnetic interference.

6. Before use, please ensure all connections are secure and reliable, and all components are working normally.

7. Before use, please check the surrounding environment to ensure there are no other devices operating on the same frequency band to avoid affecting data transmission.

8. If you encounter problems that cannot be solved during product installation or use, please contact the company.

3. Product Introduction

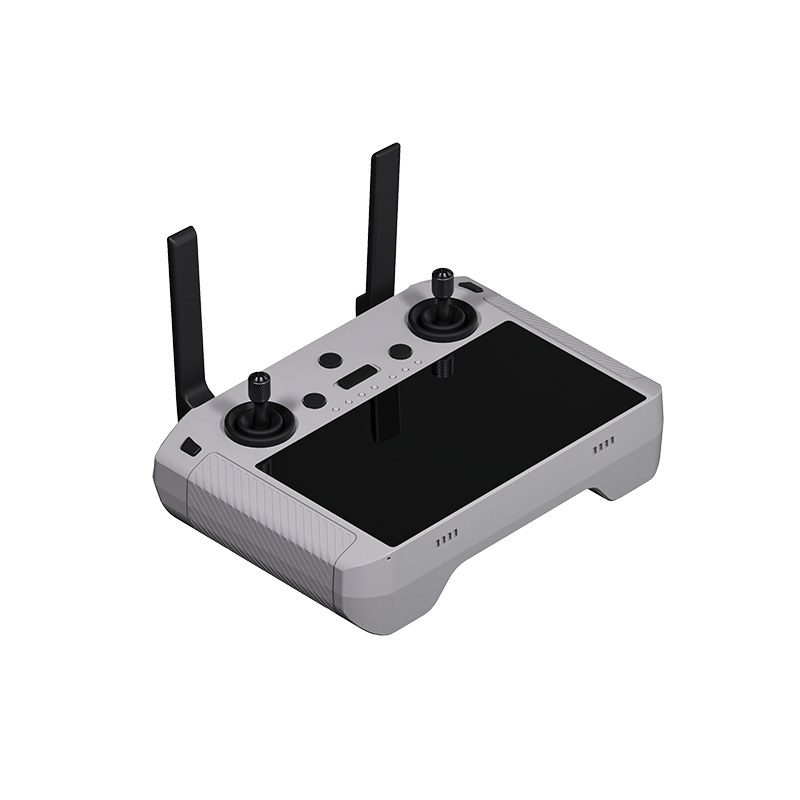

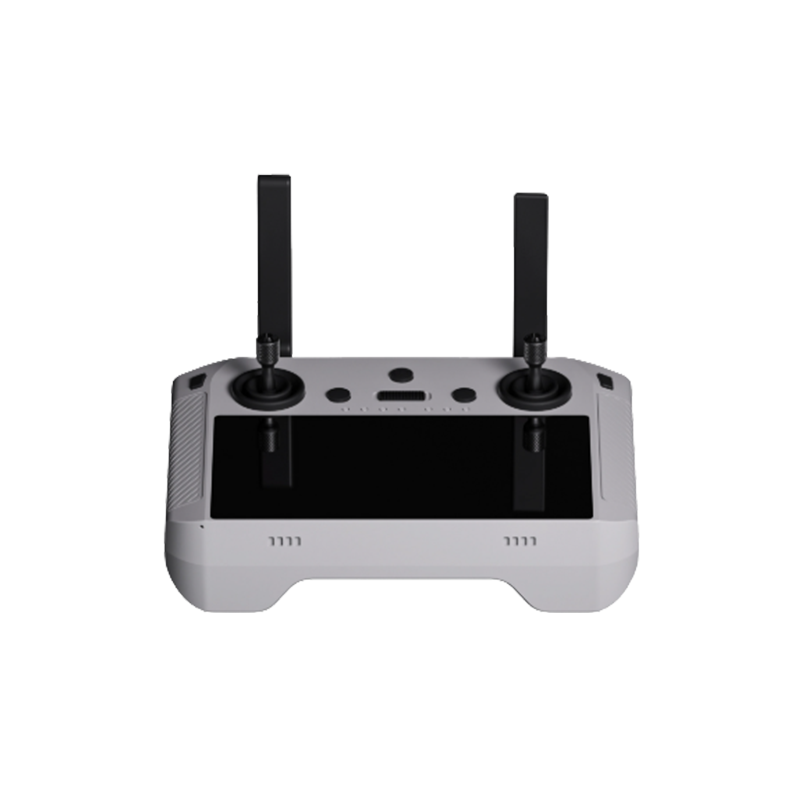

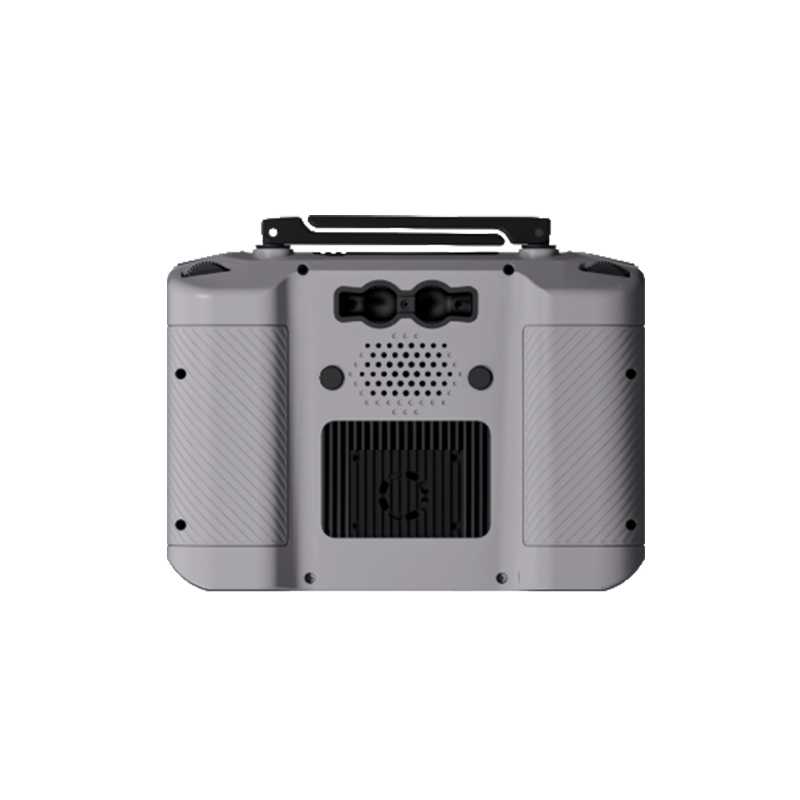

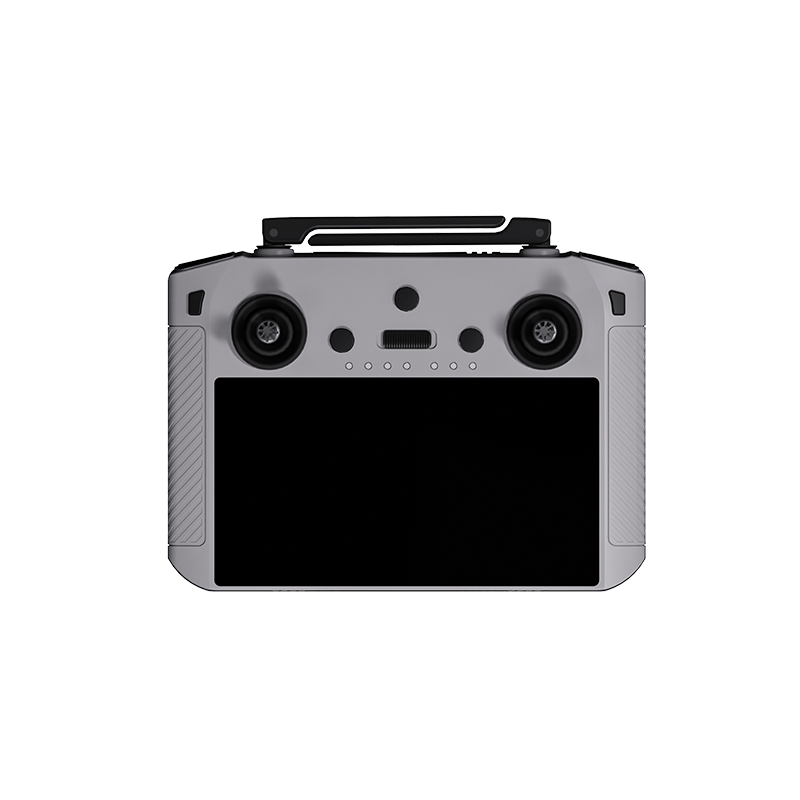

The SCEPTER 15 remote control system is a professional-grade control platform aimed at multi-scenario operations, designed specifically for smart devices such as drones, unmanned ground vehicles, and unmanned boats. The system uses dual-band RF technology (2.4G+5.8G) to build a 32-channel redundant communication architecture, which can achieve stable, beyond visual line of sight (BVLOS) transmission up to 15 kilometers even in complex electromagnetic environments. It supports real-time high-definition video streaming, multi-protocol data transparent transmission, and remote command control. The remote controller is equipped with a 5.5-inch high-brightness touchscreen and an Android smart system, combining professional control with mobile terminal expandability. It can connect to external display devices via HDMI or deploy customized apps, meeting the interactive needs for scenarios like industrial inspection and emergency rescue. The built-in fast-charging battery ensures 4.5 hours of continuous operation. The IP53 protection rating and wide temperature range design adapt to harsh outdoor environments. Coupled with the receiver's multi-interface compatibility (SBus/UART/Network/USB), it can quickly interface with various unmanned devices' control systems, forming a complete remote monitoring and control solution.

4. Packing List (Standard Version)

• Remote Controller * 1 unit

• Receiver * 1 unit

• Charger * 1 piece

• Data cable * 1 piece

• Air Unit Cable Kit * 1 pack

  • INCLUDING:

  • Antenna * 2,

  • Power cable * 1,

  • Network cable * 1,

  • Serial cable * 1

5. Parameter List

Image Transmission

• Antenna: Dual antenna

• Max effective signal distance: 15km

• Operating frequency: 7+7 (2.4G+5.8G)

• Equivalent Isotropically Radiated Power (EIRP): 15dBm-29dBm

Screen

• Resolution: 1920x1080

• Frame rate: 60FPS

• Size: 5.5 inches

• Max brightness: 500cd/m²

• Touch: 5-point touch

WIFI

• WIFI Protocol: IEEE 802.11a/b/g/n/ac

• Operating frequency: 2.4G/5.8G

• WIFI EIRP: 17dBm (Max)

Bluetooth

• Bluetooth Protocol: 5.0

• Bluetooth EIRP: 8dBm (Max)

• Operating frequency: 2.4G

Battery

• Battery capacity: 5000mAh

• Charging time: 1.5 hours (when powered off)

• Charging method: PD 30W fast charge

• Operating endurance: 4.5 hours (Power adaptive mode, 25°C room temp)

General Parameters

• System: Android 11

• Weight: 700g

• HDMI: 1080p

• Operating temp: -10℃~45°C

• Protection rating: IP53

• Hardware Interface: Charging: Type-C, External storage: TF card slot

• Storage: 4G running memory, System storage 32G expandable (Micro SD storage card)

• Dimensions:

  • Length 175mm, Width 137mm, Thickness 47.4mm (without sticks installed)

  • Length 175mm, Width 137mm, Thickness 64mm (with sticks installed)

Receiver Parameters

• Hardware Interface: SBus: 3-Pin

• Data Transmission (Link to flight controller): Uart 4-Pin

• Network Interface: 4-Pin

• USB Interface: 4-Pin

• Remote control signal: 16-channel SBus

• Antenna gain: 3dBi

• Weight (without antenna): 50g

• Operating voltage: 12V-27V

• Operating temp: -10°C~45°C

• Dimensions (without antenna): 57mm x 47mm x 18.1mm
