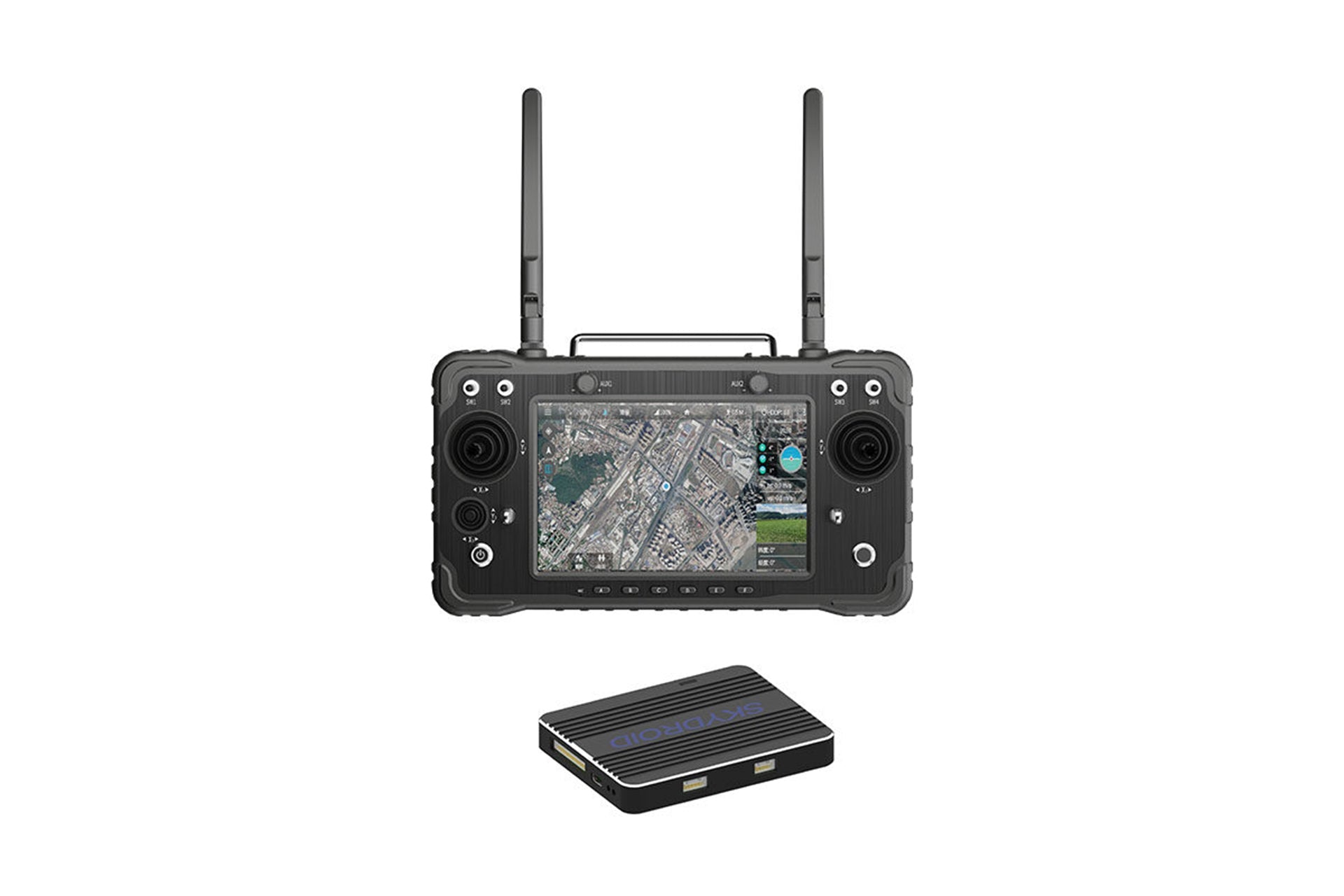

Core Overview
The H16/H16 Pro is a high-performance Android integrated handheld link device designed for industrial-grade applications. It integrates 1080P digital HD video transmission, a 7-inch high-brightness display, an Android intelligent system, and a professional remote controller, specifically designed for drones (multirotors, fixed-wing, etc.), robots, intelligent inspection, and special operations (firefighting, power, surveying, security, border defense). It is an all-in-one ground station solution that enhances work efficiency and reliability in professional fields.
Core Technology Advantages
Ultra-Long-Range HD Video Transmission
H16: 5-10 km; H16 Pro: 20-30 km (measured distance, ideal environment).
1080P Full HD quality, clear and smooth images, providing visual assurance for precise operations.
Professional Ground Station & Intelligent Control
Built-in "Skydroid Ground Station" deeply optimized based on QGC, user-friendly interface, supports intelligent waypoint planning, automatic execution, auto-follow, one-key return, etc., greatly improving task automation and efficiency.
Rich interfaces: HDMI input, RJ45 Ethernet port, dual serial port pass-through, SBUS, Type-C, OTG, TF card slot, etc., can connect to various cameras, gimbals, payloads, sensors, and networks.
Long Endurance & Humanized Design
Built-in 20000mAh high-performance lithium battery, supports 18W fast charging, full charge can sustain 6-20 hours of continuous work (depending on usage mode), meeting all-day operation needs.
Usage Recommendations
- Power/Surveying users: It is recommended to pair with H16 Pro, making full use of its ultra-long-range and ground station intelligent planning functions to efficiently complete tower inspection and terrain measurement.
- Firefighting/Emergency users: The waterproof and dustproof characteristics and stable video transmission of the H16 series are crucial. Choose the model based on typical operational distance.
- Integrators/Developers: The open Android system and SDK are the biggest advantages. Customized applications can be quickly developed based on this, connecting various industry sensors.
Product Parameters

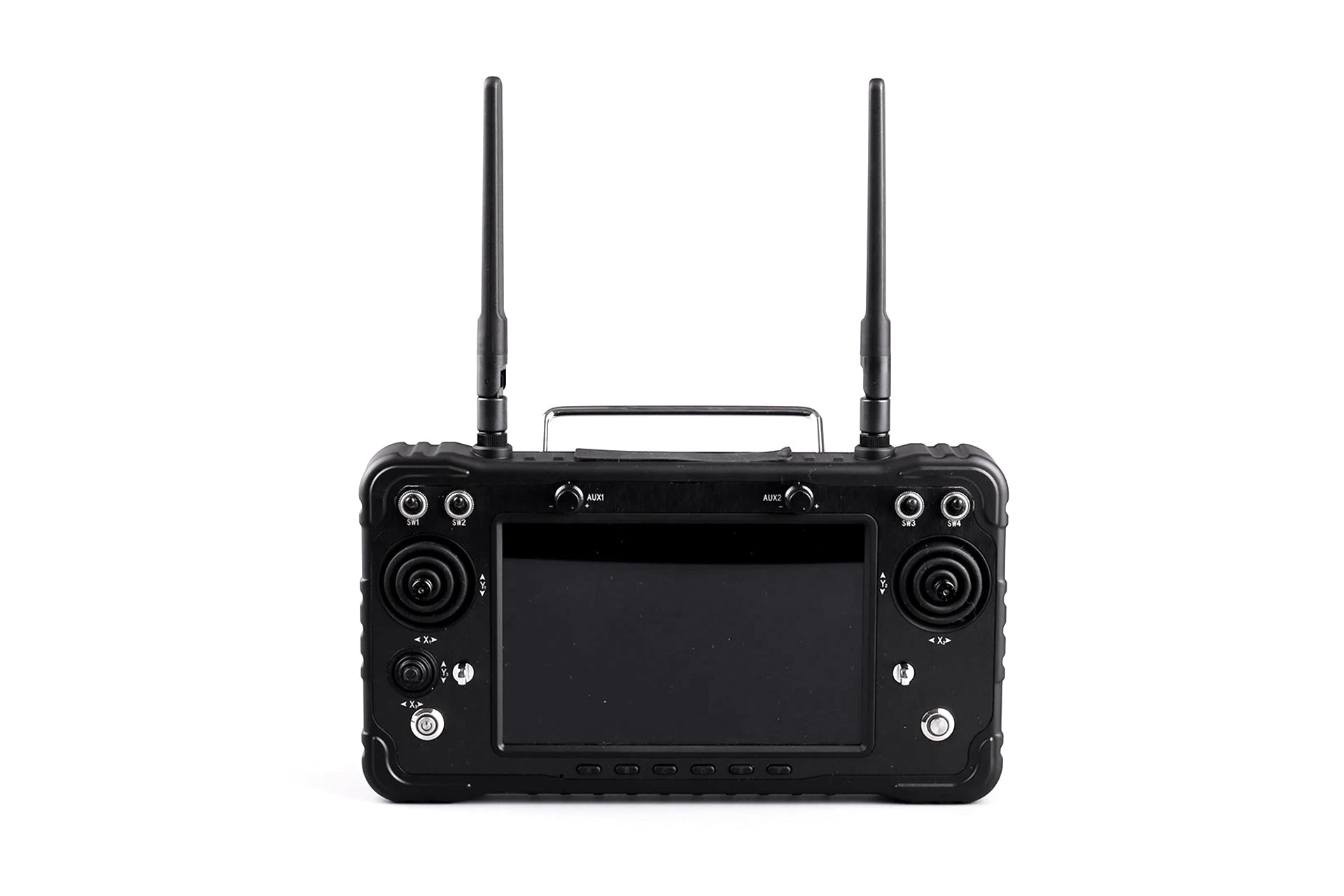

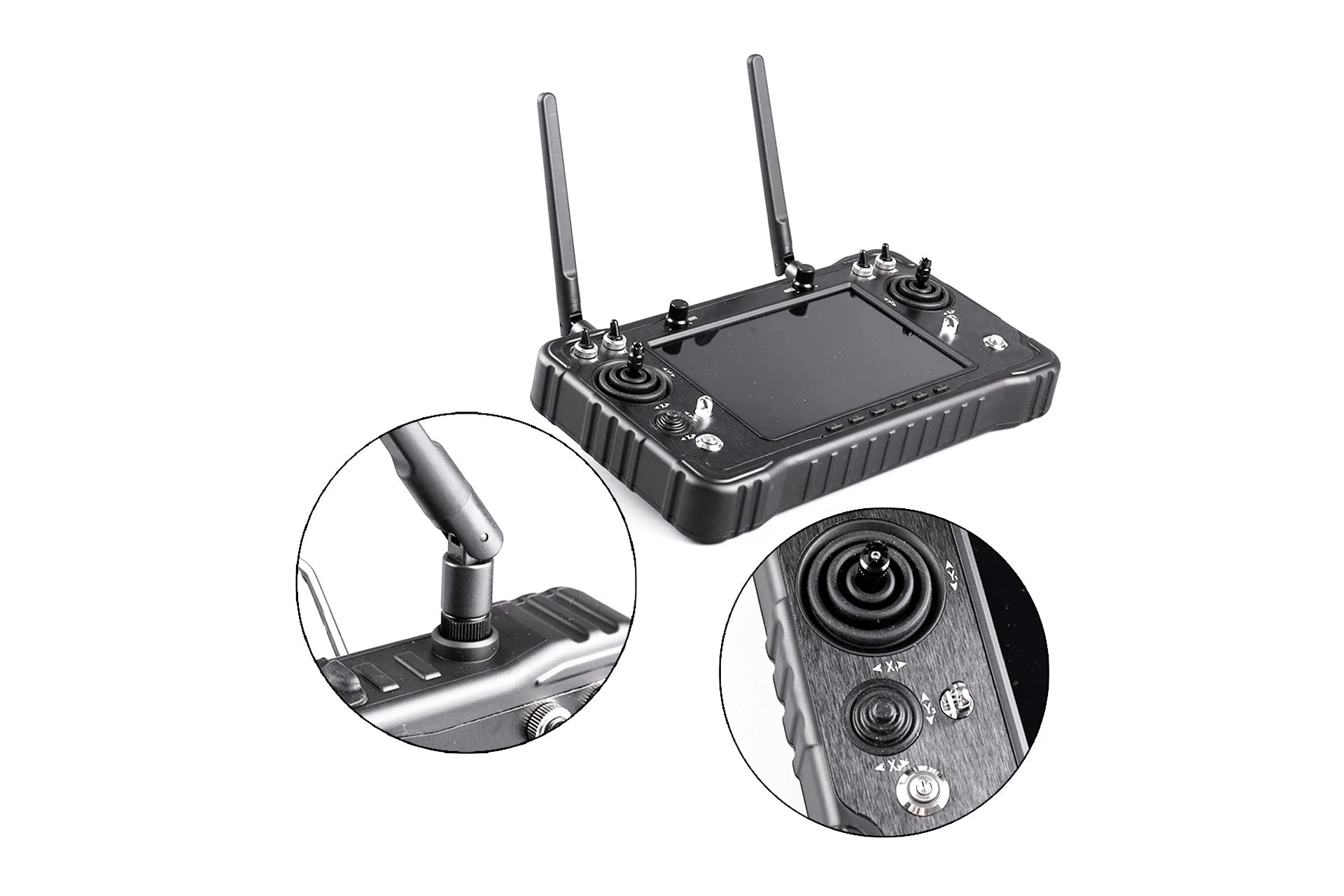

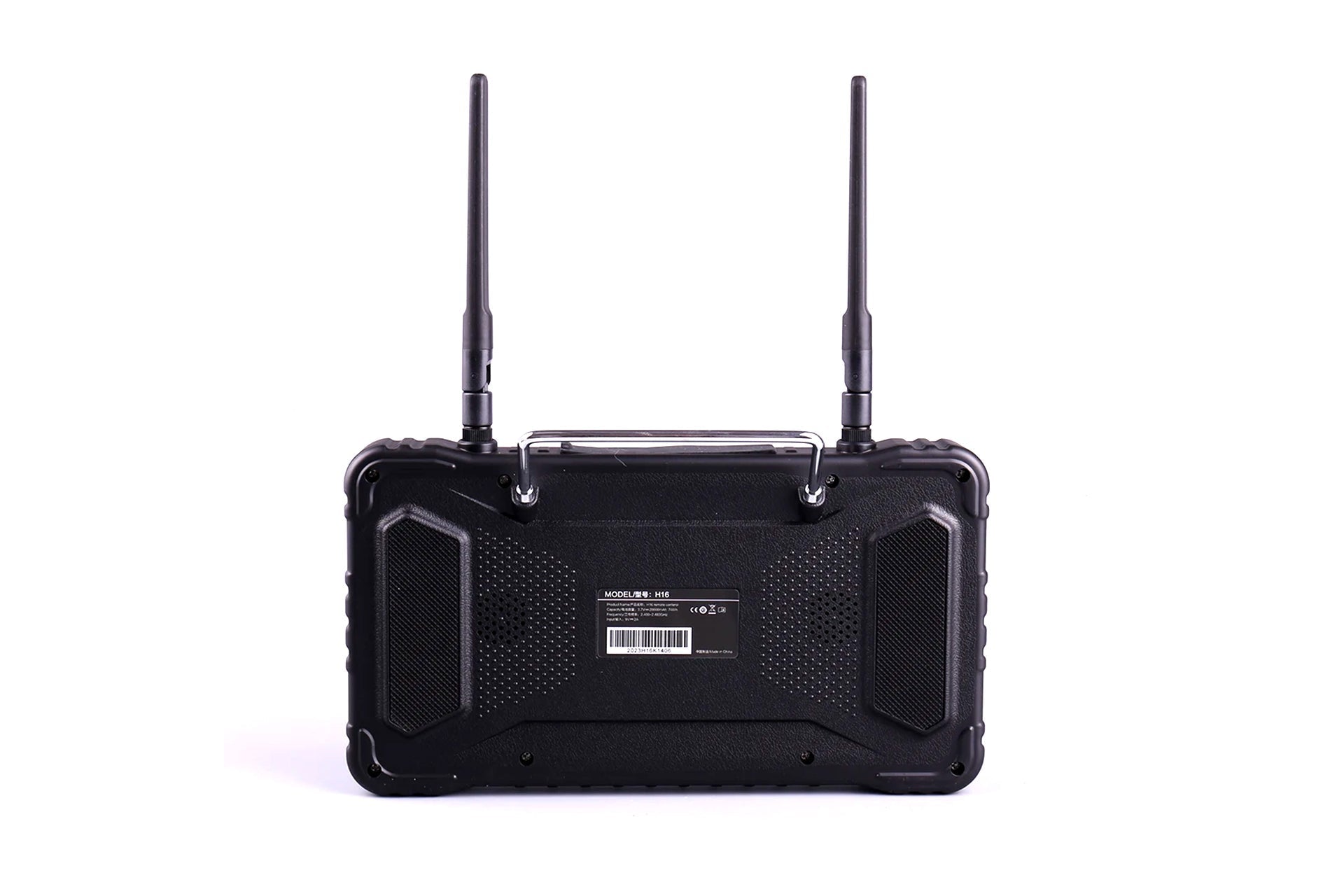

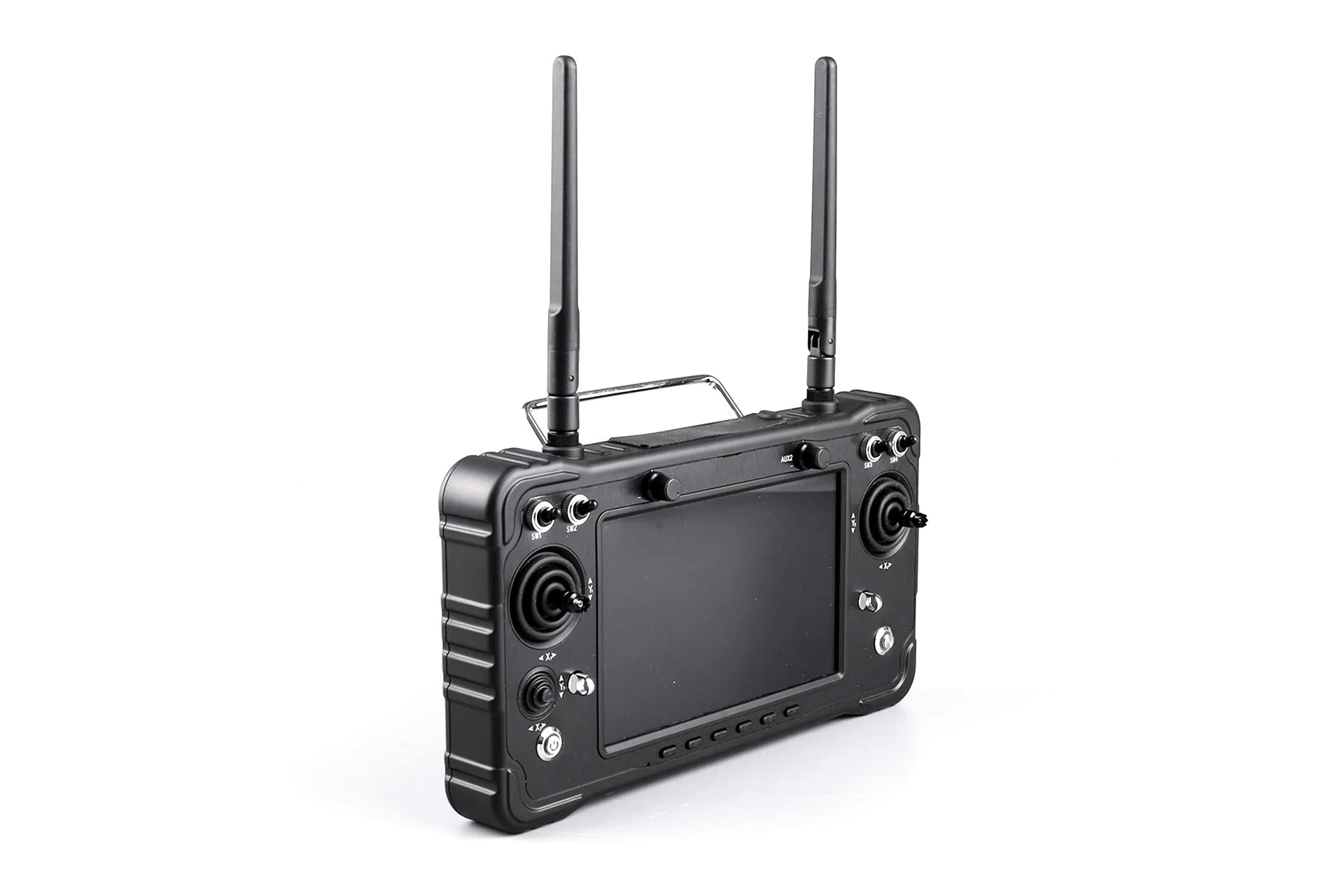

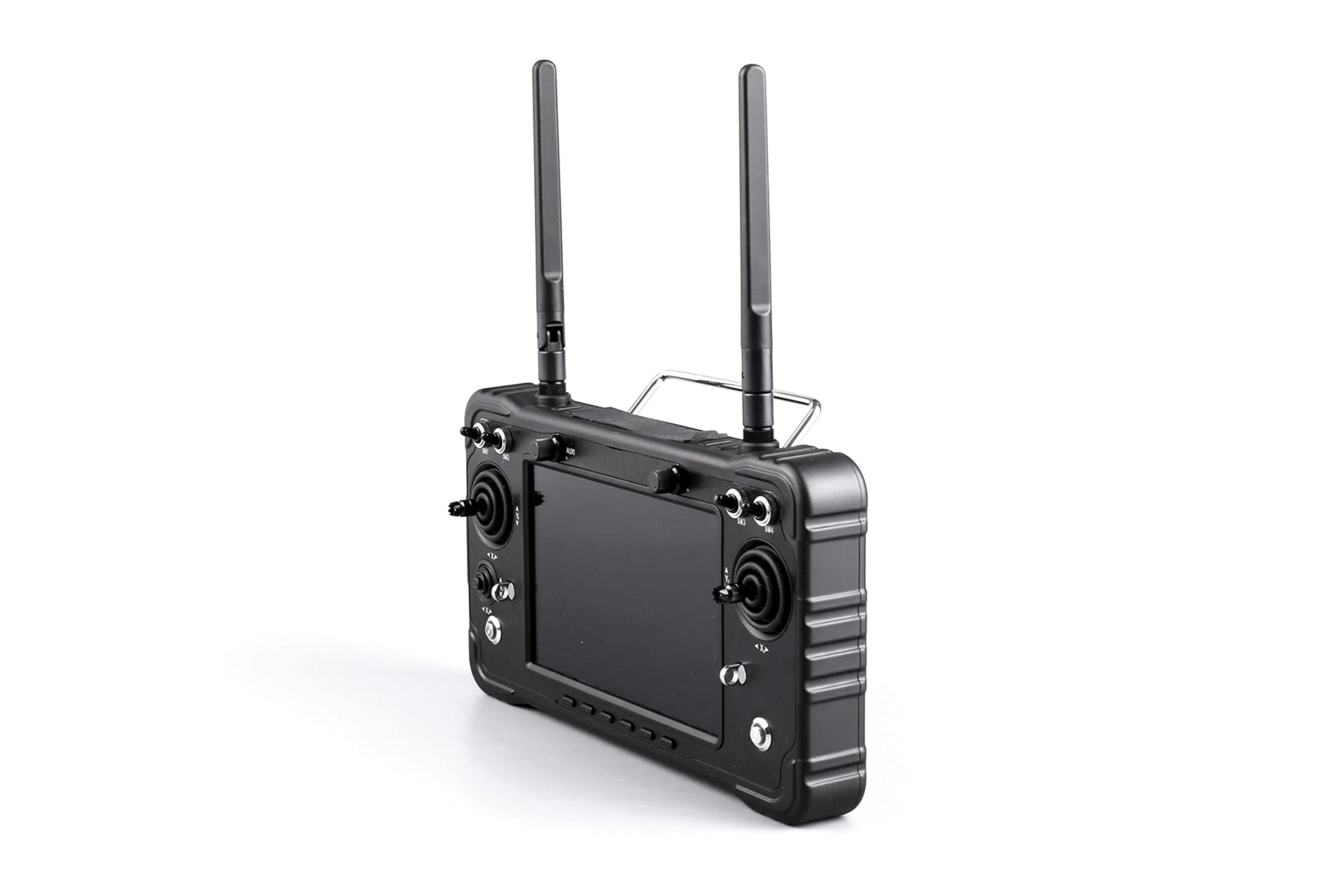

| Remote Controller (H16) | ||
|---|---|---|
| Category | Parameter | Note |
| Model | H16 | |
| Channels | 16 | Supports SBUS/PPM |
| Operating Band | 2.400-2.483GHz | |
| Frequency Hopping Technology | FHSS | Strong anti-interference capability |
| Display | 7-inch High-Brightness Screen | |
| Battery | 20000mAh Lithium Battery | Supports 18W Fast Charging |
| Endurance Time | 6-20 hours | Depends on screen brightness, video transmission power |
| Charging Interface | Type-C | |
| Operating Temperature | -20°C ~ 60°C | Industrial Standard |
| Protection Rating | IP54 (Dustproof, Splash Water Resistant) | |
| Weight | Approx. 1034g (including battery) | |
| Dimensions | 272 * 183 * 94mm | |

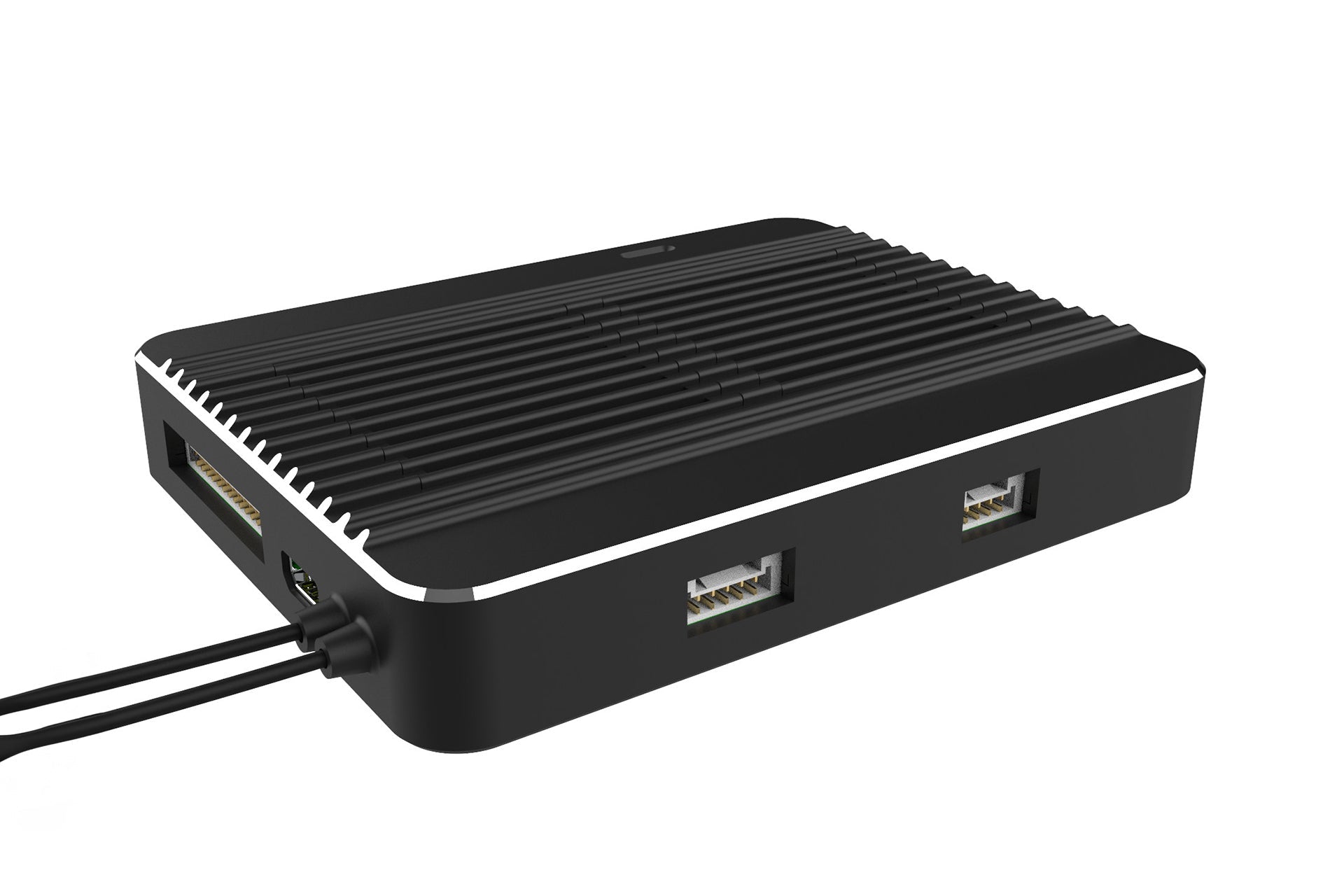

| Receiver (R16) | ||
|---|---|---|
| Category | Parameter | Note |
| Model | R16 | Matching Receiver |
| Operating Voltage | 7.2-72V Wide Voltage | Suitable for various vehicle power sources |
| Weight | 90g | Lightweight Design |
| Dimensions | 76 * 59 * 11mm | |
Frequently Asked Questions (FAQ)
Q1: What is the main difference between H16 and H16 Pro?
A: The main difference lies in the maximum communication distance and RF power. H16 Pro achieves ultra-long-range video transmission and control of 20-30 kilometers, suitable for beyond visual line of sight (BVLOS) operations; H16 is 5-10 kilometers, meeting most conventional operation needs. Other core functions (such as screen, system, interfaces) are basically the same.
Q2: Can the actual working distance reach the nominal value?
A: The nominal distance is measured in an ideal open environment without obstructions and strong interference. The actual distance is affected by environmental obstructions, electromagnetic interference, antenna angle, weather, and other factors.
Q3: Which brands of flight controllers and cameras does it support?
A: Supports mainstream open-source flight controllers (such as PX4, Ardupilot), perfectly compatible with QGroundControl (QGC) ground station. Through HDMI and network interfaces, it can connect to the vast majority of industry-grade cameras, gimbals, and electro-optical payloads. For a specific compatibility list, please consult technical support.
Q4: What is the specific waterproof and dustproof rating?
A: The whole unit achieves IP54 protection rating, effectively preventing dust ingress and protecting against water splashes from all directions.
1. Remote Controller Specifications
| Item | Specification | Item | Specification |
| Product Model | H16 | Number of Channels | 16 |
| Working Voltage | 4.2V | RF Power | 20dB@CE / 23dB@FCC |
| Frequency Band | 2.400 - 2.483GHz | Freq. Hopping | New FHSS |
| Upgrade Method | App Online Upgrade | Weight | 1034g |
| Dimensions | $272 \times 183 \times 94$mm | Battery | 20000mAh |
| Battery Life | 6 - 20 Hours | Charging Port | TYPE-C |
| Applications | Helicopters, Fixed-wing, Multi-rotors, Vehicles, and Boats |
| Item | Specification | Item | Specification |
| Product Model | H16 | Number of Channels | 16 |
| Working Voltage | 4.2V | RF Power | 20dB@CE / 23dB@FCC |
| Frequency Band | 2.400 - 2.483GHz | Freq. Hopping | New FHSS |
| Upgrade Method | App Online Upgrade | Weight | 1034g |
| Dimensions | $272 \times 183 \times 94$mm | Battery | 20000mAh |
| Battery Life | 6 - 20 Hours | Charging Port | TYPE-C |
| Applications | Helicopters, Fixed-wing, Multi-rotors, Vehicles, and Boats |
