Intelligent Battery Charger - EV-PEAK UD3 High-Power Drone Charger

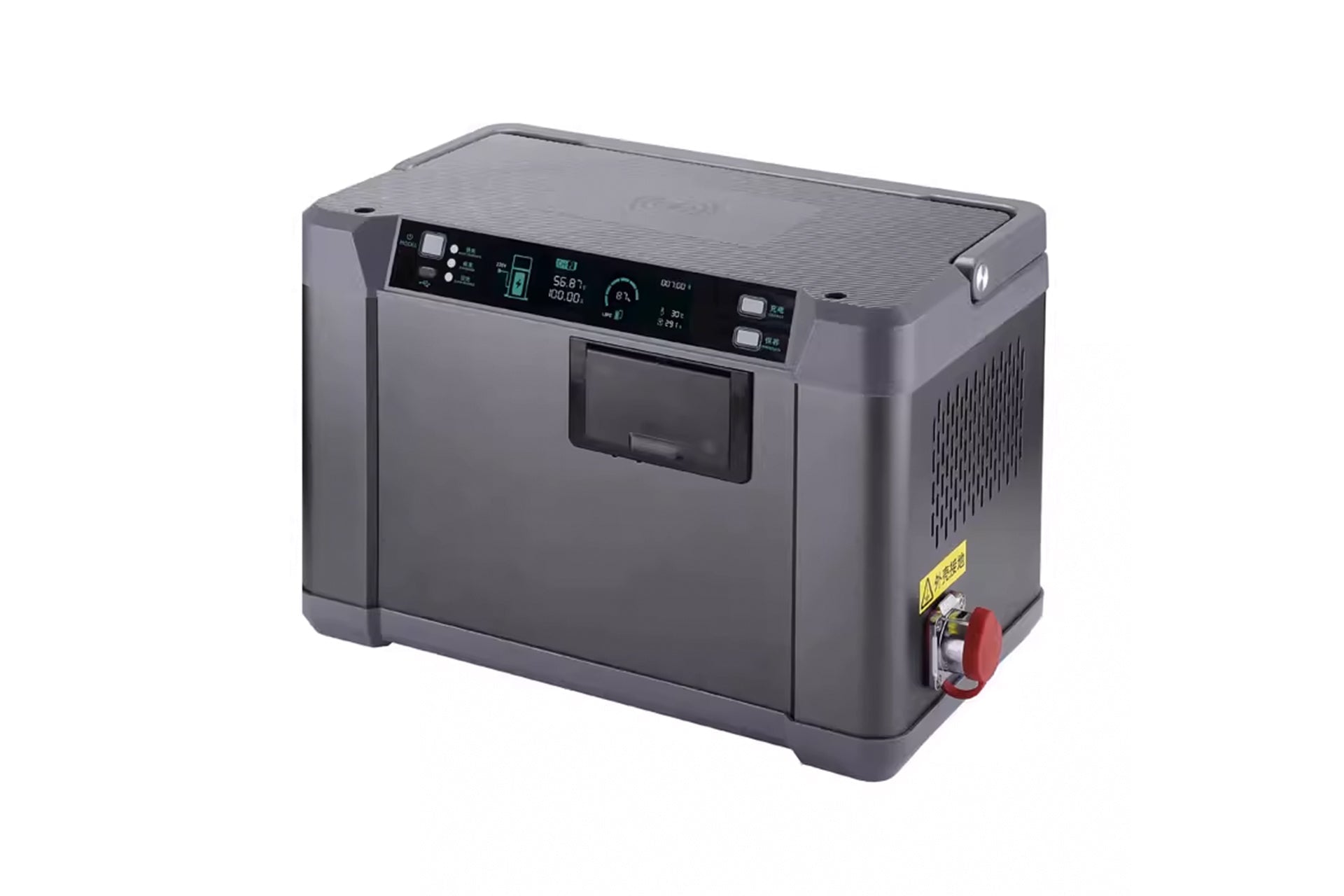

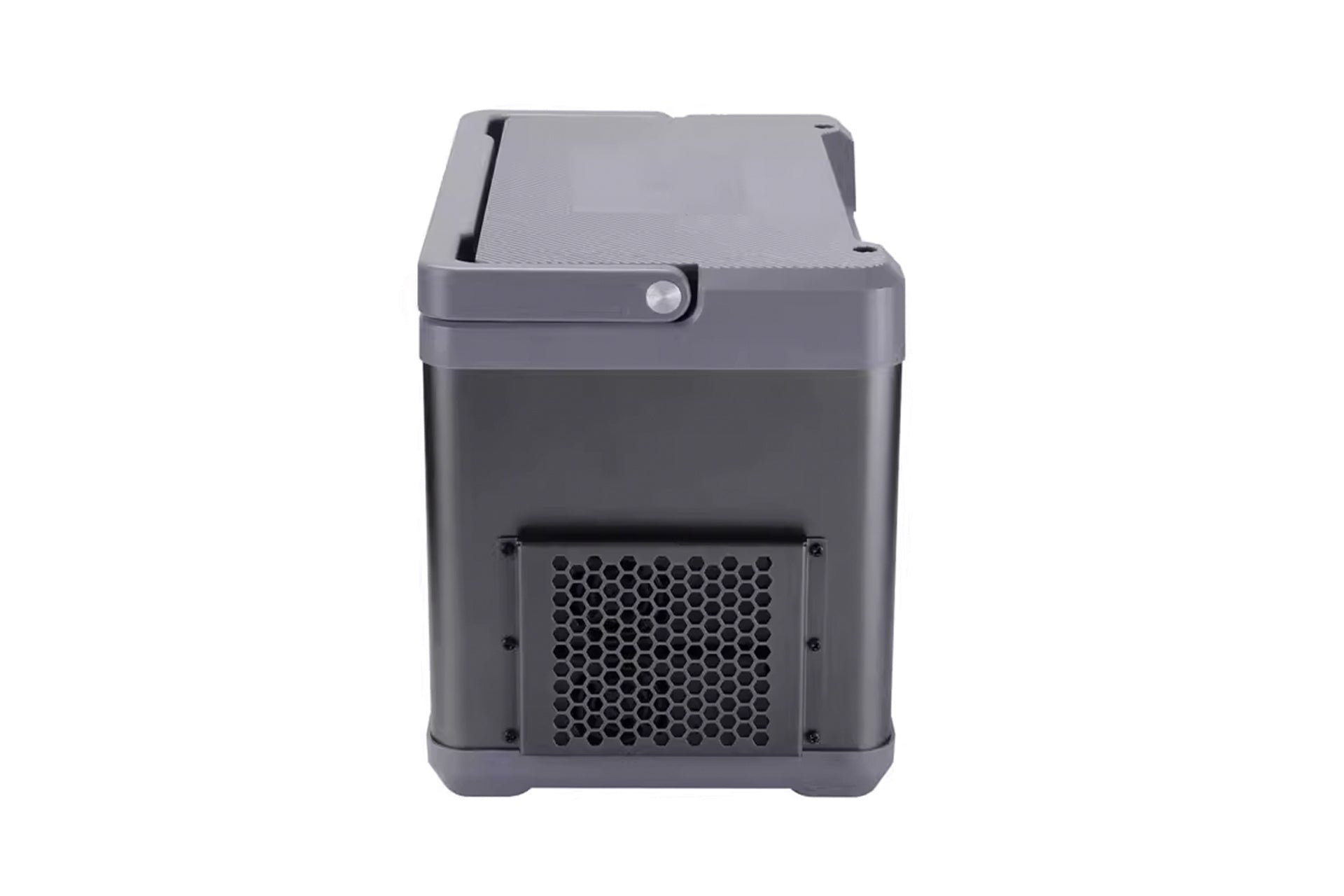

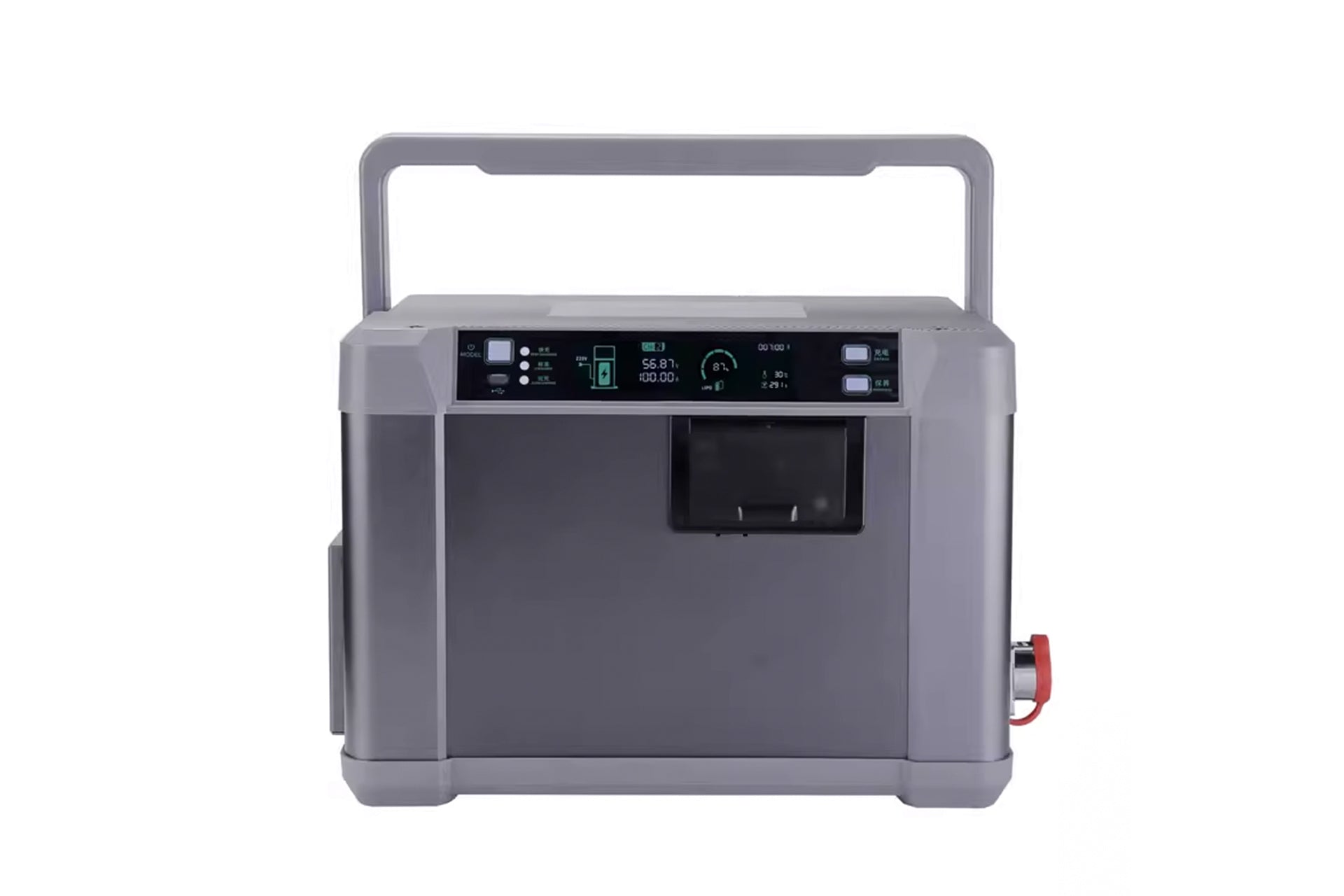

EV-PEAK UD3 Intelligent High-Power Drone Battery Charger
Details

EV-PEAK UD3 Industrial Smart Battery Charger

Dual-Channel Independent

Charge 2 battery packs simultaneously


Ultra‑Fast Charging

100A / 6000W high power


Multi‑Protection

Overcharge / Reverse / Short‑circuit


Bluetooth Remote

Monitor charging via smartphone

EV-PEAK UD3 is a smart charger purpose‑built for agricultural drones, integrating wireless charging, Bluetooth remote control, and four charging channels. Both sides feature anti‑overcharge and overcharge protection circuits for enhanced safety and durability. It supports 2CH with 4 working modes. In fast‑charge mode, it delivers up to 100A current, charging a 28000mAh battery in just 9 minutes. The charger automatically identifies battery type, channel, voltage, and current. AI voice broadcast announces charging status, and Bluetooth remote makes operation effortless. The intuitive interface displays battery voltage, power, instant graph, endurance time, plug voltage, temperature, and battery type. The comprehensive protection system covers over‑current, over‑voltage, over‑temperature, short‑circuit, and reverse‑polarity protection, ensuring safe and reliable charging. It also features both charge and storage modes, with 2 intelligent magnetic channels supporting active balancing, compatible with 12‑14S batteries, and a maximum output power of 6000W.

Dual‑channel independent charging 100A / 6000W ultra‑fast charging Supports 12‑14S LiPo batteries Multi‑protection: overcharge, reverse, short‑circuit Bluetooth remote + voice broadcast Wireless charging + active balancing
Note: Please confirm battery type (LiPo / LiHV / Smart) and cell count (12‑14S) before use. Ensure the input voltage is within 100‑240V AC and use a grounded outlet.
Specifications
Input Voltage 100‑240V AC
Output Power Max. 6000W
Charge Current Max. 100A
Balance Accuracy ±20mV
Battery Cells 12~14S
Battery Types LiPo / LiHV / Smart Battery
Dimensions 300*180*215mm
Weight 6.8 KG
Frequently Asked Questions
Q1: Can a 28000mAh battery truly be fully charged in just 9 minutes under fast‑charge mode?
Yes. Under the maximum 100A fast‑charge mode, a 28000mAh battery can theoretically be charged in 9 minutes. Actual time may vary slightly depending on initial battery level, temperature, and health, but it is significantly faster than traditional chargers.
Q2: Can both channels charge batteries with different voltages or capacities simultaneously?
Yes. The UD3 supports independent charging for 2 groups of 12‑14S batteries. It intelligently identifies each battery’s voltage, current, and type, with no interference between channels – ideal for farm operations with multiple battery swaps.
Q3: How does the wireless charging function work in real‑world field scenarios?
Simply place the battery on the designated area of the charger and it begins charging automatically – no cable plugging needed. This is especially convenient for frequent battery changes in the field, reducing connector wear and saving time.
Q4: What is the effective Bluetooth range? Can I monitor the charger remotely from the drone operation site?
Bluetooth range is typically about 10‑15 meters (depending on environment), suitable for setup and status monitoring near the charger. Dealers can use the mobile App to start/stop, switch modes from a warehouse or service vehicle without approaching high‑voltage equipment.
Q5: Will the multi‑protection system automatically cut off power in case of reverse connection or short circuit?
Yes. The charger incorporates reverse‑polarity and short‑circuit protection. Upon detecting any abnormality, it immediately shuts off output and triggers an alarm, safeguarding both the device and batteries, and reducing risks in field operations.
Q6: What is the difference between storage mode and charge mode, and how can dealers benefit from storage mode?
Charge mode is for rapid recharging during operations. Storage mode charges or discharges the battery to the optimal storage voltage (usually 3.8V/cell) to extend battery life. Dealers can process multiple batteries in bulk during off‑season, reducing maintenance costs.
Q7: Is the active balancing function effective for aged batteries?
Active balancing dynamically adjusts cell voltages during charging, which can improve performance for batteries with slight inconsistencies. However, severely damaged batteries should be replaced. This feature extends overall pack life and reduces replacement frequency.
Q8: Weighing 6.8kg, is it convenient to move and carry?
With dimensions of 300*180*215mm and a built‑in handle, the charger is designed for easy transport in service vehicles, meeting the needs for mobile charging at various job sites.
What's in the Box
UD3 Smart Charger Unit × 1 AC Power Cord × 1 User Manual × 1
Note: Batteries are not included in the standard package. Please purchase compatible batteries separately if needed.
You May Also Like
EV-PEAK UD1 3000W 60A 4‑Channel Charger
4‑Channel Independent

EV-PEAK UD1 3000W 60A 4‑Channel Charger

Four independent channels, 60A high current, supports 6‑14S, voice broadcast + Bluetooth remote, industrial‑grade.
3000W / 60A 6‑14S
View Details

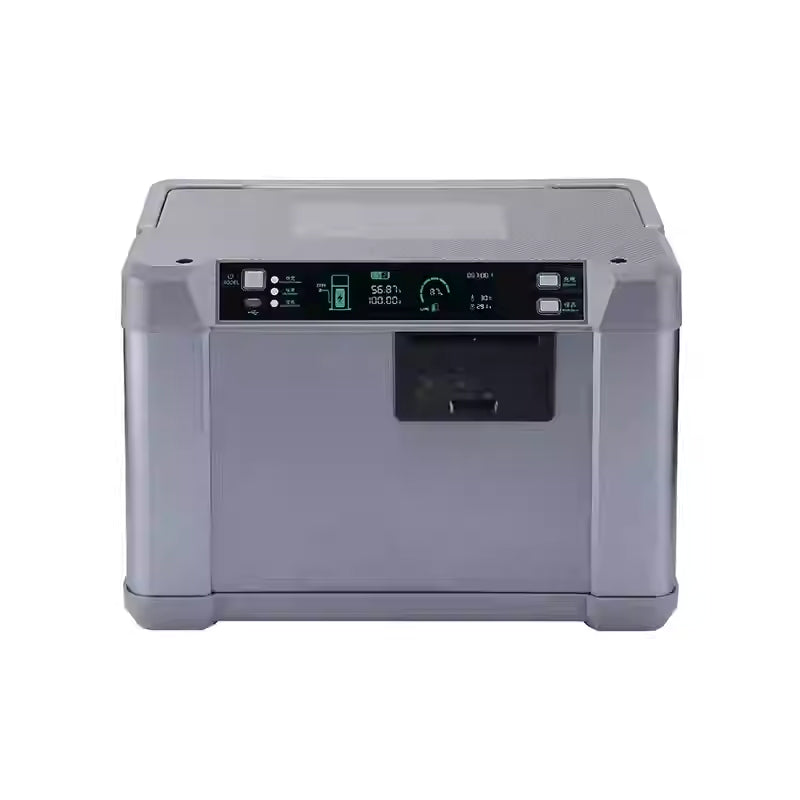

EV-PEAK UD2 Intelligent Dual‑Channel Charger
3000W High Power

EV-PEAK UD2 Intelligent Dual‑Channel Charger

Dual‑channel independent, 50A high current, supports 14‑20S high‑cell‑count batteries, voice broadcast + wireless charging.
3000W / 50A 14‑20S
View Details

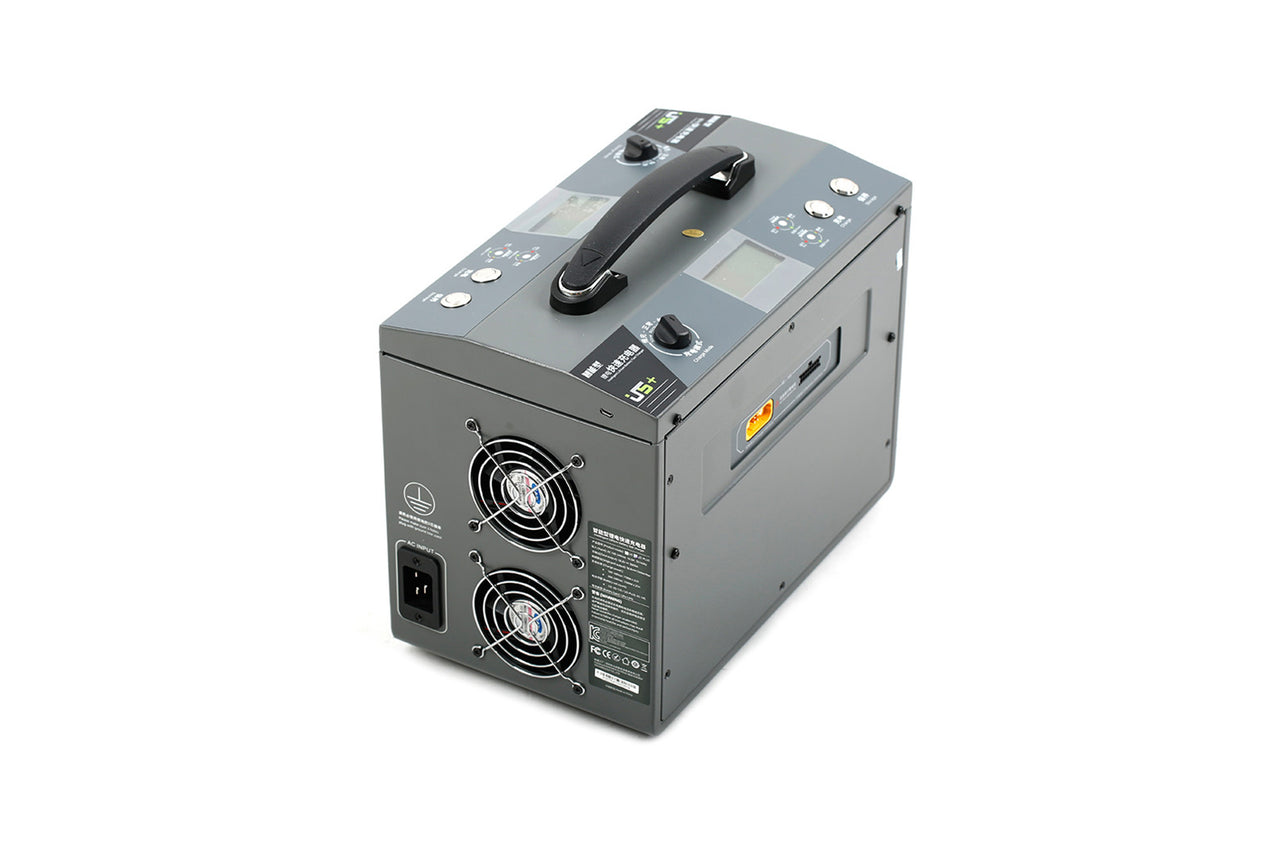

EV-PEAK U5+ 3000W 30A Balance Charger
