Application Scenarios
This lighting lamp is mainly used for nighttime lighting of unmanned aerial vehicles (UAVs), especially for continuous lighting of tethered UAVs.
Product Advantages
- Wide input voltage range.
- Stays on continuously when turned on.
- Lightweight, high luminous flux, and low power consumption.

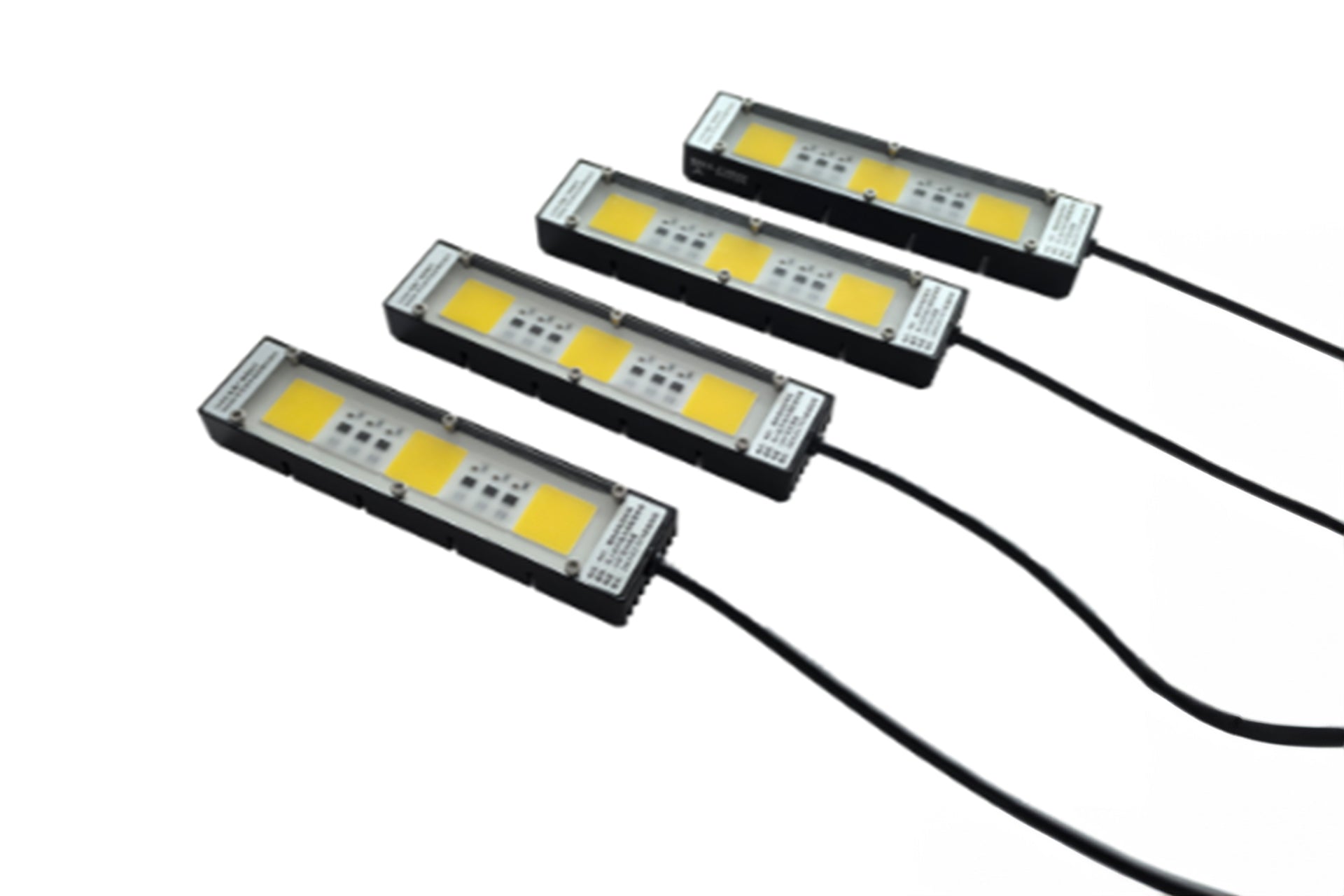

- The heat sink is equipped with an M4 base, allowing unlimited parallel connection of additional lamps.
Notes
- Customers can independently design the automatic switch for the device; the use of a relay is recommended (the product does not include relays or other accessories).
- If connecting to DJI-series intelligent batteries, disconnect the main lamp wire connector first when turning off the lamp. This prevents failure to shut down the intelligent battery and potential battery damage, for which the user shall bear full responsibility.
Technical Parameters (Standard Version)
| Serial Number | Item | Parameter | Remarks |
|---|---|---|---|

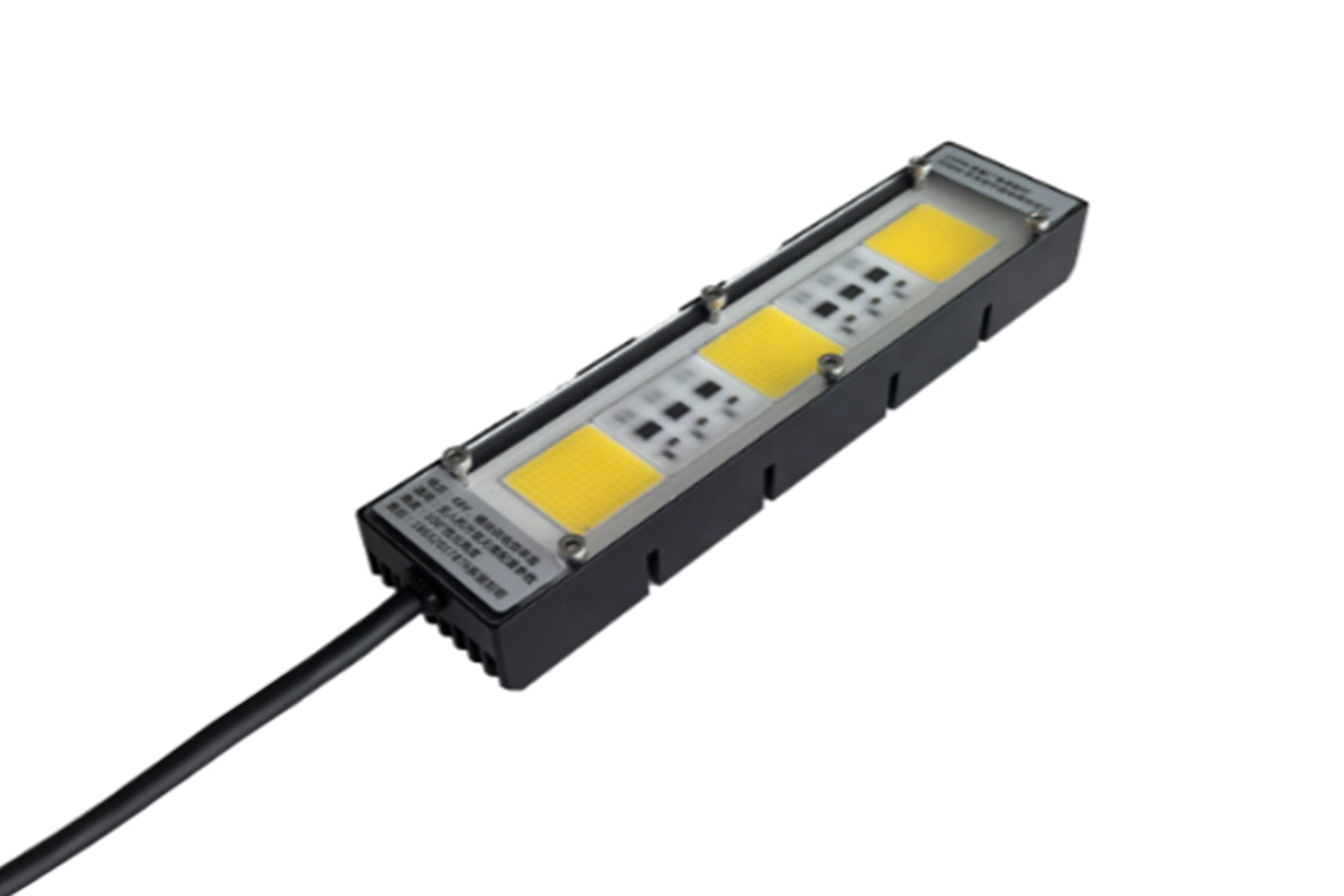

| 1 | Model | AF-L800 | UAV Lighting Lamp |
| 2 | Weight | 200g | Excluding straps |
| 3 | Dimension | 190mm44mm22mm | Length * Width * Height |
| 4 | Power | 150W | Sufficient heat dissipation; full-load power is 150W |
| 5 | Input Power Supply | 45-52Vdc | |
| 6 | Current | 3-3.2A | |
| 8 | Operating Mode | Lights up immediately after power-on | Optional control wire is available |
| 9 | LED Lamp Bead | COB | |
| 10 | Luminous Flux | 26000lm | Calculated value; not actually tested |
| 11 | Binding Arm Diameter | 20~40cm | Maximum diameter D=40cm; otherwise, the strap is prone to breakage |
Technical Parameters (High-Voltage Version)
| Serial Number | Item | Parameter | Remarks |
|---|---|---|---|
| 1 | Model | AF-L800 High-Voltage Board | UAV Lighting Lamp |
| 2 | Weight | 200g | Excluding straps |
| 3 | Dimension | 190mm44mm22mm | Length * Width * Height |
| 4 | Power | 150W | Sufficient heat dissipation; full-load power is 150W |
| 5 | Input Power Supply | 380-420Vdc | |
| 6 | Current | 3~4A | |
| 8 | Operating Mode | Lights up immediately after power-on | |
| 9 | LED Lamp Bead | COB | |
| 10 | Luminous Flux | 26000lm | Calculated value; not actually tested |
| 11 | Binding Arm Diameter |
