Basic Parameters

Item	Specification	Item	Specification

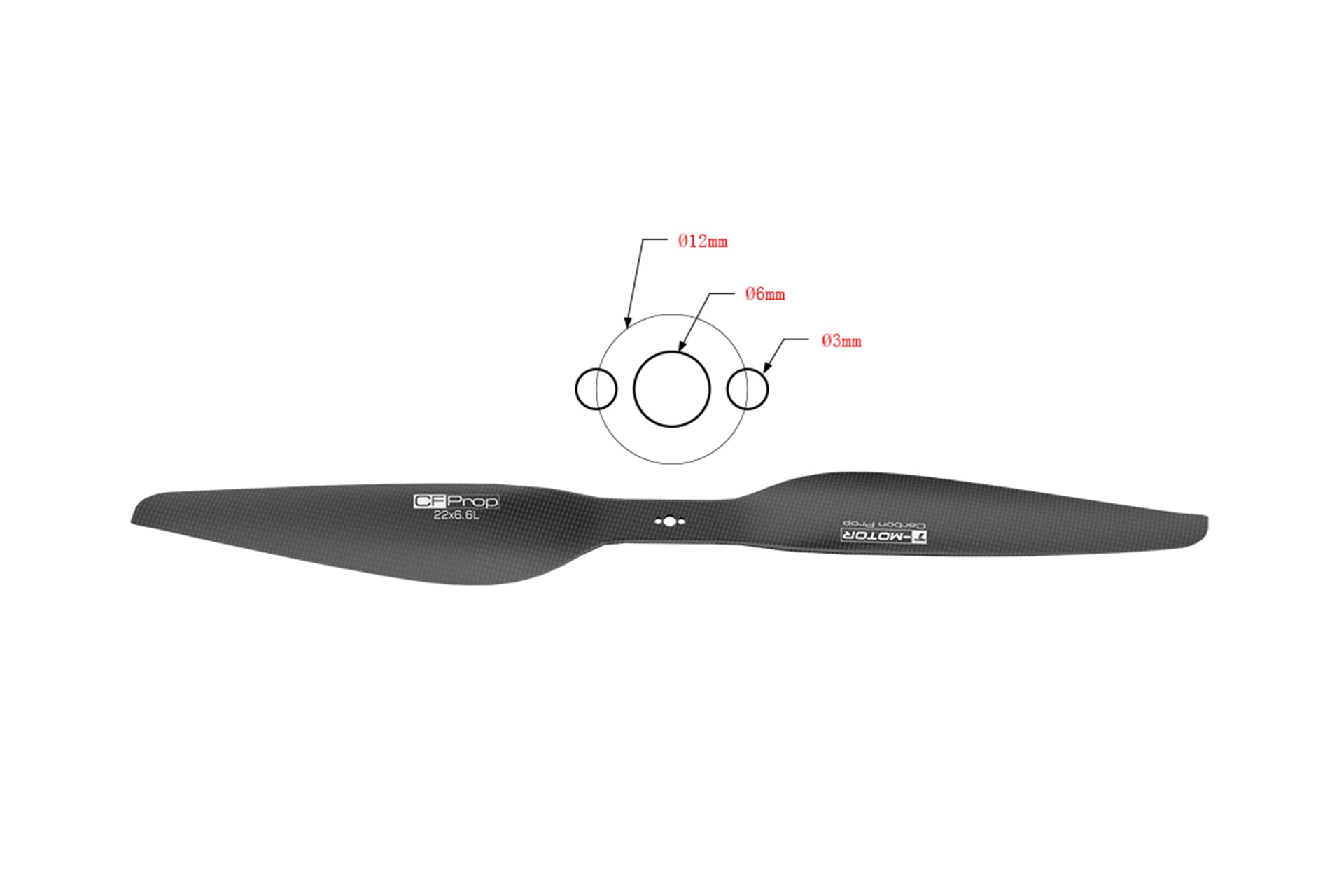

Model	22 × 6.6 inch (558.8 mm × 167.6 mm)	Type	Integrated Frame
Reference Single Blade Weight	45 ± 2 g	Material & Process	Carbon Fiber + Resin
Maximum Static Thrust	11.5 kg	Operating Temperature	-40°C ~ 65°C
Optimal RPM Range	2800 – 4800 RPM	Storage Temperature / Humidity	-10°C ~ 50°C / < 85%
Surface Treatment	Polished Surface

Propeller Specifications

Model (Diameter × Pitch)	Center Hole ID	Mounting Hole Spacing (Diameter)	Screw Specification	Weight per Piece (Average)	Optimal Operating Speed (RPM)	Thrust Limit
8×2.7 (203.2×68.6mm)	5mm	9mm (Dual holes)	M2	4.1±0.5g	-	-
10×3.3 (254×83.8mm)	6mm	12mm (Dual holes)	M3	8.1±1.0g	-	-
11×3.7 (279.4×93.9mm)	6mm	12mm (Dual holes)	M3	11.1±1.0g	-	-
12×4 (304.8×101.6mm)	6mm	12mm (Dual holes)	M3	14.5±1.5g	5000~9000	4.0kg
13×4.4 (330.2×111.8mm)	6mm	12mm (Dual holes)	M3	14.2±1.5g	5000~8000	4.5kg
14×4.8 (355.6×121.9mm)	6mm	12mm (Dual holes)	M3	15.0±1.5g	4500~7500	5.0kg
15×5 (381×127mm)	6mm	12mm (Dual holes)	M3	21.0±1.5g	5200~7000	6.0kg
16×5.4 (406.4×137.2mm)	6mm	12mm (Dual holes)	M3	25.0±1.5g	4000~6000	7.0kg
17×5.8 (431.8×147.3mm)	6mm	12mm (Dual holes)	M3	26.5±1.5g	3500~6000	7.5kg
18×6.1 (457.2×154.9mm)	6mm	12mm (Dual holes)	M3	31.5±1.5g	3000~6000	8.2kg
19×5.7 (482.6×144.8mm)	6mm	12mm (Dual holes)	M3	41.0±2g	3000~5000	9.0kg
20×6 (508×152.4mm)	6mm	12mm (Dual holes)	M3	47.0±2g	3000~5500	10.0kg
21×6.3 (533.4×160mm)	6mm	12mm (Dual holes)	M3	58.0±2g	2900~5000	10.8kg
22×6.6 (558.8×167.6mm)	6mm	12mm (Dual holes)	M3	45.0±2g	2800~4800	11.5kg
24×7.2 (602.4×198.1mm)	10mm	20mm (Four holes)	M3	56.0±2g	2400~4500	15.0kg
26×7.8 (660.4×198.1mm)	10mm	20mm (Four holes)	M3	69.0±3g	1900~4000	18.0kg
27×8.1 (685.8×205.7mm)	10mm	20mm (Four holes)	M3	83.0±3g	1900~3800	20.5kg
28×8.4 (711.2×213.4mm)	10mm	20mm (Four holes)	M3	74.0±3g	1500~3700	23.0kg
29×8.7 (736.6×221mm)	10mm	20mm (Four holes)	M3	92.0±4g	1400~3600	25.0kg
30×10 (762×254mm)	10mm	20mm (Four holes)	M3	93.0±4g	1800~3500	28.0kg

The product list is as follows:

---

Environmental Conditions

• Operating Temperature: -40°C ~ 65°C
• Storage Temperature: -10°C ~ 50°C
• Storage Humidity: <85% RH (No condensation)

Precautions

1. Propellers marked “L” rotate counterclockwise when used with a motor (viewed from the front); propellers marked “R” rotate clockwise when used with a motor (viewed from the front).

2. Propellers are rigid structures. During high-speed rotation, contact with fragile or unprotected parts of the human body may cause severe injury. Use with extreme caution.

3. The propeller structure has been sufficiently strength-tested. Please operate reasonably within the recommended maximum thrust range. Exceeding the maximum thrust limit may cause blade damage. Do not attempt to test blade strength by bending or similar methods, as the force conditions differ greatly from actual flight and may also cause damage.

4. Before use, carefully check whether the propeller mounting screws are properly installed. The propeller must be securely mounted in place.

5. Before each flight, check whether the mounting screws are tightened. If the propeller is damaged or cracked, there is a risk of blade fracture—replace it immediately.

6. When storing propellers, avoid corrosive gases, harmful environments, temperatures exceeding -40°C ~ 0°C, and humidity above 80%. Pay special attention during long-term storage.

7. When installing the propeller on the motor, be sure to apply medium or higher strength threadlocker to the mounting screws.

8. Please comply with local laws and regulations when using this product.
