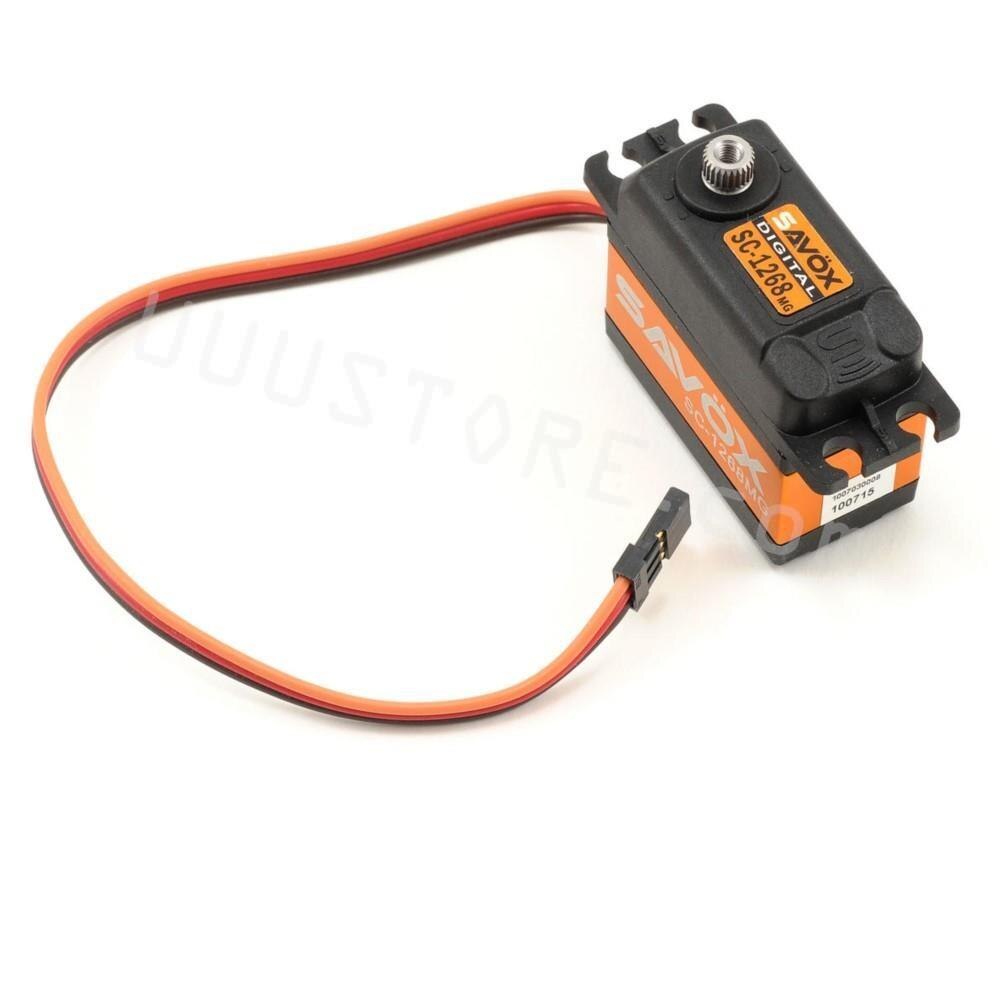

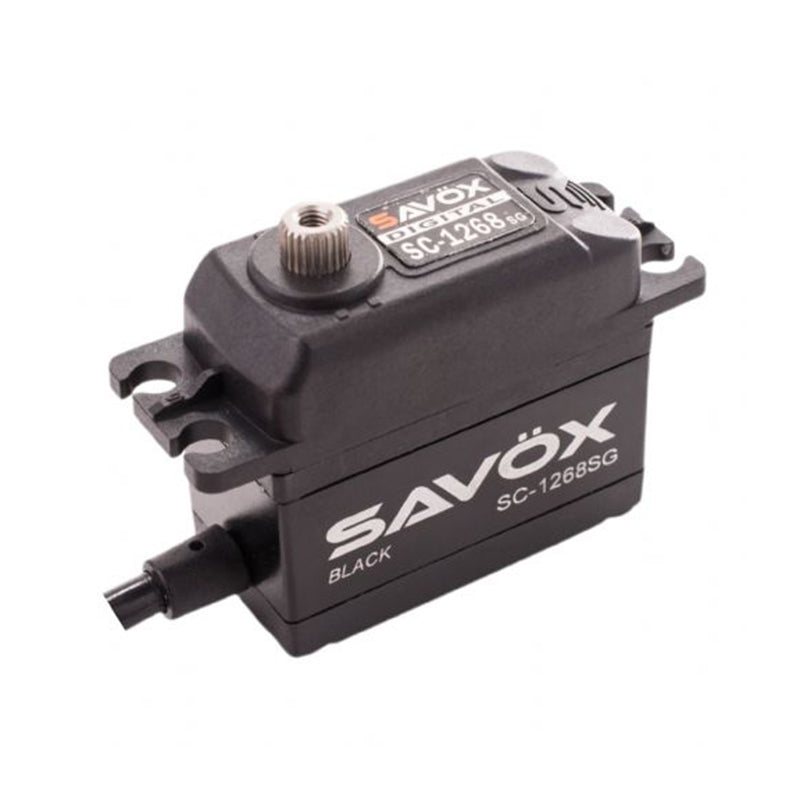

This is the Savox SC-1268SG High Torque Steel Gear Digital Servo (High Voltage). Savox have now released their 'High Voltage' servo line that can be powered by a unregulated LiPo battery! These servos  These servos also feature a redesigned motor/controller unit, and use a 'bullet proof' all steel gear set for unmatched strength.

Features:

• Combines leading edge technology with super high 12 bit (4096) resolution.
• Higher performance due to increased voltage and improved technology
• Incredible torque
• Increased transit speed
• Increased efficiency
• Water resistant with 4 silicon seals implanted
• Strong and precise-made steel gears
• Suitable for 1/8th nitro racing and large scale aircraft, 600 and 700 class helicopters.

TECHNICAL SPECS:

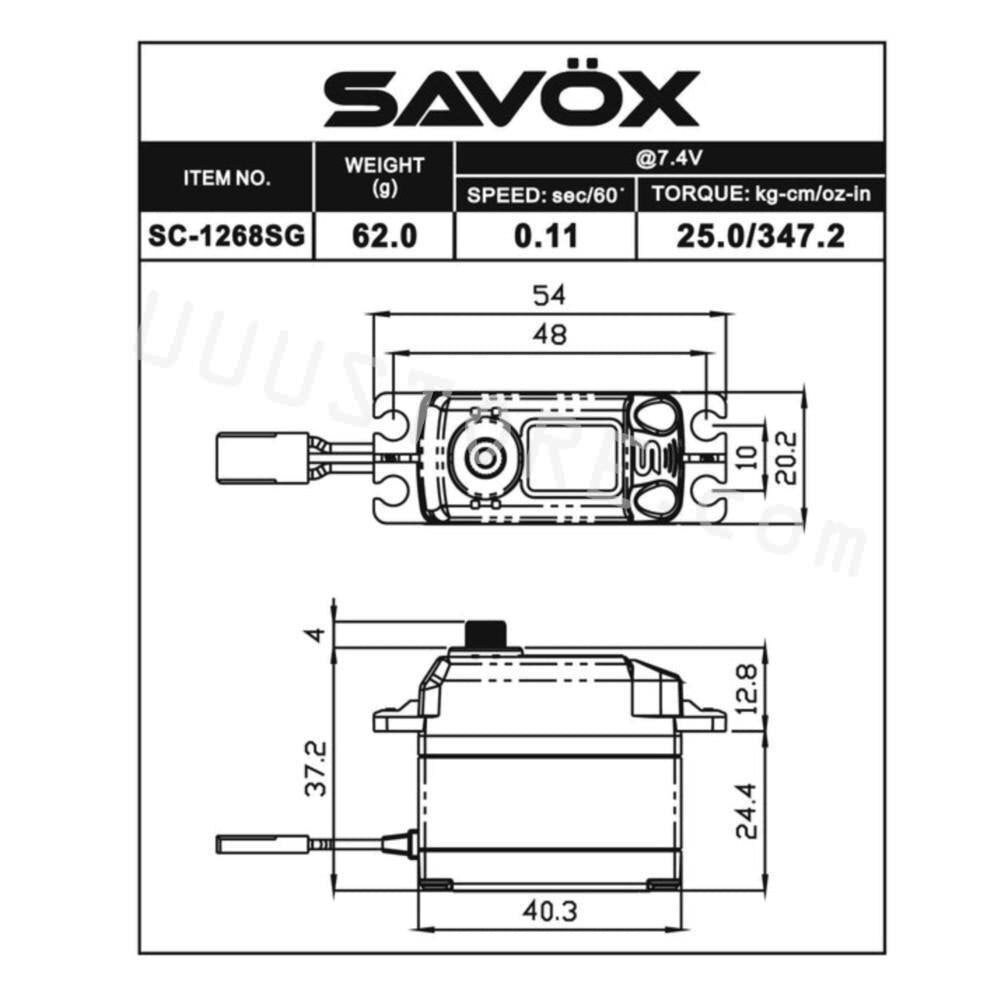

• Dimensions(mm): 40.3x20.2x37.2
• Weight(g): 62.0
• Speed(@4.8V sec/60): .15
• Torque(@4.8V oz-in): 160.0
• Speed(@6.0V sec/60): .13
• Torque(@6.0V oz-in): 208.3
• Speed(@7.4V sec/60): .11
• Torque(@7.4V oz-in): 347.2
• Gear: Unique Steel
• Bearing: 2BB
• Case: Aluminum
• Running current (at no load): 100 mA @ 4.8V
• Running current (at no load): 120 mA @ 6.0V
• Running current (at no load): 150 mA @ 7.4V
• Stall current (at locked): 2500 mA @ 4.8V
• Stall current (at locked): 3000 mA @ 6.0V
• Stall current (at locked): 3500 mA @ 7.4V
• Idle current (at stopped): 5 mA @ 4.8V
• Idle current (at stopped): 5 mA @ 6.0V
• Idle current (at stopped): 5 mA @ 7.4V
• Limit angle: 200°±10°
• Connector wire gauge: #22 AWG
• Connector wire length: 200 ±5 mm
• Horn gear spline: 25T
• Control system: Pulse width modification
• Amplifier type: Digital Controller
• Operating Travel: 100° (when 1000→2000 μsec)
• Neutral position: 1500 μsec
• Dead band width: 3 ~ 5 μsec
• Rotating direction: Counterclockwise (when 1000→2000 μsec)
• Pulse width range: 800→2200 μsec
• Maximum travel: Approx 130° (when 900→2100 μsec)
