1. Product Introduction

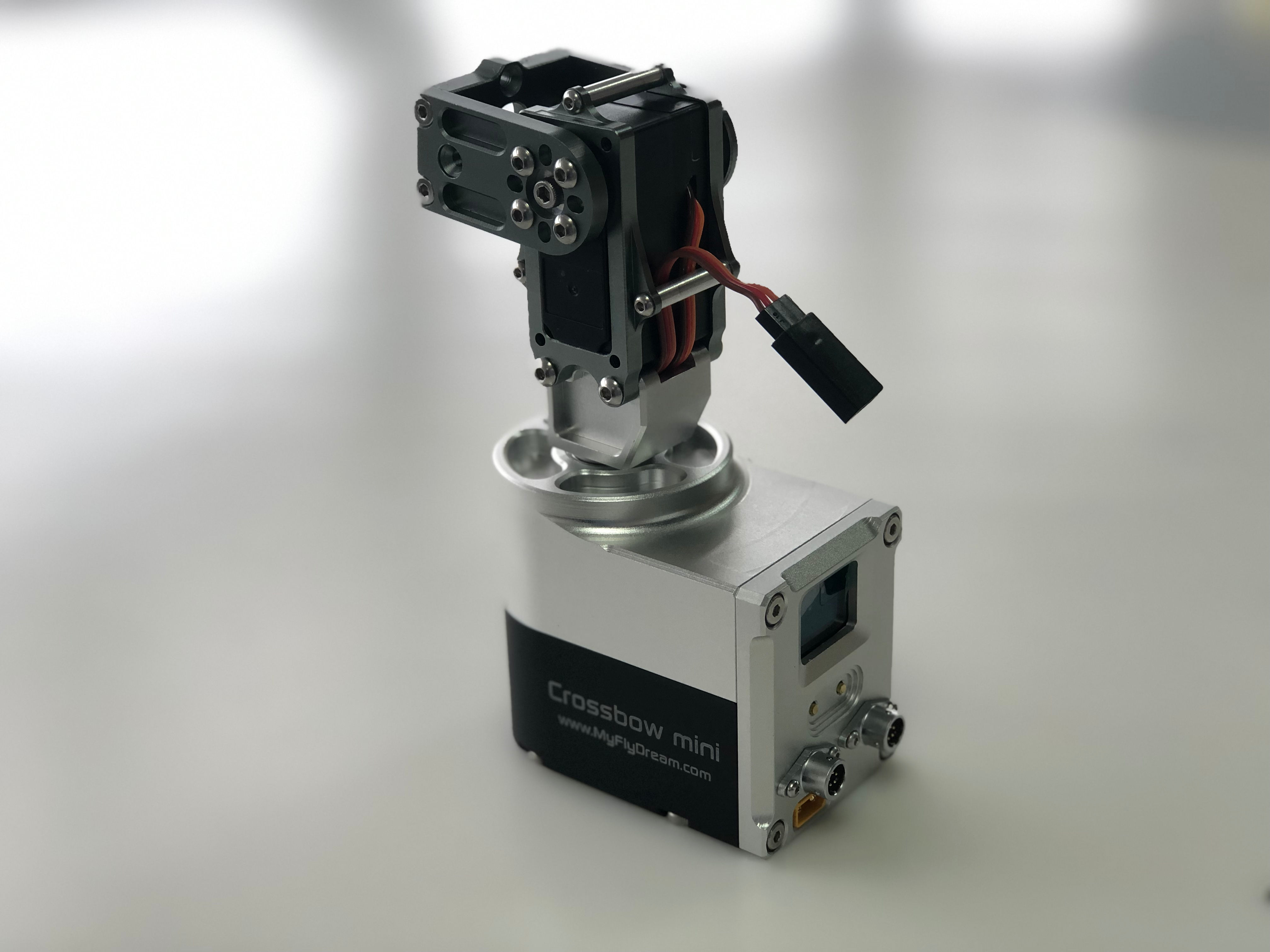

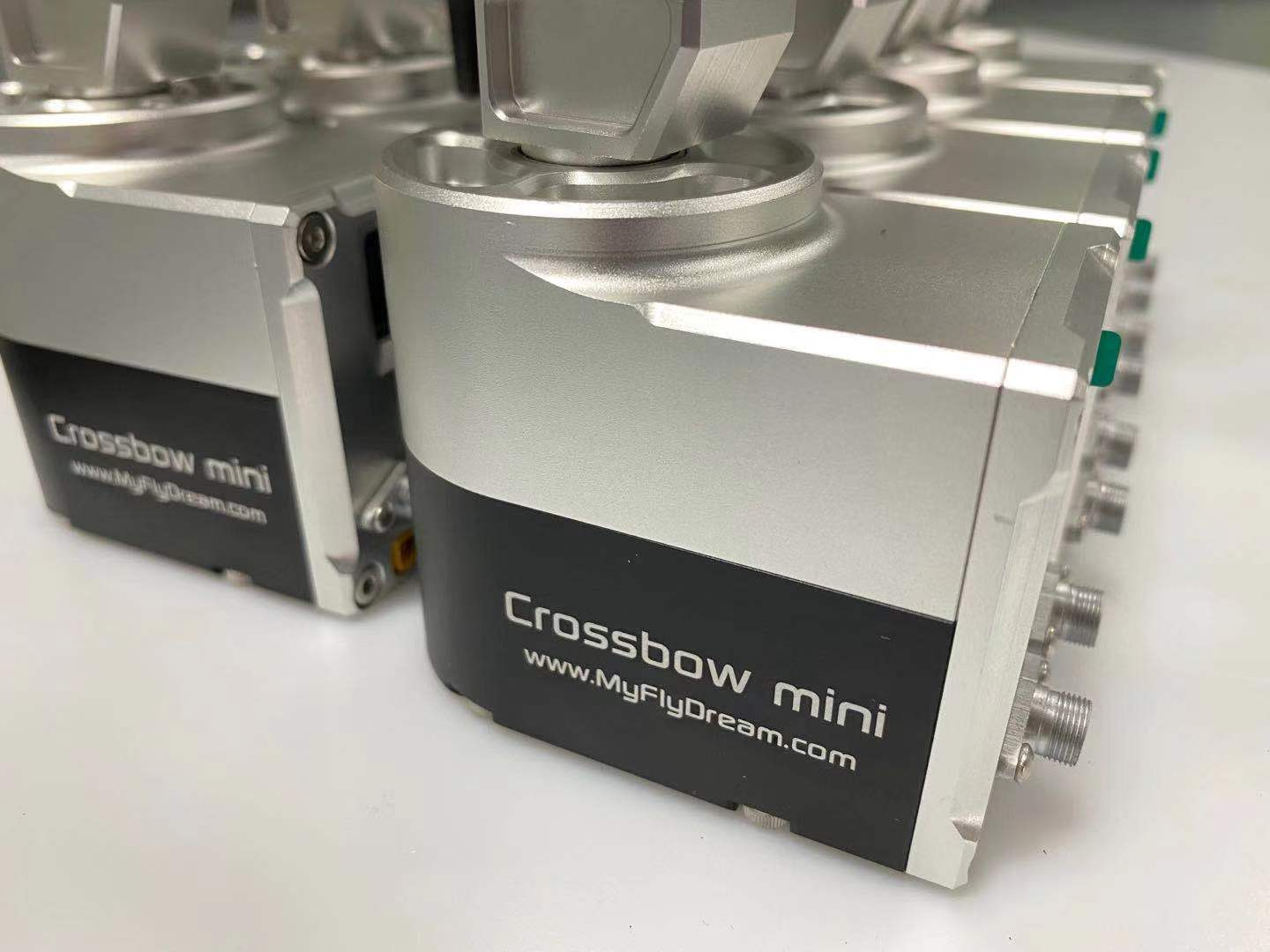

The MyflyDream Mini Crossbow Auto-Tracking Gimbal (CrossbowMini AAT) is designed for UAV antenna systems. Its design goal is to provide the UAV system with omnidirectional, high-gain signal reception. To achieve better signal reception quality, a high-gain receiving antenna is desirable. However, high-gain antennas often have a narrow effective angle. The MFD Crossbow AAT is designed to address the difficulty of maintaining an optimal transmit and receive angle with directional antennas during UAV flight. The CrossbowMini AAT requires the latitude, longitude, and altitude of the tracked target (drone). To achieve this, we offer several solutions, including:
1. Transmitting tracked target information via a wireless analog video link. The drone requires installing our TeleFlyPro tracking module or using our MFDAP/MFD Crosshair AP flight controller.
2. Some high-definition transmitters have built-in serial communication. A TeleFlyPro module can be installed on the aircraft to transmit tracking data to the Crossbow AAT via the serial port.
3. Transmitting drone information via a digital radio using the MAVLink protocol. If the user's system already includes a data radio and a flight controller that supports the MAVUnk protocol, we simply share the data radio's TX line with the Crossbow AAT to achieve tracking.
3. Custom interpretation of other proprietary protocols is supported. Please contact us for specific requirements.
CrossbowMiniAAT Main Specifications:
2. Installation and Wiring
1. The bottom of the gimbal has a standard 1A-20 tripod thread interface. Please purchase a sturdy and reliable tripod and mount the AAT on the quick-release plate, ensuring that the anti-rotation protrusion on the tripod quick-release plate is inserted into the corresponding anti-rotation hole on the bottom of the AAT.The AAT requires a 12V~16V (3S~4S) DC power supply. There is an XT30 socket on the AAT panel; please connect a compatible power source.

2. Please securely mount your antenna to the AAT's antenna mounting bracket. Avoid using antennas with ferromagnetic materials, as this may affect the functioning of the AAT's built-in compass. If possible, use non-magnetic materials such as stainless steel wire and aluminum. Connect the analog video receiver to the 3-pin socket on the back of the gimbal's tilt servo. The wiring diagram for this socket is as follows:

3. The gimbal panel features two female aviation connectors on the left and right. The left connector is used to connect an external GPS or upgrade components. The right connector outputs video signals or allows for multi-device connectivity via the CAN-BUS bus. Plug the accessory cable with a RCA connector into the right connector, as shown in the image above. The video signal from the video receiver is ultimately output via the yellow RAC video output connector for viewing on an external monitor or video goggles.

3. Preliminary Test
After verifying the wiring and ensuring the tripod is secure, power on the gimbal for testing. Under normal circumstances, the gimbal's tilt angle will return to 0 degrees (pointing toward the horizon) and the antenna will point straight ahead. The panel screen will display the following information:
Bat#/GPS alternately displays the gimbal's current power supply voltage and the number of onboard GPS satellites. Dst: Current distance from home. N/A indicates not available. Alt: Current aircraft altitude relative to home. N/A indicates not available. Azim: Current aircraft azimuth relative to home. N/A indicates not available. VLink/DLink: Current downlink signal quality (80%). Depending on whether the video or digital link is being used, the display will show Wuink or DLinkDr, indicating the azimuth angle of the gimbal base.
When both the aircraft and gimbal are powered on, the gimbal's video output port should display the onboard camera image. The on-screen WLink will indicate the signal link quality. If the Vink display shows a signal strength of 0, check that the flight control is set to VB1 encoding, V2 version technology.

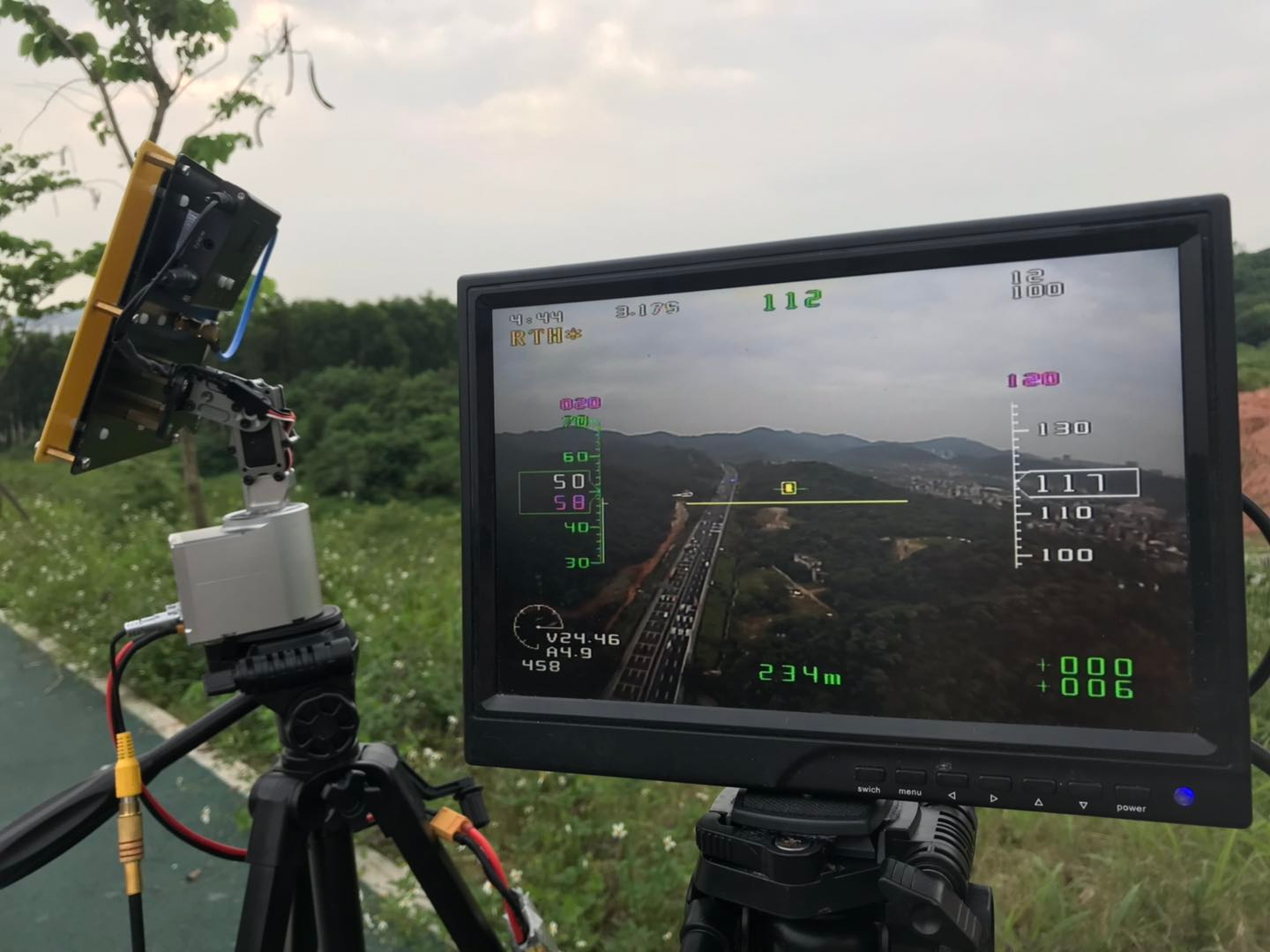

4. Field Usage Steps:
1. Power on both the aircraft and the radio. Confirm that the signal quality displayed on the radio's VLink is not 0.2. Once the number of satellites is sufficient, for example, 8 or more, the flight control will perform the Set Home operation. If communication is normal, the gimbal's small screen will display "Set Home" and initialize the home position.
3. You can also briefly press the right button to set the gimbal's home position.
4. Once the aircraft is 10 meters away, the radio will begin automatic tracking.
Gimbal Menu Operation Guide
Main Screen Button Operations:
Left Button: Long press (enter the menu)

Right-click: Short press (selects the corresponding column)
When opening a menu screen, the default column selected in the selection box is the current value of the corresponding setting parameter. If the current screen is a parameter setting screen, the default column selected when exiting the previous screen is selected.
Menu Screen:
Yaw Trimm:
Corrects the gimbal tracking deviation in degrees. Repeatedly press the right button to adjust the value, ranging from -15 to +15. Negative values adjust the tracking antenna to the left, while positive values adjust the tracking to the right.
CalCompass
After executing, the screen displays a 10-second timer. Rotate the entire AAT horizontally at least one full rotation to calibrate the internal magnetic compass.

CompassMMod: Compass Usage

0nlyPoweron: Use the magnetic compass only once, upon initial power-up

AIwaYs: Always use the magnetic compass

Never: Never use the compass, manually align north

Exit: Baudrate: Baud rate of the teach port, or the communication baud rate of an external GPS/magnetic compass

Baud Rate: 115200

5760

38400

19200

9600

4800

2400

1200

Exit

C: Calibrate the elevation angle

UP: Increase the gimbal elevation angle

DOWN: Decrease the gimbal elevation angle

REC90DEG: Record the Z-axis elevation position

RECODEG Record the gimbal's 0-degree elevation position.
SAVE
EXIT
To calibrate the gimbal's pitch angle: Use the UP/DOWN function to move the gimbal to a 90-degree elevation position, then execute REC90DEG to save this position. Then use the UP/DOWN function to move the gimbal to a 0-degree horizontal position, then execute RECODEG to save this position. Finally, select SAVE to save the entire calibration result.

HomePOS
H1:D:800: The most recent home location. 800 indicates the aircraft is 800 meters away.
H2:D:000
H3:D:000
H4:D:000
H5:D:000
AutoLoadHome
Exit
Each home option (H1-H5) will display its latitude and longitude in a cycle. Selecting AutoLoadHome will cause the gimbal to automatically load the most recent home coordinates (H1) upon startup.
Pianel0.
PlanelD: Aircraft number, used as a number for multiple gimbals communicating. Range: 1-9.
Exit
