Makeflyeasy Pioneer PDB CAN PRO 160A Power Distribution Board

Regular price $264.00

MFEPPDB-160A

  • American Express
  • Apple Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa
Specifications

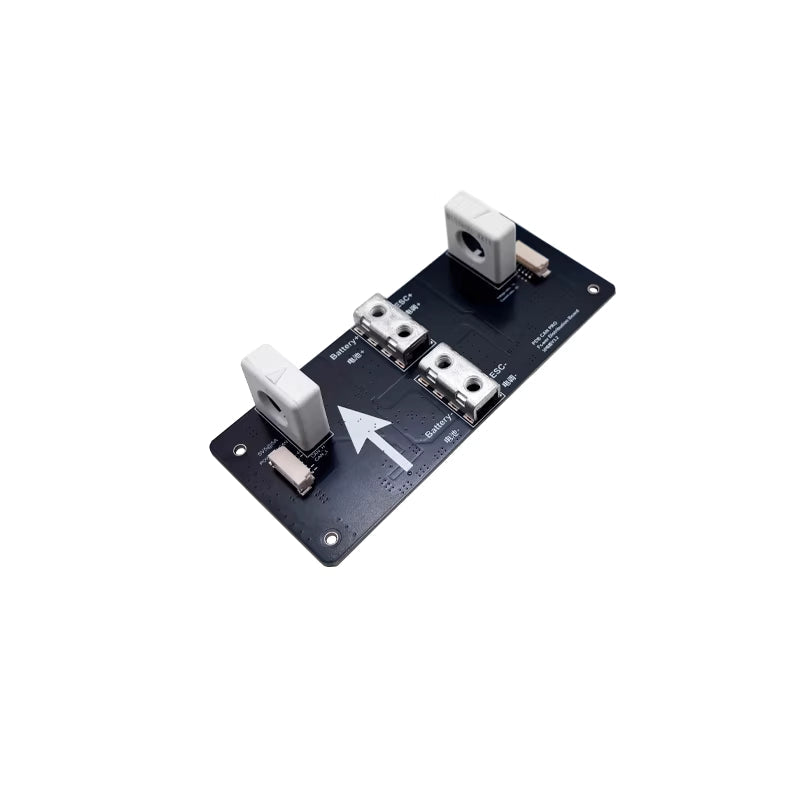

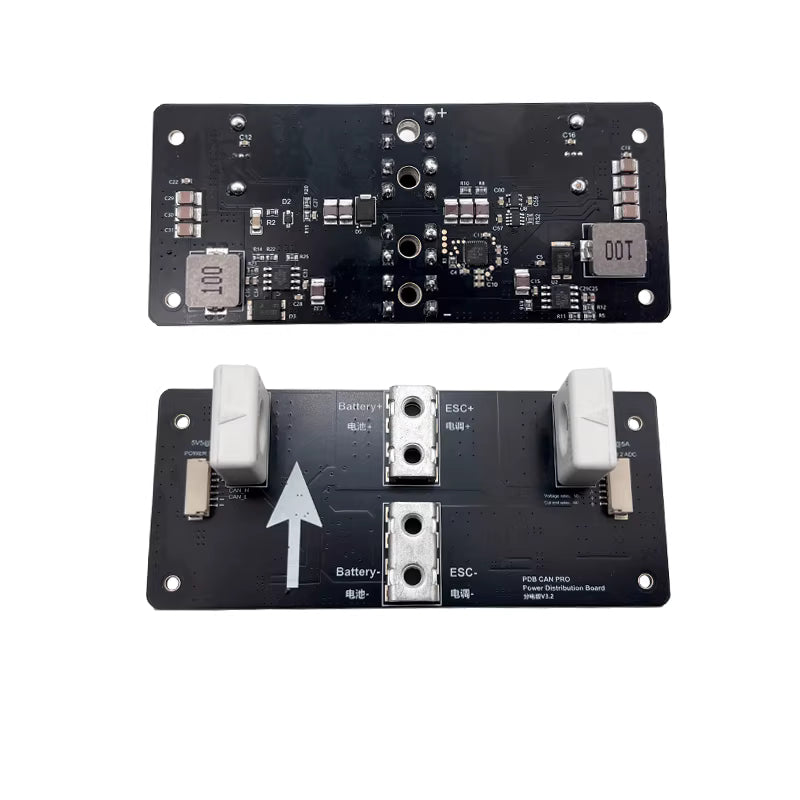

Makeflyeasy Pioneer PDB CAN PRO 160A Power Distribution Board
Details

The PDB CAN Pro is a power distribution board custom-designed for the high-current characteristics of the Pioneer VTOL aircraft. It integrates battery monitoring and flight controller power supply, optimizes the interface layout for easier installation, and utilizes the DroneCAN communication protocol for enhanced interference immunity.

Parameter Configuration - Easy to Use
Recommended for use with ArduPlane 4.4.4, the following parameters should be configured in the Mission Planner after writing to the firmware.

If the PDB module is connected to POWER1 CAN, and connected to the V6 Pro flight controller, configure the following parameters:

  • CAN_D1_PROTOCOL=1

  • CAN_PL_DRIVER=1

  • CAN_P2_DRIVER=1

  • CAN_MONITOR=8 (use in mission planner)

If the PDB module is connected to POWER2 ADC and connected to the V6 Pro flight controller, configure the following parameters:

  • BATT2_MONITOR=4 (use in mission planner)

  • BATT2_VOLT_PIN=13

  • BATT2_CURR_PIN=4

Note: DroneCAN battery voltage monitoring has been factory calibrated and does not require user calibration.


Specifications

Parameter Value
Operating Voltage 12V-60V
Operating Current 0-160 A
Monitoring Protocol DroneCAN and ADC
Battery Precision ±0.1V / ±0.2A
Battery Voltage 18V
Battery Current 60A
Power1 Output Voltage 5.5V / 5A
Operating Temperature -20°C to +100°C
Size 101×41×24 mm
Weight 44g
