KST X15-1208 755X 908 and 508 Swashplate Servos

Regular price $135.00

7121387005991

  • X15-1208 Swashplate Servo
  • X15-908 Swashplate Servo
  • X15-755X Tail Servo
  • X12-508 Swashplate Servo

  • American Express
  • Apple Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa
Specifications
KST X15-1208 755X 908 and 508 Swashplate Servos
Details

X15-1208 General Specs

  • Operation Voltage Range: 6.0 V up to 8.4 V

  • Operation Temperature Range: -10°C to +65°C

  • Working Frequency: 900–2100 µs

  • Dimensions Unit: mm

Bench Tests Reported Values

Parameter 6.0V 7.4V 8.4V
Test Voltage 6.0V 7.4V 8.4V
Speed 0.10 sec/60° @ 6.0V 0.08 sec/60° @ 7.4V 0.07 sec/60° @ 8.4V
Torque 9.8 kg·cm @ 6.0V 12 kg·cm @ 7.4V 13.5 kg·cm @ 8.4V

General Data

  • Motor Type: Coreless Motor

  • Potentiometer Type: Potentiometer Sensor

  • Case Material: Aluminum Alloy (Note: labeled as "Cear Material" in the image)

  • Weight: 40 g

  • Gear Material: Steel Gears

  • Horn Gear Spline: 25T

  • Size: 35.5 × 15 × 32.5 mm

  • Pulse Width / Position (-50° / Center / +50°): 1000 µs / 1500 µs / 2000 µs

X15-755X Specifications

Parameter Value / Details
Model Number X15-755X
Operating Voltage Range DC 6.0V – 8.4V
Working Frequency 760 µs / 560 Hz
Speed (sec/60°) 0.06 / 0.05 / 0.04 (at 6.0V / 7.4V / 8.4V)
Torque (kg·cm) 7.2 / 9.0 / 10.2 (at 6.0V / 7.4V / 8.4V)
Case Dimensions 35.5 × 15 × 32.5 ± 0.2 mm
Weight 40 ± 10% g
  • Dimensions Unit: mm

X15-908 Specifications

Parameter Value / Details
Model Number X15-908
Operating Voltage Range DC 6.0V – 8.4V
Operating Temperature Range -10°C to +65°C
Speed (sec/60°) 0.10 / 0.09 / 0.08 (at 6.0V / 7.4V / 8.4V)
Torque (kg·cm) 6.5 / 8.0 / 9.2 (at 6.0V / 7.4V / 8.4V)
Case Dimensions 35.5 × 15 × 32.5 ± 0.2 mm
Weight 40 ± 10% g
  • Dimensions Unit: mm



X15-908 Specifications

Parameter Value / Details
Model Number X15-908
Operating Voltage Range DC 6.0V – 8.4V
Operating Temperature Range -10°C to +65°C
Speed (sec/60°) 0.10 / 0.09 / 0.08 (at 6.0V / 7.4V / 8.4V)
Torque (kg·cm) 6.5 / 8.0 / 9.2 (at 6.0V / 7.4V / 8.4V)
Case Dimensions 35.5 × 15 × 32.5 ± 0.2 mm
Weight 40 ± 10% g
  • Dimensions Unit: mm

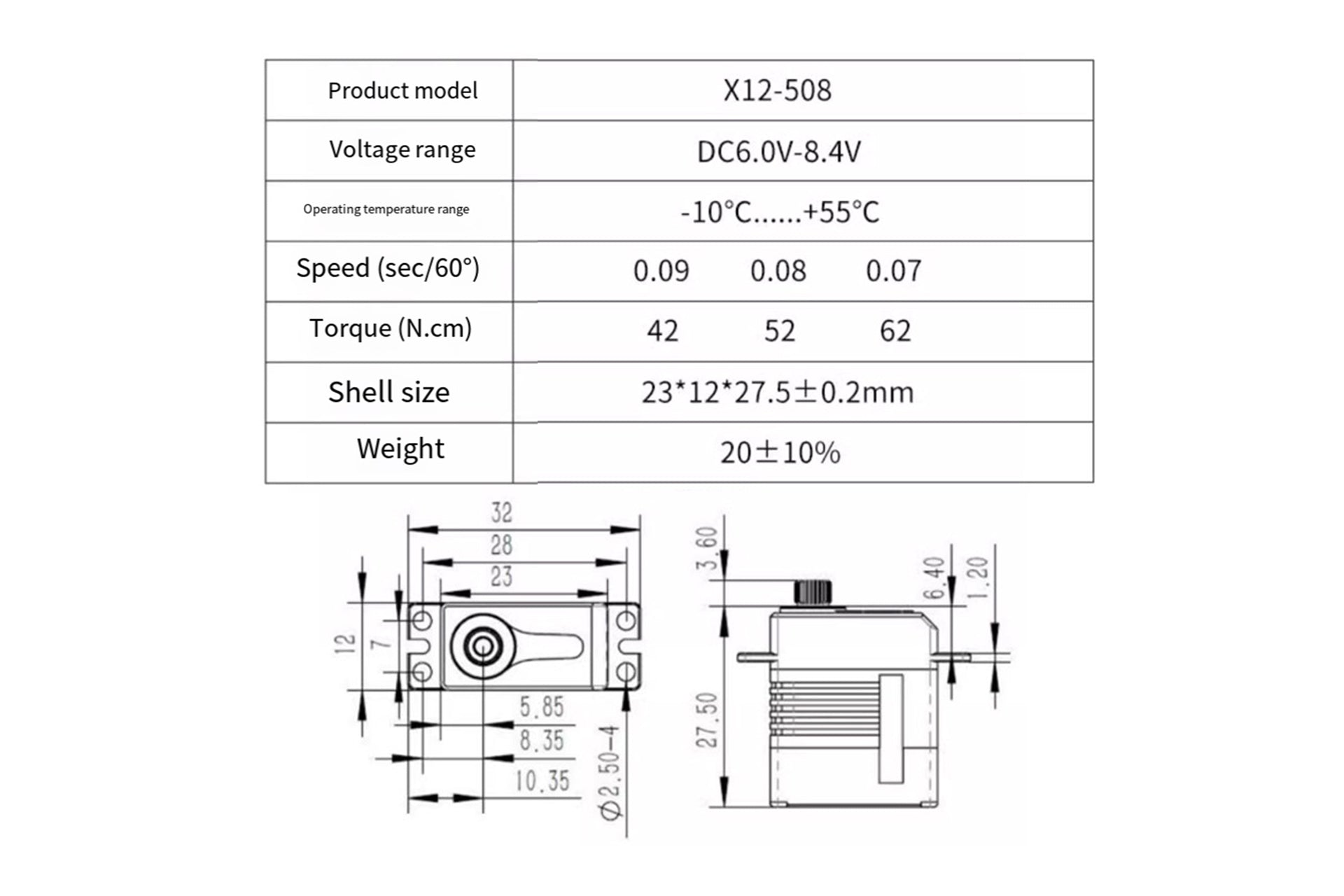

X12-508 Specifications

Parameter Value / Details
Model Number X12-508
Operating Voltage Range DC 6.0V – 8.4V
Operating Temperature Range -10°C to +55°C
Speed (sec/60°) 0.09 / 0.08 / 0.07 (at 6.0V / 7.4V / 8.4V)
Torque (N·cm) 42 / 52 / 62 (at 6.0V / 7.4V / 8.4V)
Case Dimensions 23 × 12 × 27.5 ± 0.2 mm
Weight 20 ± 10% g
  • Dimensions Unit: mm



X12-508 Specifications

Parameter Value / Details
Model Number X12-508
Operating Voltage Range DC 6.0V – 8.4V
Operating Temperature Range -10°C to +55°C
Speed (sec/60°) 0.09 / 0.08 / 0.07 (at 6.0V / 7.4V / 8.4V)
Torque (N·cm) 42 / 52 / 62 (at 6.0V / 7.4V / 8.4V)
Case Dimensions 23 × 12 × 27.5 ± 0.2 mm
Weight 20 ± 10% g
  • Dimensions Unit: mm
