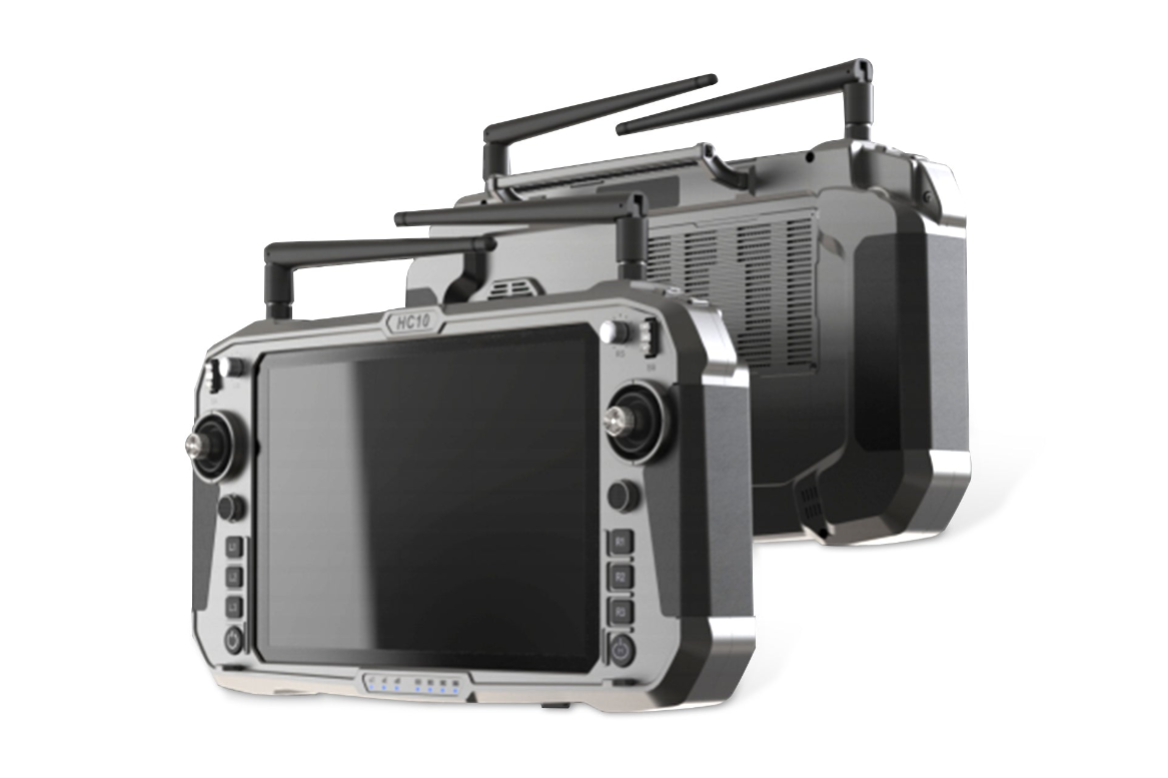

The HC10 is a Windows-based, single-screen handheld ground station with integrated CNC control. It features an industrial-grade PC motherboard powered by an Intel 17-7500U processor, a 10.1-inch, 1920*1200 resolution, and a sunlight-readable display with 1300 nit brightness. It also includes a built-in 15,000mAh imported battery pack, delivering up to six hours of battery life. Equipped with PD3.0 60W fast charging technology, the HC10 eliminates the need for battery life. The HC10 supports a built-in HA series 10-30 km image transmission link or third-party image transmission links via a flight plug. It enables simultaneous device remote control, gimbal control, real-time image and data transmission, mission planning and execution, and other functions. It also supports data acquisition protocols for pole and key channels, supporting user development.
The HC10 is suitable for unmanned control products such as drones, robot dogs, unmanned vehicles, unmanned surface vehicles, industrial robots, and large-scale machinery.
Works in 800MHz, 1.4GHz, and 2.4GHz frequency bands: can provide stable data transmission at a distance of 3~30km according to different versions and environments. Strong anti-interference ability, delay ≤300ms
| Technical Parameters | |
| Physical Channel | 25 ports (2 industrial Hall effect main joysticks, 2 auxiliary joysticks, 9 buttons, 4 three-position switches, 2 knobs, 2 scroll wheels) |
| External Interface | 2 USB 3.0, 1 USB 2.0, 1 HDMI out, 2 LANs, SIM card, 1 audio port |
| Remote Control Function | Independent dual SBUS outputs |
| Aviation Plug Port | 1B 12-core (1 LAN, 2 SUBS out, 2 R232) |
| 1B 4-core (1 LAN, 2 SUBS out OUT/IN, 2 x R232 (optional) | |
| External Link | Can be used with an external HA series video transmission link or a third-party video transmission link |
| Product Dimensions | 354mm (L) * 188mm (W) * 47mm (H) (excluding antennas) |
| Product Quality | 1950g |
| Operating Temperature | -20°C to +60°C |
| Protection Features | IP53 |
| Product Selection | HC10NI (Seamless) |
| Ground Terminal (Built-in) | HC10-HA12-3km (Ground-to-Ground) |
| HC10-HA12-15km (Ground-to-Air) | |
| Operating System | HC10-HA12-30km (Ground-to-Ground) |
| Processor CPU | HC10-HA12-30km (Ground-to-Air) |
| Display | HC10-HA13-15km (Ground-to-Air) |
| Touch Screen | External adapter required for distances over 50km |
| Memory | Windows 10 standard (Linux supported) |
| Storage | Intel i7 7500U standard (Intel i5 10210U optional) |
| Network | 10.1-inch 1920 x 1200 resolution 1300 nits (sunlight-readable, higher brightness customizable) |
| Battery Capacity | 10-point capacitive industrial touchscreen with stylus support |
| Flight Life | 16GB of DDR4 standard (32GB customizable) |
| Charging Port | 512GB of standard storage (1TB customizable) |
| Network | Wi-Fi, Bluetooth (4G, GPS optional) |
| Battery capacity | 15000mAh 12.6V |
| Battery life | Full charge in approximately 5 hours (excluding built-in image transmission power supply) |
| Charging port | Type-C 60W fast charging (full in approximately 3 hours) |
Product Information
10.1-inch, Windows 10 i7 7500U, 16GB RAM + 512GB HDD, 1300 brightness
