MFD 5.8G high gain Maple Leaf 20dB antenna AAT antenna

Regular price $65.00

MFDMATZ

  • Internal thread needle
  • Internal thread hole

  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • JCB
  • Maestro
  • Mastercard
  • PayPal
  • Union Pay
  • Visa
Specifications
MFD 5.8G high gain Maple Leaf 20dB antenna AAT antenna
Details

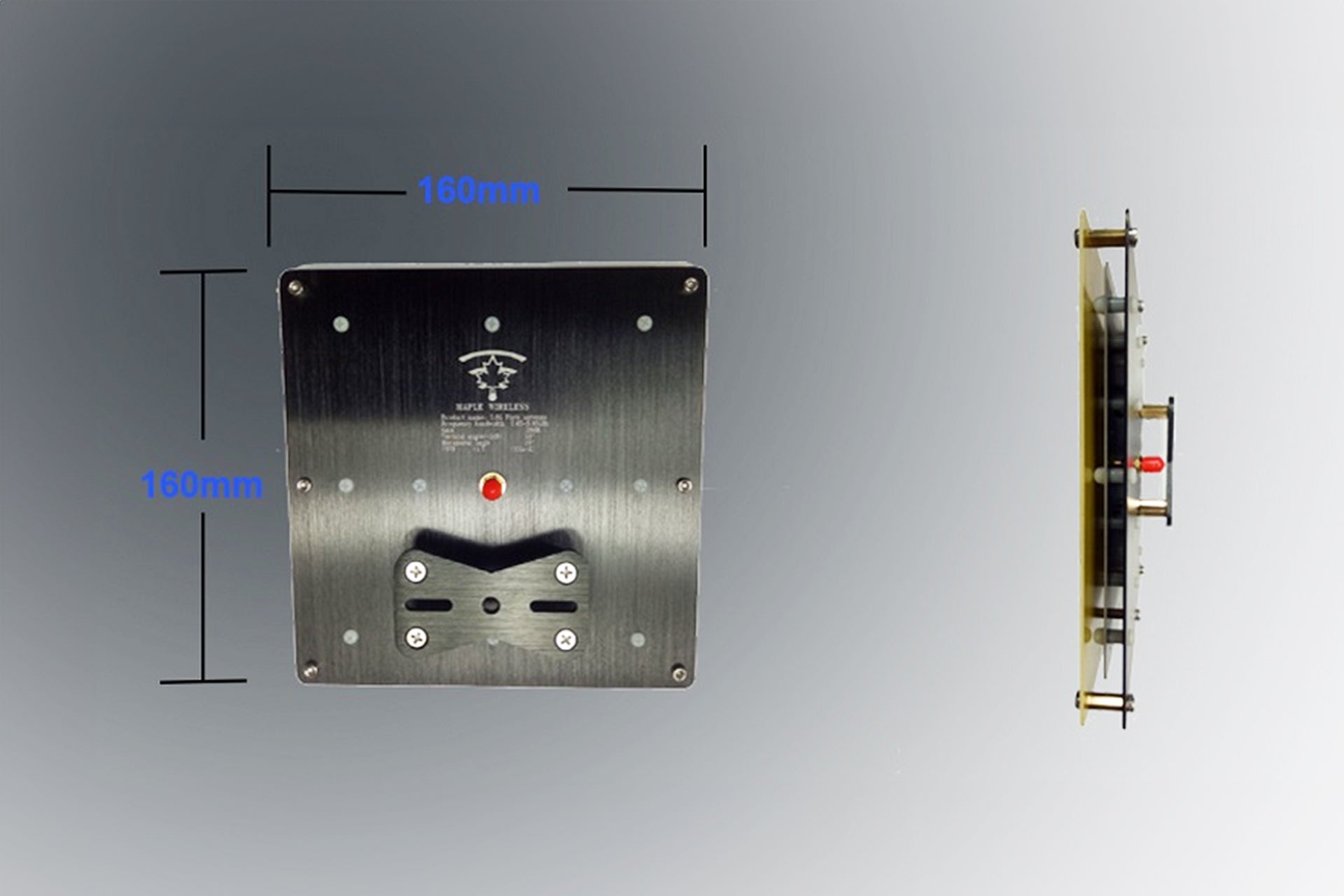

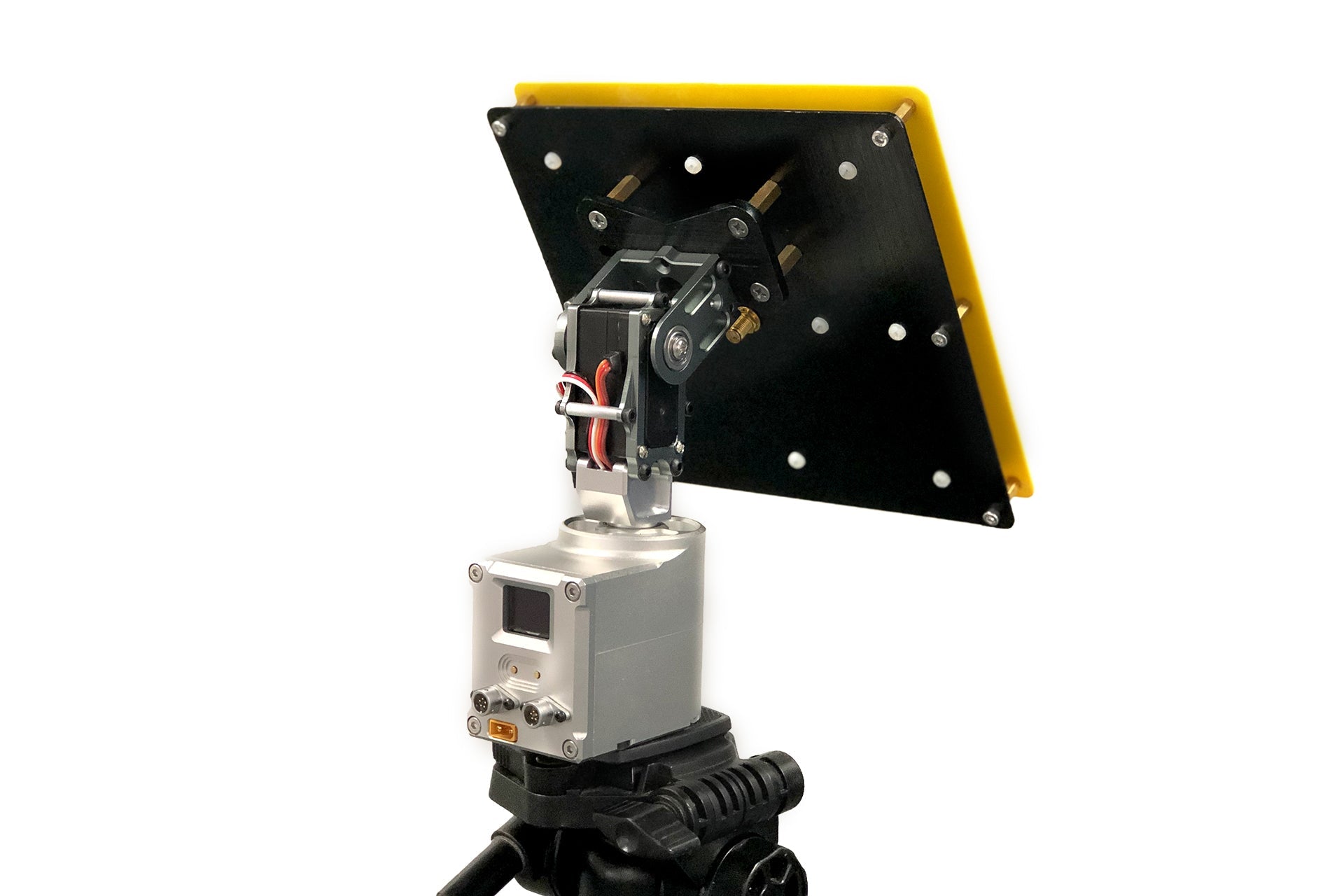

Operating frequency: 5.7-5.95GHz, gain: 20dB, half-power angle: 16 degrees, capable of both AAT tracking and manual tracking, user experience: 23dB more powerful than a large flat panel. The antenna measures 160*160*20mm, making it compact and portable, reducing AAT load and increasing automatic tracking accuracy and efficiency.

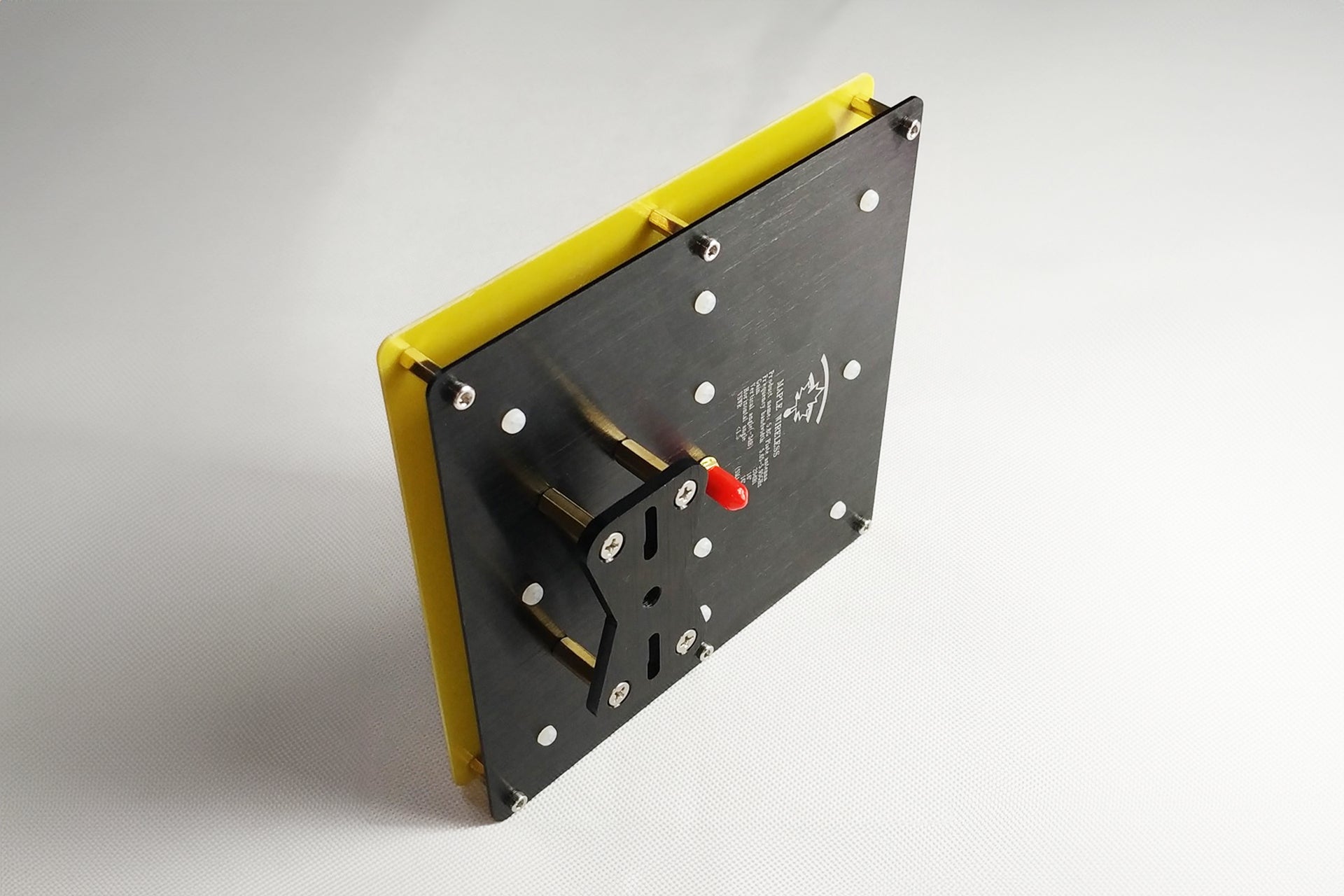

This antenna is suitable for experienced users; beginners should consider it with caution. Our 14dB flat panel is more than adequate for typical range! Actual tests show a 1W image transmission of 50km, which is not the limit. Even a budget-friendly 832-class image transmitter can provide high-quality images over 10km. The antenna panel is made of yellow epoxy resin, which is durable and aesthetically pleasing. Minor scratches may occur.

20dBi Directional Antenna Product Specifications
Electrical Specifications
Frequency Range (MHz) 5650~5950
Input Impedance (Ω) 50
VSWR <1.5
Gain (dBi) 20
Half-Power Beamwidth 16° H-plane 16° E-plane
Front-to-Front Ratio (dB) >25
Power Capacity (W) 10
Polarization Vertical polarization
Interface SMA
ESD Protection DC grounding
Ambient Temperature (°C) -40~+60
Mechanical Specifications
Packaging Dimensions (mm) 215*205*55
Antenna Dimensions (mm) 160*160*15
Gross Weight (kg) 0.5
Net Weight (g) 300
