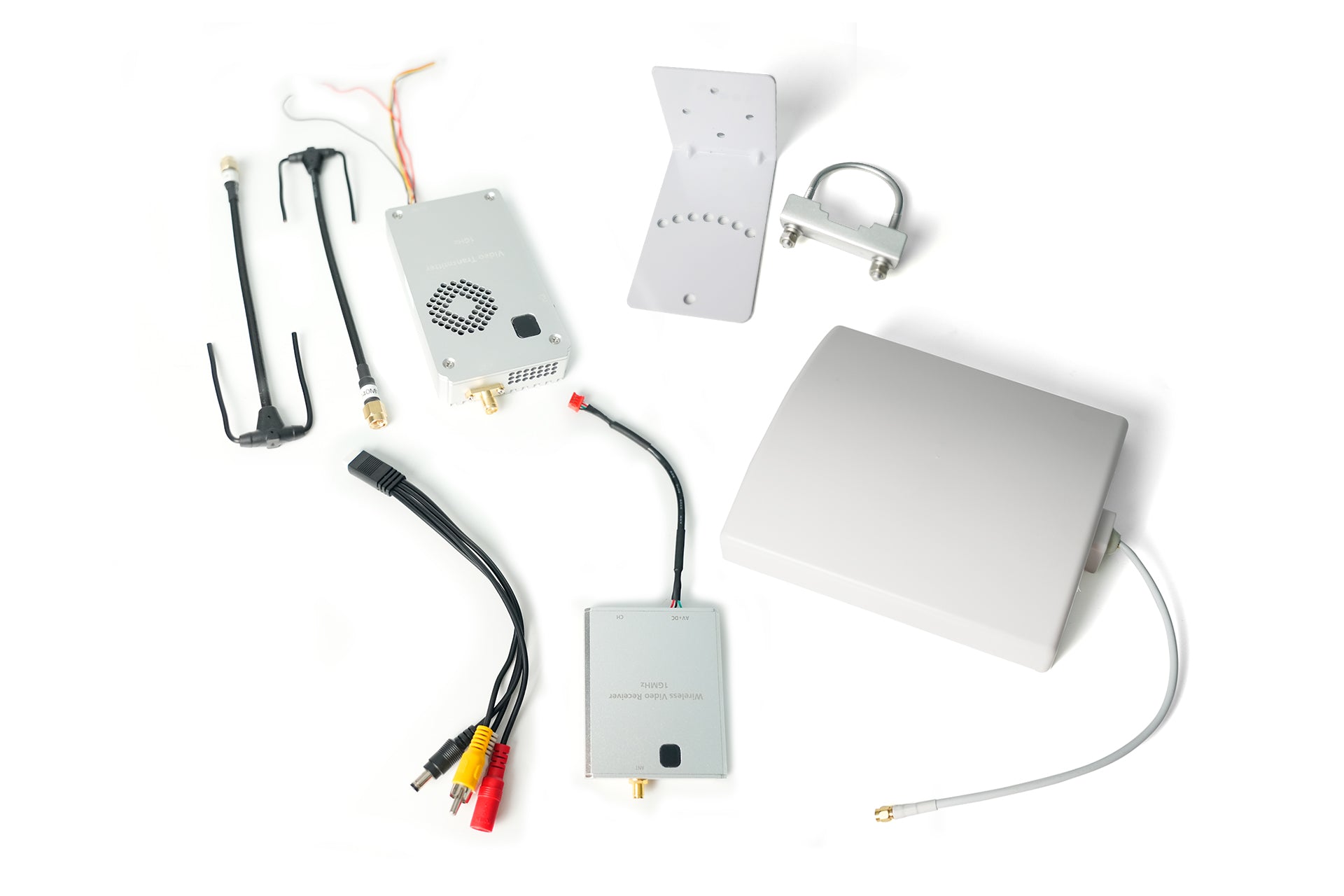

1.2 GHz 8W 100 km Long-Range Video Transmitter (VTX) & Receiver (VRX) - Product Overview, Specs & Guide

Short summary: The 1.2 GHz 8W VTX/VRX set is a high-power analog video link designed for long-range UAV/FPV, remote CCTV, and experimental applications. This guide explains the technical specs, real-world expectations, use cases, and practical tips to integrate it successfully and safely.

1. Introduction

In the world of long-range UAV operations, remote monitoring, and FPV, a reliable video link is essential. The 1.2 GHz 8W 100 km VTX/VRX set targets users who need extended analog video transmission range. The device is intended for line-of-sight (LOS) deployments and comes with flexible frequency options, robust power handling, and a compact design for easy integration.

2. Key Specifications & Technical Features

3. Strengths & Advantages

• High output power: 8 W output enables far greater range than typical hobbyist VTX modules.
• Wide frequency flexibility: Supports 300 MHz to 1.5 GHz which helps adapt to interference or regulatory constraints.
• Analog FM reliability: Low-latency, proven FM analog link for real-time monitoring and FPV.
• Compact and power-flexible: Small footprint and wide DC input (10 - 36 V) for easy integration on many UAV platforms.
• Active cooling: Fan helps sustain prolonged operation at high power.
• Simple connectivity: Composite cabling supports camera, audio, and power in a single harness.

4. Limitations & Important Considerations

Before buying or deploying this VTX/VRX set, be aware of several critical caveats:

• 100 km is theoretical: The vendor's 100 km claim assumes perfect line-of-sight, high-gain antennas, and ideal atmospheric conditions. Real-world range is almost always much lower.
• Analog video limits: FM analog has lower resolution and no encryption compared to modern digital links. Expect noise and interference at low signal levels.
• Regulatory risk: Operating high-power transmitters on certain bands may require licensing (for example, amateur radio) or may be illegal in some jurisdictions. Check local rules before use.
• Antenna dependency: Achieving long range requires proper high-gain antennas (transmitter and receiver), accurate alignment, and low-loss cabling.
• Heat and power management: 8 W operation generates heat; design your mount and power system accordingly.
• Damage risk if antenna not connected: Always attach the antenna before powering on - failure to do so can permanently damage the transmitter.

5. Typical Use Cases

1. Long-range UAV / FPV flights: Fixed-wing or long-endurance UAVs performing surveying, mapping, or search-and-rescue.
2. Remote CCTV and surveillance: Temporary or permanent remote monitoring where wired links are impractical.
3. Research and industrial projects: Robotics, remote vehicles, and experimental air/ground video systems that need robust analog feeds.
4. Wildlife observation and documentary filming: Real-time monitoring in open landscapes.
5. Experienced hobbyists: RF-savvy FPV pilots who can manage antennas, licensing, and system integration.

6. Practical Recommendations (Before You Buy)

Follow these steps to maximize success and compliance:

• Check regulations: Confirm allowed frequencies and power limits in your country. High-power operation can require a license or may be prohibited.
• Invest in antennas: Use high-gain directional ground antennas for long-range reception; consider tracking mounts for extended LOS flights.
• Plan for LOS: The best performance is achieved in unobstructed line-of-sight conditions - avoid urban canyons and mountainous terrain when planning range-critical missions.
• Use analog-compatible cameras and monitors: Since the system outputs analog composite (1 Vp-p), ensure your camera and receiver accept composite video or use appropriate encoders/decoders.
• Connect antenna first: Always attach the antenna before powering the transmitter to avoid damage.
• Manage heat: Provide ventilation and avoid enclosing the VTX in tight compartments without airflow.
• Be realistic about range: Treat 100 km as a theoretical maximum and plan missions based on conservative, tested ranges.

7. Installation & Operation Tips

Small details during installation can dramatically affect performance and longevity:

• Use low-loss coax and quality SMA connectors to reduce signal loss between VTX/VRX and antennas.
• Mount antennas to minimize vibration; use proper mechanical clamps to prevent connector fatigue under vibration.
• Keep the VTX away from sensitive electronics and GPS modules to prevent interference.
• When possible, perform a range test in a safe, legal area with telemetry and ground crew before deploying on a critical mission.
• Lock channels on the receiver during flight to prevent accidental switching.

8. Frequently Asked Questions (FAQ)

Q: Is the 100 km range realistic?

A: No - 100 km is a theoretical maximum under ideal LOS and antenna conditions. Expect much shorter ranges in real-world environments. Typically plan around 10 to 15 km for non-ideal open conditions unless you have a professionally engineered ground station and directional antennas.

Q: Do I need a license to use this transmitter?

A: Possibly. Many countries regulate high-power radio transmitters and certain frequency bands. Check local telecommunications regulations - operating an 8 W transmitter on some bands may require an amateur radio license or specific authorization.

Q: Can I use digital cameras with this VTX?

A: The VTX outputs analog composite video (FM). To use a digital camera you'll need an analog output or an encoder/converter to composite analog video - this can add complexity and latency.

Q: What antennas should I use?

A: For long-range use, directional high-gain antennas (yagi, gimbal-mounted panel, or dish when applicable) on the ground station and a suitable low-profile antenna on the aircraft provide the best results. Match antenna frequency to the operating band and ensure SMA connector compatibility.

9. Balanced Conclusion

The 1.2 GHz 8W VTX/VRX set is a powerful analog video solution for users who need extended range and are prepared to manage antennas, heat, power, and regulatory compliance. It is well-suited to experienced UAV operators, remote monitoring deployments, and research or industrial projects that value long-distance analog video links. However, it is not a plug-and-play solution for casual users - careful setup, realistic range expectations, and adherence to local radio regulations are essential.

10. Ready-to-use Checklist

• Confirm legal operation in your country (frequency and power limits).
• Buy quality high-gain ground antenna and low-loss coax.
• Ensure aircraft camera outputs analog composite (or add encoder).
• Plan for ventilation and connect antenna before powering up.
• Perform ground range tests and practice safe operation procedures.

11. Additional Resources & Next Steps

If you would like, I can:

• Convert this HTML into a Shopify post with meta title, meta description, and excerpt.
• Create a product comparison table (for example, 5.8 GHz vs 1.2 GHz, analog vs digital) to help buyers choose.
• Generate an SEO-friendly product title and a 155-160 character meta description tailored to your Shopify store.

Note: Always follow local laws and safety guidelines when operating high-power radio equipment. This article is informational and not legal advice.
