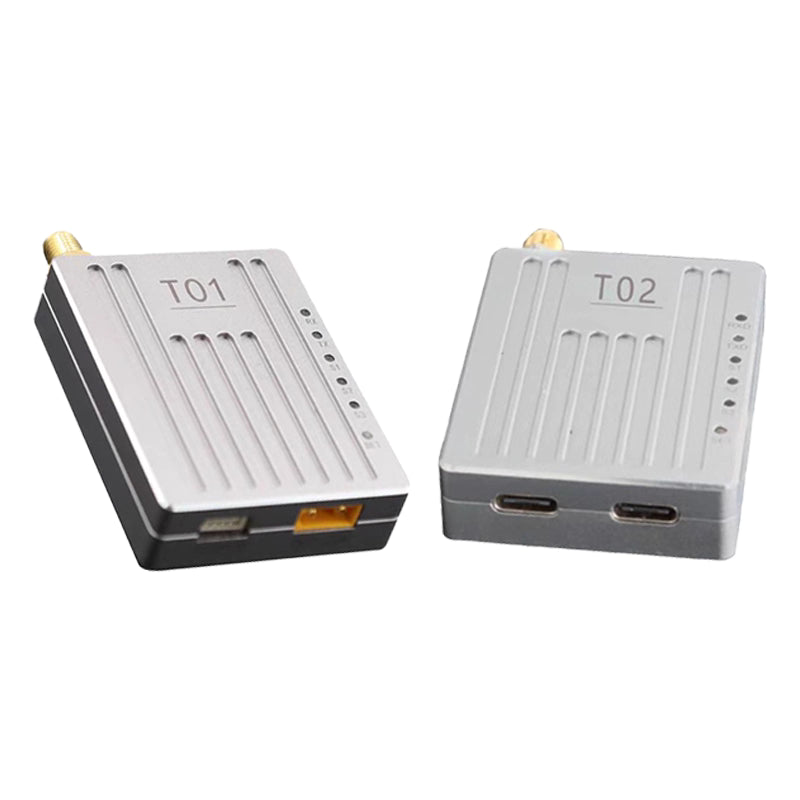

UAVSSS T900-MINI Series T01/T02 Frequency Hopping UAV Data Transmission Radio

Introduction

In the advanced world of unmanned aerial vehicle (UAV) operations, reliable data transmission between the aircraft and the ground control station is critical. Whether you are using your UAV for inspection, surveillance, monitoring, mapping or agricultural work, maintaining a strong, secure link is essential. That is where the UAVSSS T900-MINI Series comes into play. Specifically, the T900-MINI T01 and T900-MINI T02 models are compact, high-integration data radios designed for UAV applications with frequency-hopping spread spectrum (FHSS) technology.

As more enterprises and professional drone operators demand longer range, higher reliability and better integration, the T900-MINI series stands out by offering up to 60 km in optimal conditions, AES-256 encryption, support for point-to-point and point-to-multipoint (and mesh) modes, and ultra-small form factors.

Key Features & Specifications

Frequency Band & Transmission Mode

Operating frequency: 902-928 MHz
Spread-spectrum mode: FHSS (Frequency Hopping Spread Spectrum)
Modulation (for T01): 2FSK

Encryption & Security

Data encryption: AES-256
Error detection: 16-bit CRC, ARQ, Reed-Solomon error correction

Output Power, Range & Throughput

Transmit power: 1 W (30 dBm)
Range: Up to 60 km (ideal conditions)
Data rate: Up to 276.4 kbps
Serial baud rate: Up to 921.6 kbps
Receiving sensitivity: -106 dBm @ 276 kbps

Power & Physical Characteristics

Voltage: DC 7 - 26 V
Power consumption: < 10 W
Dimensions: 53 x 40 x 13 mm
Weight: 43.6 g (T01), 41.1 g (T02)
Operating temperature: -40 °C to +70 °C

Interfaces & Connectivity

Antenna interface: SMA
T01: GH1.25-4PIN (data), XT30 (power)
T02: USB Type-C (power and data)

Operating Modes

Point-to-point
Point-to-multipoint
Central mesh network (for T01)

Benefits and Application Scenarios

Why choose the T900-MINI Series?

Compact and lightweight design
High integration and easy installation
Long-range communication up to 60 km
Robust link with FHSS and AES-256 encryption
Support for mesh and multipoint networking
Wide operating temperature tolerance

Typical Use Cases

UAV inspection and monitoring
Agricultural UAV operations
Search and rescue and emergency response
Surveying and mapping
Multi-UAV networked operations
Security and surveillance

Choosing Between T01 and T02

T900-MINI T01 is designed for UAV-side installation with GH1.25 and XT30 connectors, ideal for embedded applications.

T900-MINI T02 features a USB Type-C interface, making it convenient for ground stations or PCs. Both models share the same RF core and range but differ mainly in interface and installation method.

Installation & Setup Tips

Antenna and RF Considerations

Use SMA antennas tuned for 902-928 MHz
Ensure line-of-sight and good clearance from obstructions
Consider a directional antenna at the ground station for long-range missions

Power & Wiring

T01: DC 7-26 V input, < 10 W power consumption
T02: USB Type-C data and power interface

Configuration & Commands

Configure via serial or USB interface
Match the baud rate with the flight controller
Enable AES-256 encryption and FHSS

Environmental and Physical Mounting

Operate safely from -40 °C to +70 °C
Mount away from high-EMI components
Use vibration-damping mounts when necessary

SEO-Friendly Keywords

To improve search ranking, include these terms naturally in your page:

UAV data transmission radio
frequency hopping UAV data link
FHSS drone telemetry module
long-range UAV communication 60 km
902-928 MHz drone radio
AES-256 encrypted UAV data link
T900-MINI T01 T02 radio

Comparative Advantages

Higher transmit power (1 W) than many alternatives
FHSS for strong anti-interference performance
Strong AES-256 encryption for secure transmission
Lightweight, compact form factor
Support for mesh and multipoint networks
Wide operating temperature range
Convenient USB Type-C ground-side interface

Example Use Case: BVLOS Infrastructure Inspection

Imagine operating a UAV for power-line inspection across long distances. By using the T900-MINI T01 on the UAV and T900-MINI T02 on the ground, you can maintain a stable FHSS link up to 60 km, ensuring reliable control and telemetry even in obstructed or high-interference environments.

Installation Checklist

Check 902-928 MHz frequency compliance in your jurisdiction
Install SMA antennas properly on UAV and ground station
Confirm power supply and wiring are correct
Set baud rate, encryption, and FHSS parameters
Test link quality and antenna alignment before missions
Inspect and maintain regularly

FAQ

Q1: What is the maximum range?
A1: Up to 60 km under ideal conditions. Actual range depends on antennas, line-of-sight, terrain, and interference.
Q2: Can it transmit video?
A2: It is suitable for telemetry and low-bitrate video streams. For HD real-time video, higher-bandwidth links are recommended.
Q3: Is 902-928 MHz legal worldwide?
A3: Regulations vary by country. Verify local RF rules before operation.
Q4: Does it support mesh networks?
A4: Yes. The T01 supports mesh and multipoint modes.
Q5: What is the difference between T01 and T02?
A5: Mainly the interface: T01 is UAV-side (GH1.25/XT30), T02 uses USB Type-C for ground-side convenience.

Conclusion

The UAVSSS T900-MINI Series T01/T02 Frequency Hopping UAV Data Transmission Radio delivers an excellent balance of size, power, range, and security. Its FHSS technology, AES-256 encryption, and mesh networking capabilities make it ideal for professional UAV missions such as mapping, inspection, and surveillance.

For anyone seeking a secure, long-range UAV communication module, the T900-MINI Series is a dependable, high-performance solution that enhances both flight reliability and data security.
